Manufacturer no.:
222075

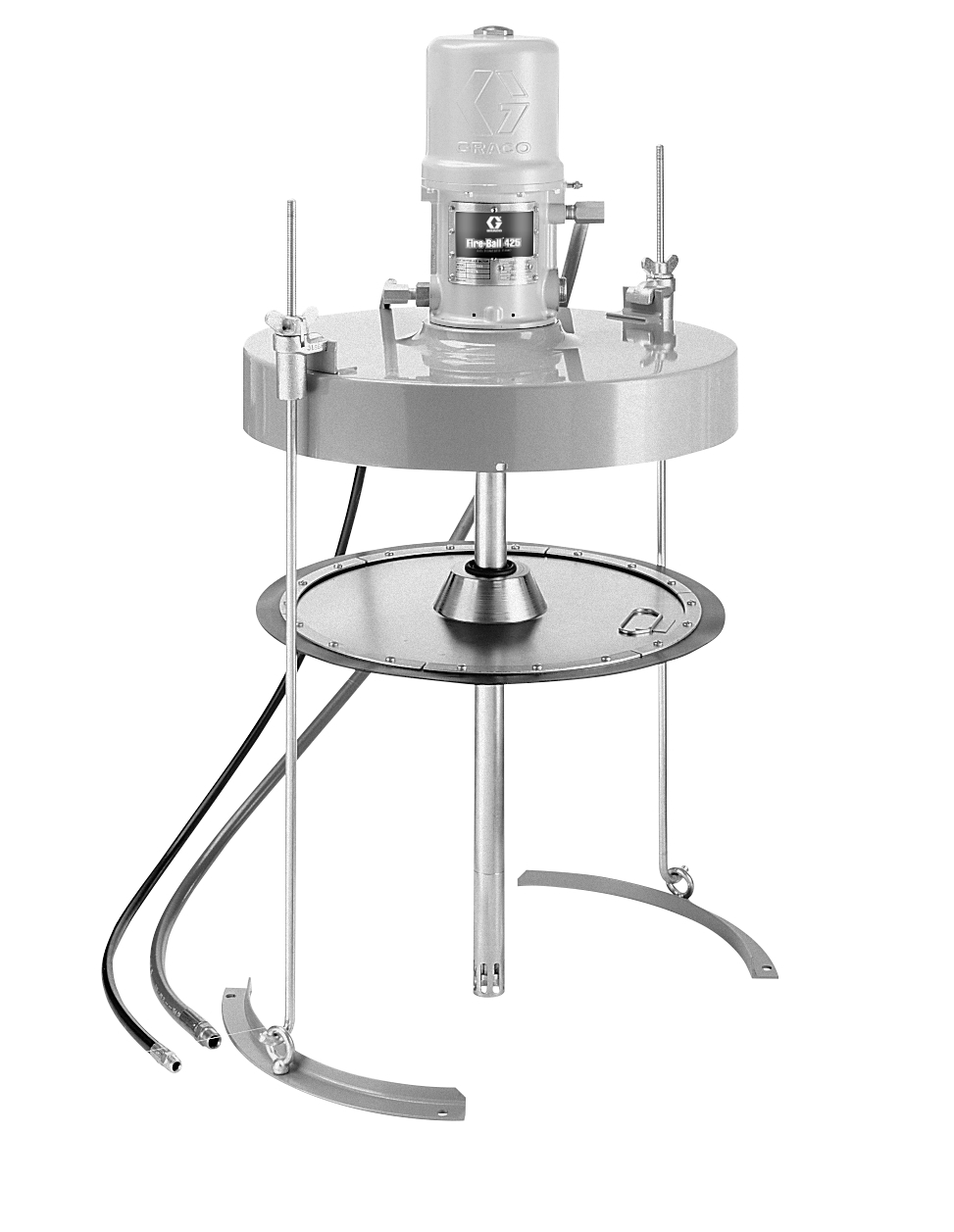

Fire-Ball® 425 Series 50:1 54 kg (120 lb.) grease pump - complete lubrication vehicle unit
€7,140.00*
Ready for shipping in 5-8 days
Also interesting
Product information
The Fire-Ball 425 has a large air motor to deliver the power you need for long pipework and dosing larger quantities. An ideal choice for applications where multiple dosing operations take place simultaneously.
The Fire-Ball 425 pump is the first choice for your most demanding high-volume applications
- Robust casting - Unsurpassed robust air motor housing made from extremely strong cast aluminium
- Fewer repairs - Fewer moving parts in the air motor assembly means less downtime and therefore lower repair costs
- Excellent sealing - Plastic disc valves provide a positive seal even in environments with polluted "dirty" air and ensure a long service life with low maintenance requirements
- Longer seal life - The inline pump design with aligned air motor pistons and material pistons ensures maximum seal life
- Corrosion-resistant - Corrosion resistance and long service life of important components thanks to salt bath nitriding, nickel plating, chrome plating and the use of stainless steel and aluminium
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Compatible material: | Fat |
| Energy type: | Pneumatic |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Includes: | Fireball 50:1 425 pump, hose and fitting set, cover, follower plate, hold-down set |
| Material inlet type: | Slotted |
| Material outlet size (cm): | 9,525 |
| Material outlet size (mm): | 9,525 |
| Material outlet thread type: | NPT |
| Maximum operating pressure (MPa): | 27.6 |
| Maximum operating pressure (kPa): | 27600 |
| Maximum operating pressure (kg/cm²): | 527.3 |
| Maximum operating pressure (psi): | 4000 |
| Model: | Fire Ball |
| Motor type: | Pneumatic |
| Mounting position: | Lorry mount |
| Permissible operating air pressure (psi): | 150 |
| Permissible operating pressure (bar): | 276 |
| Series: | 425 |
| Size of the material outlet opening (inches): | 3/8 |
| Transmission ratio of the pump: | 50:1 |
| Type: | Piston pump system |
| Wetted material: | Steel, leather |
More information
- Product number: 1035291
- Manufacturer: Graco
- EAN: 00633955084292
- Weight: 39.39 kg
- Length: 30 mm
- Width: 30 mm
- Height: 30 mm
Technical details
Operating specifications
| UPC product | 633955084292 |
|---|---|
| Division | LED |
| Price Block | 2 4 0 |
| Country of origin | US |
| Unit of measurement | EA |
Technical
| Fluid outlet size (cm) | 0. 9525 |
|---|---|
| Fluid outlet size (mm) | 9. 525 |
| Fluid outlet thread gender | Female |
| Includes | Fireball 50:1 425 pump, hose and fitting kit, cover, follow plate, hold-down kit |
| Maximum working pressure (bar) | 2 76 |
| Maximum working pressure (kg/cm²) | 527. 3 |
| Maximum working pressure (kPa) | 2 7 600 |
| Maximum working pressure (psi) | 4 0 00 |
| Series | 425 |
| Air inlet size (in) | 1/2 |
| Air inlet thread gender | Female |
| Fluid inlet type | Slotted |
| Maximum Air Working Pressure (psi) | 1 5 0 |
| Pump Weight (lb) | 37 |
| Maximum Working Pressure (MPa) | 27. 6 |
| Model | Fire -Ball |
| Container Size (lb) | 400 |
