Manufacturer no.: CM7C2F

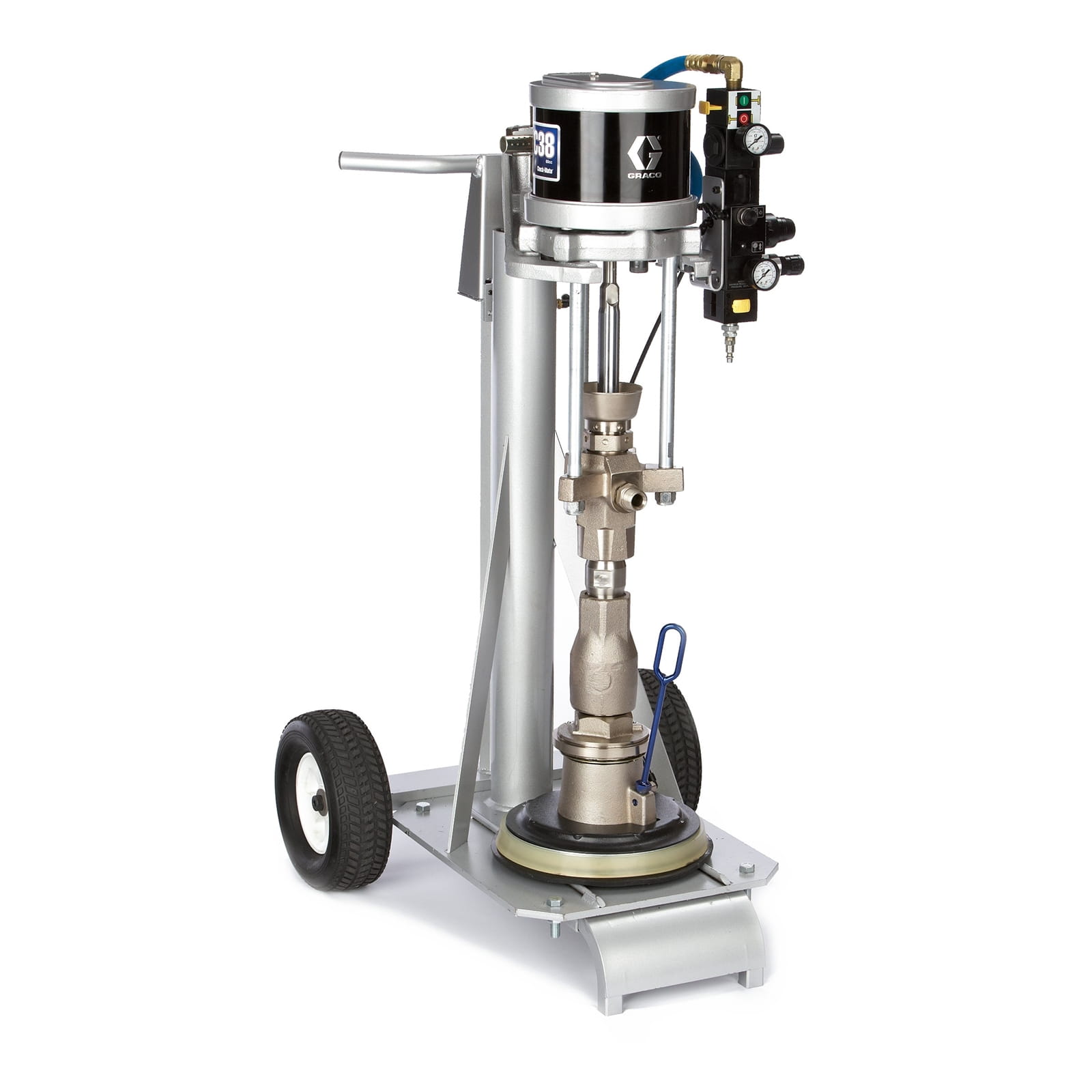

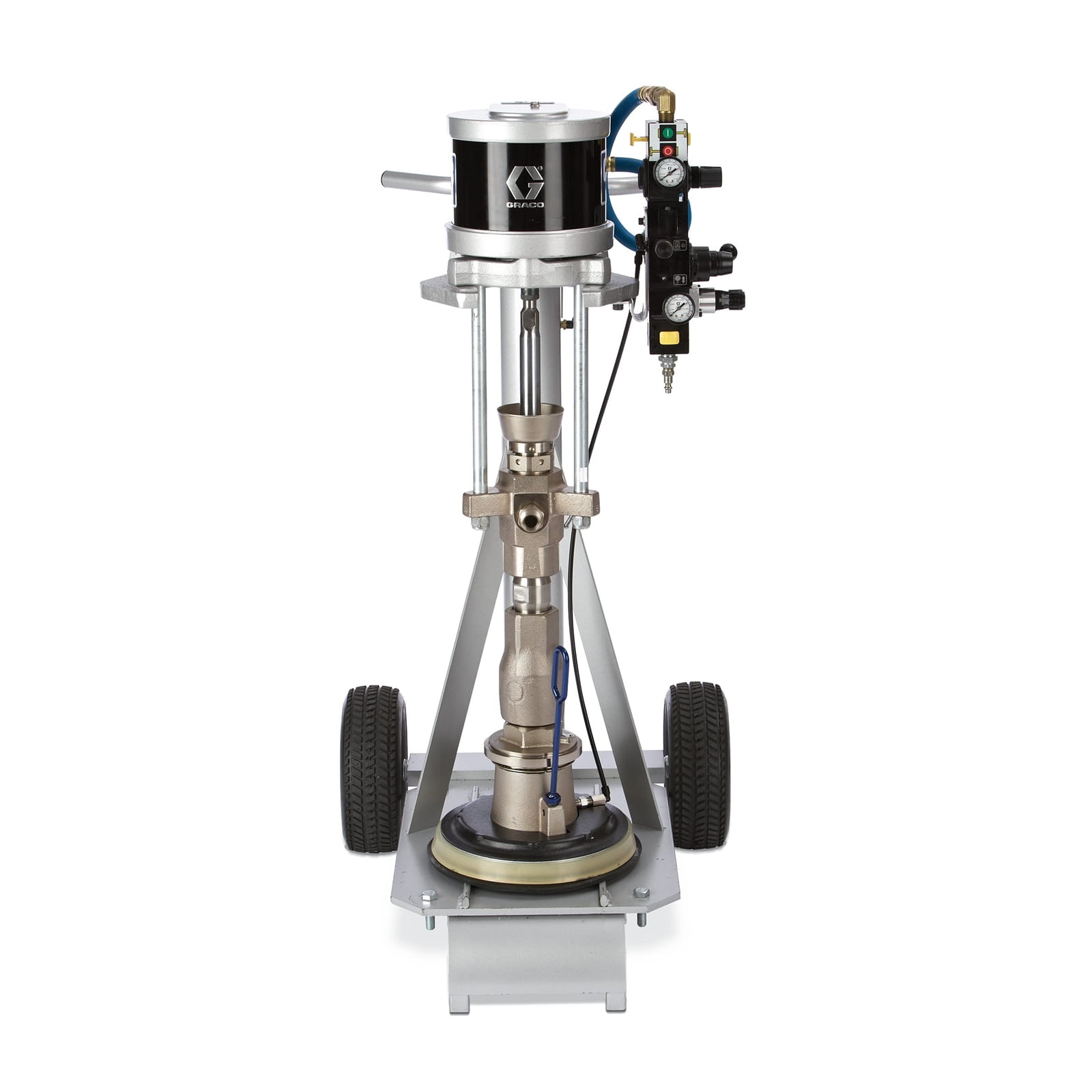

Feeder, Check-Mate, 20:1, S/S, Severe Duty, 3" S20c Ram, Integrated Air Controls, 20L S/S flat plates, PTFE single wiper

€11,079.50*

% €14,772.66* (25% saved)

Prices include VAT plus shipping costs

€9,310.50*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco feeding systems reliably deliver single-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to the measuring and dosing systems.

Bulk unloader for ambient sealants, adhesives, and other medium- to high-viscosity materials.

5-gallon (20-litre) pail size units offer the same proven technologies as the larger systems, but with smaller NXT air motors.
Graco S20c - Same as S20, but with cart
The industry's first controllers give you instant, critical information at your fingertips
Quick bucket placement
Plate scrapers can be replaced in seconds
Quick-disconnect couplers, turnbuckle mounting and cartridge packings allow pump service without removing the pump from the ram
High-quality, durable parts reduce maintenance time and maximise uptime

Ambient/hot-melting/hot-melting:	Not heated
Application:	Bonding, sealing, sealing, potting, encapsulation, injection molding, spraying, liquid conveying, unloading, underfilling
Container type:	Bucket
Energy type:	Pneumatic
Material container volume (litres):	20
Material follower plate:	Normal steel
Maximum air supply pressure (bar):	8.62
Maximum air supply pressure (kPa):	862
Maximum air supply pressure (kg/cm²):	8.79
Maximum delivery rate (L/min):	3.4
Maximum height (cm):	228.6
Maximum height (m):	2.29
Maximum height (mm):	2286
Maximum inlet air pressure (psi):	125
Maximum material pressure (bar):	137.9
Maximum material pressure (kPa):	13790
Maximum material pressure (psi):	2000
Maximum operating pressure (MPa):	13.8
Maximum operating pressure (kPa):	13800
Maximum operating pressure (psi):	2000
Maximum operating temperature (°C):	49
Minimum height (cm):	165.1
Minimum height (m):	1.65
Minimum height (mm):	1651
Model:	Check Mate
Permissible operating pressure (bar):	138
Pump type:	Suction piston
Series:	S20c
Total depth (cm):	66.1
Total depth (mm):	661
Total width (cm):	56.2
Total width (mm):	562
Transmission ratio of the pump:	20:1
Type:	Feeding device
Wetted material:	Stainless Steel, Acetal, Chrome Plating, Electroless Nickel Plating, UHMWPE, Carbon Filled PTFE, PTFE, Mild Steel, Electroless Nickel Plating, Polyurethane, PTFE Coated Nitrile, Polyethylene, Nitrile

More information

Product number: 1030856
Manufacturer: Graco
EAN: 00633955498853
Weight: 124.122 kg
Length: 960 mm
Width: 780 mm
Height: 1320 mm

Technical details

Specifications

Operating specifications

UPC product	633955498853
Division	IPD
Price Block	2 22
Country of Origin	US
Unit	EA
Height	132 CM
Length	96 CM
Width	78 cm
Volume	. 98841 m³
Shipping weight	124.122 KG
