Manufacturer no.: 77X015

Electric Dyna-Star® HF 24 VDC, self-contained pump for 55 kg (120 lb). CONTAINER

€5,650.60*

% €6,278.44* (10% saved)

Prices include VAT plus shipping costs

€4,748.40*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Heavy-duty machinery and equipment in the mining industry require fresh lubricant to protect critical pivot points from contamination. An automatic lubrication system from Graco ensures the ongoing lubrication of important components and keeps them operational without costly material downtime.

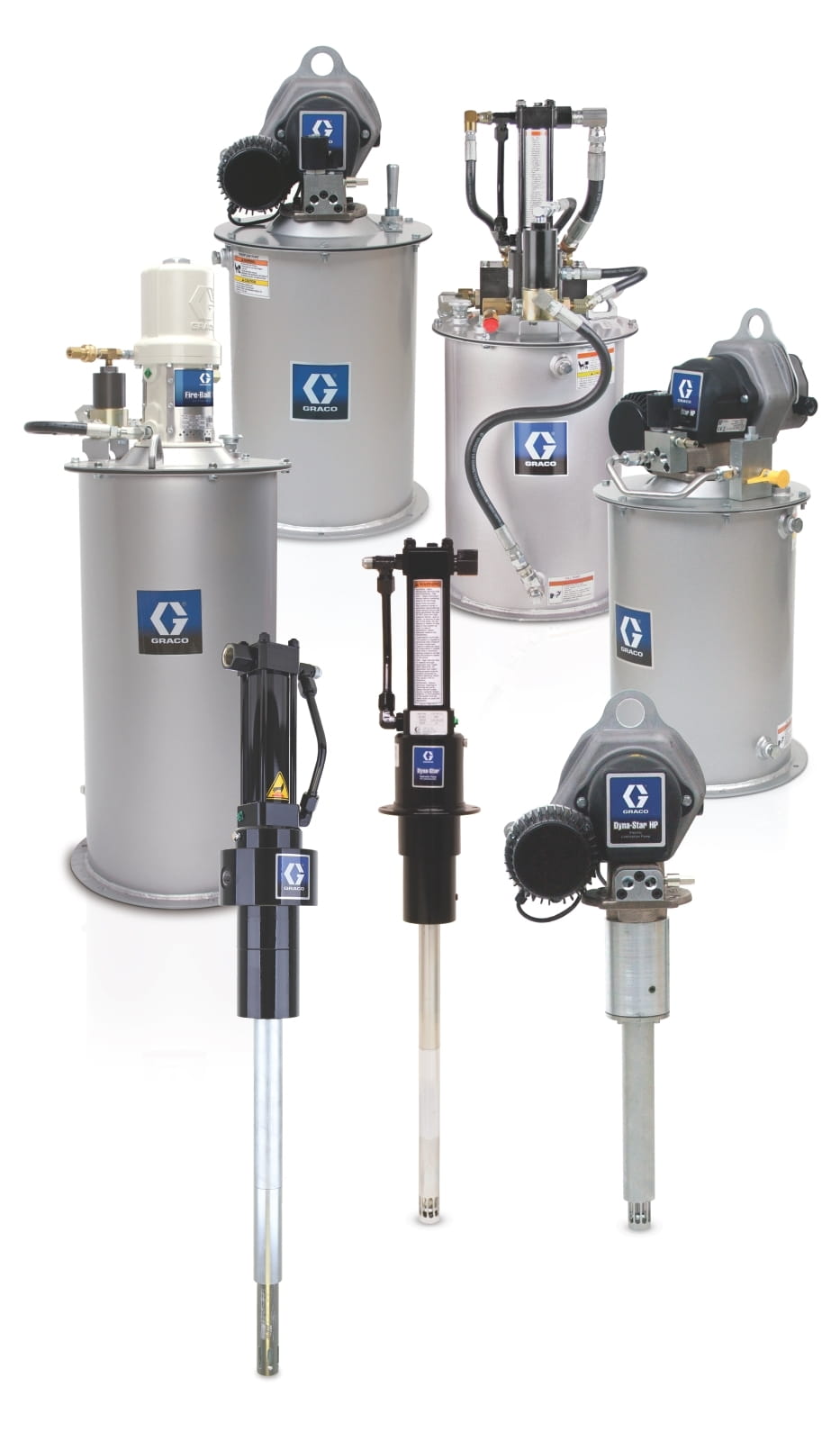

Electric pumps for heavy-duty automatic lubrication and transfer systems.

Graco Advantage Drive™ - heavy duty gear drive - lubricated for life
Pipe-in-pipe venting and fill path - instant conversion of a drum system to a single-line manifold system
Motor control - speed and AMP control
Cold weather performance (-40 ºC)
More efficient seal replacement

Artikel Art:	Membranpumpe
Behälter Größe:	55 Liter
Spannungs Stufe:	24 VDC

More information

Product number: 1031834
Manufacturer: Graco
EAN: 00633955191235
Weight: 29.8 kg
Length: 1270 mm
Width: 370 mm
Height: 370 mm

Technical details

Specifications

Operating specifications

UPC product	633955191235
Division	LED
Price Block	128
Country of origin	US
Unit	EA
Height	37 CM
Length	127 cm
Width	37 cm
Volume	. 174 m³
Shipping weight	29.8 KG

Technical

Fluid outlet size (mm)	9. 5250
Includes	HF pump, 90 lb/120 lb (41 kg/55 kg) reservoir
Maximum working pressure (bar)	2 41
Maximum working pressure (kPa)	2 4 100
Maximum working pressure (psi)	3 5 00
Model	Dyna-Star
Voltage (V dc)	2 4
IP rating	IP69K
Maximum voltage (V DC)	32
Minimum voltage (V DC)	18
Overall height (cm)	92. 7
Overall height (in)	36. 5
Overall height (mm)	927
Overall width (cm)	27. 9
Overall width (in)	1 1
Overall width (mm)	2 79
Weight (kg)	24. 95
Maximum working pressure (MPa)	24. 1
