Manufacturer no.:
77X105

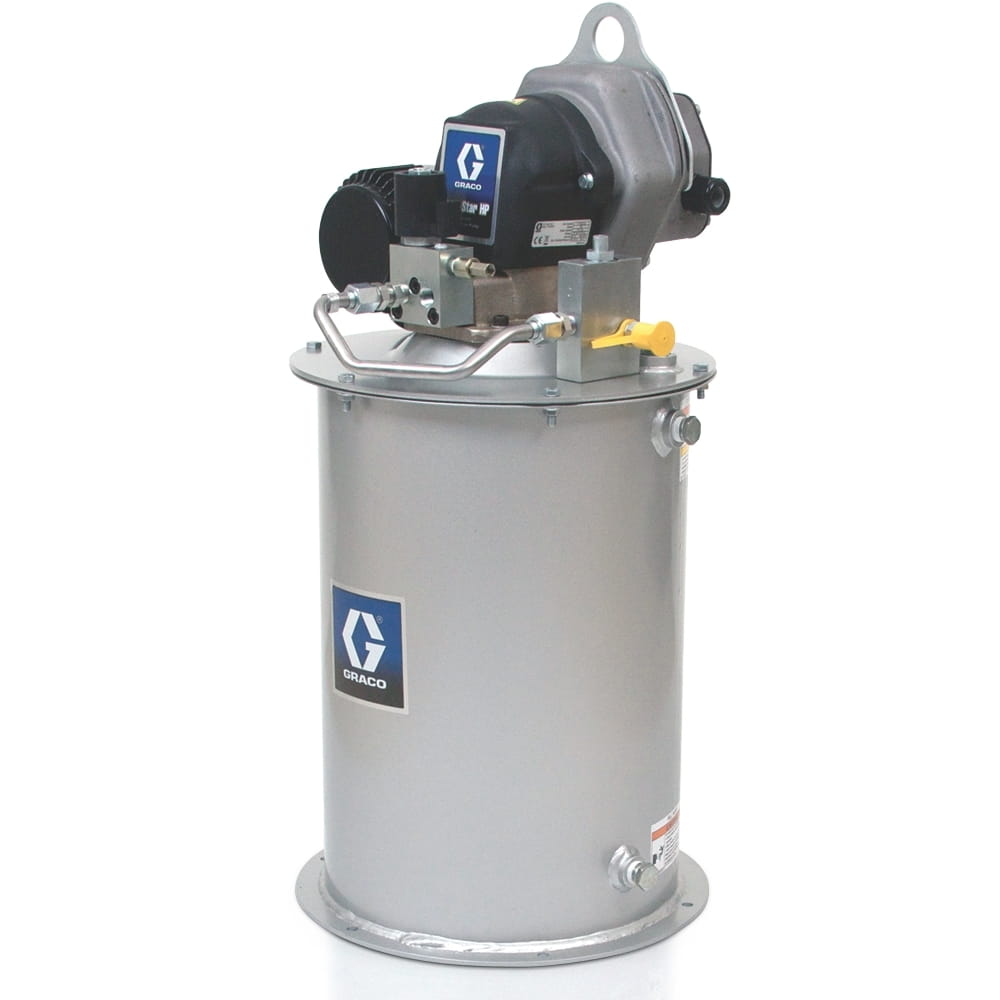

Dyna-Star® HP 24 VDC electric inlet manifold module with pump, pipe-in-pipe, relief valve, follower plate, LL kit, cover, 90 lb (41 kg) tank. CONTAINER
€9,196.68*
% €10,218.53* (10% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The Dyna-Star high-pressure pump and HF 24VDC electric lubrication pump complement our Dyna-Star 10:1 hydraulic pump and Fire-Ball 300 50:1 pneumatic pump offerings. For heavy-duty mining equipment, rely on the Dyna-star electric pump to deliver fresh lubricant to protect critical pivot points from contamination. An automatic lubrication system from Graco keeps critical components lubricated and operational without costly downtime.
For use in mining, grinding and crushing, heavy-duty construction, well servicing and industrial applications.
- To keep contaminants out, the high-quality hardened steel helical gears are lubricated and sealed for life. This ensures longer and more consistent performance.
- Motor settings such as power supply, motor speed, current control and signal reception can be customised to ensure that the pump is a perfect fit for your application and external conditions.
- Mechanical automatic filling stop during filling and a separately mounted remote filling ensure clean and efficient refilling
- The relief valve is attached directly to the pump without special brackets or hoses. This compact design therefore requires fewer attachments that can wear out or break off.
- Protection class IP69K
- Built-in pressure relief valve for increased safety and a compact and efficient installation.
- Filling and unloading paths without cavitation - This guarantees simple and direct unloading and filling directly to the pump's suction pipe.
- The integrated lifting ring is designed for up to 226 kg (500 lbs).
- Strong 12 gauge steel tank, size 41 kg (90 lb).
| Air inlet size (inches): | 1/4 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | Machines in manufacturing plants, off-road vehicles |
| Compatible dosing system: | Multi-line system |
| Compatible material: | Fat |
| Energy type: | Pneumatic |
| Gender of the material outlet thread: | Internal thread |
| IP dimensioning: | IP69K |
| Material outlet size (cm): | 9,525 |
| Material outlet size (mm): | 9.5250 |
| Material outlet thread type: | NPT |
| Maximum operating pressure (MPa): | 24.1 |
| Maximum operating pressure (kPa): | 24100 |
| Maximum operating pressure (psi): | 3500 |
| Minimum cST degree (cST): | 40 |
| Model: | Dyna Star |
| Permissible operating pressure (bar): | 241 |
| Power connection type: | M12 |
| Size of the air inlet (cm): | 635 |
| Size of the air inlet (mm): | 6.35 |
| Size of the material outlet opening (inches): | 0.375 |
| Total height (cm): | 96.5 |
| Total height (mm): | 965 |
| Total width (cm): | 36.8 |
| Total width (mm): | 368 |
| Type: | Electric piston pump |
| Voltage (V dc): | 24 |
More information
- Product number: 1038613
- Manufacturer: Graco
- EAN: 00633955675995
- Weight: 62.967 kg
- Length: 600 mm
- Width: 400 mm
- Height: 1200 mm
Technical details
Operating specifications
| UPC product | 633955675995 |
|---|---|
| Division | LED |
| Price Block | 125 |
| Country of origin | US |
| Unit of measurement | EA |
| Height | 120 CM |
| Length | 60 CM |
| Width | 40 cm |
| Volume | . 288 m³ |
| Shipping weight | 62.97 KG |
Technical
| Air inlet size (in) | 1/4 |
|---|---|
| Air inlet size (mm) | 6. 35 |
| Fluid outlet size (mm) | 9. 5250 |
| Fluid outlet thread gender | Female |
| Maximum working pressure (bar) | 2 41 |
| Maximum working pressure (kPa) | 2 4 100 |
| Maximum working pressure (psi) | 3 5 00 |
| Model | Dyna-Star |
| Voltage (V DC) | 2 4 |
| IP rating | IP 6 9K |
| Minimum cST grade (cST) | 40 |
| Overall height (cm) | 96. 5 |
| Overall height (in) | 38 |
| Overall height (mm) | 965 |
| Overall width (cm) | 36. 8 |
| Overall width (in) | 14. 5 |
| Overall width (mm) | 368 |
| Maximum working pressure (MPa) | 24. 1 |
