Manufacturer no.:
26A967
Dyna-Star® 120:1 Air operated single grease pump for 55 kg (120 lb)
€10,849.23*
Ready for shipping in 5-8 days
Also interesting
Product information
Graco Dyna-Star air-driven pumps provide reliable, fast grease delivery at high back pressure in an easy-to-maintain all-in-one unit.
For use in servicing and maintaining hydraulic fracturing wellheads, servicing blow-out preventers for wells, servicing downhole valves and lubricating large wireline buckets.
- Fast flow at higher pressures - 827 bar (12,000 PSI) maximum operating pressure with 1.5 l/min flow at 586 bar (8,500 psi) back pressure.

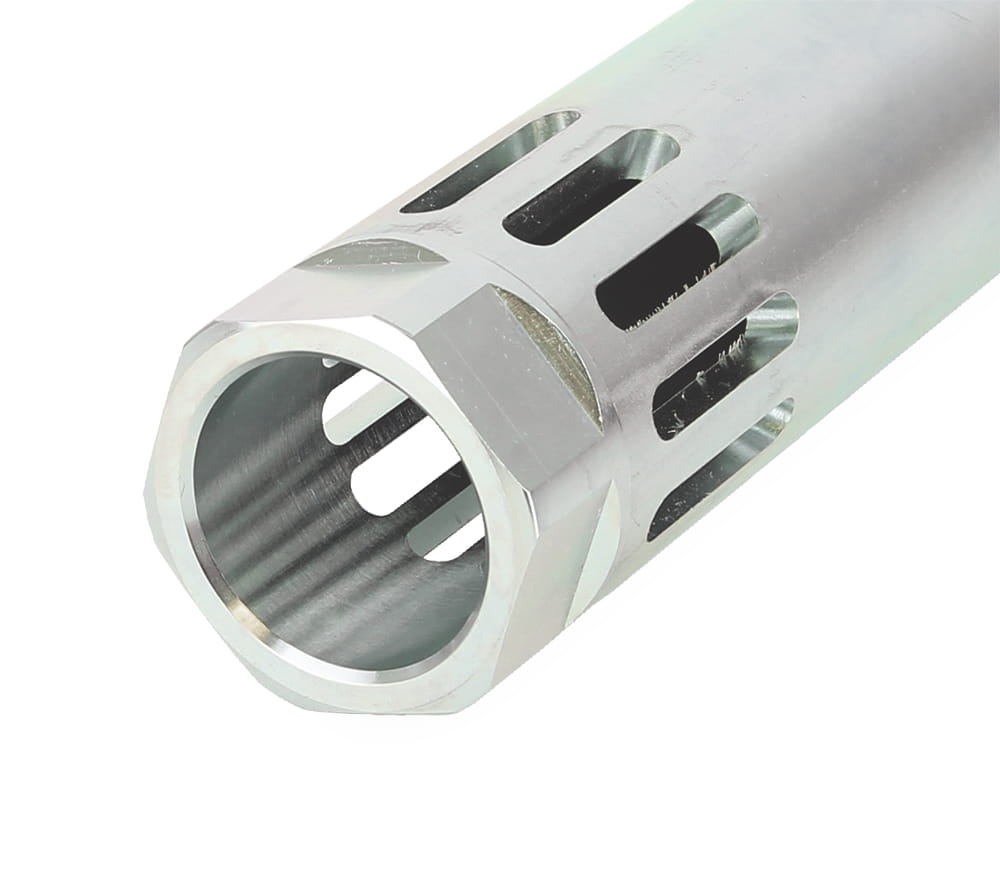

- Quick and easy seal repairs - The hexagonal high performance lower pump withstands harsh operating conditions and facilitates intuitive seal replacement.
- CE and Ex certified - ATEX Ex II 2 G Ex h IIA T4 Gb.
- The legendary Merkur air motor - The proven air valve is designed for DataTrak®.
- 100% assembled and tested in the USA.
| Air inlet size (inches): | 0.5 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | Machines in manufacturing plants, off-road vehicles |
| Authorisations: | CE;ATEX;EAC |
| Compatible material: | Fat |
| Component technology: | air engine; Shovel loading pump tube |
| Effective area of the air motor (inches): | 6 |
| Energy type: | Pneumatic |
| Gender of the air inlet thread: | Internal thread |
| Gender of the material outlet thread: | Internal thread |
| Material outlet thread type: | UNC |
| Maximum NLGI grade: | 2 |
| Maximum air inlet pressure (MPa): | 0.69 |
| Maximum air supply pressure (bar): | 6.89 |
| Maximum air supply pressure (kPa): | 689 |
| Maximum continuous double stroke rate (DH/min): | 60 |
| Maximum delivery rate (L/min): | 1.7 |
| Maximum double stroke rate (strokes/min): | 60 |
| Maximum inlet air pressure (psi): | 100 |
| Maximum intermittent double stroke rate (CPM): | 60 |
| Maximum material feed pressure (psi): | 12000 |
| Maximum number of cycles (DH/min): | 60 |
| Maximum operating pressure (MPa): | 82.7 |
| Maximum operating pressure (kPa): | 82700 |
| Maximum operating pressure (psi): | 12000 |
| Maximum operating temperature (°C): | 82 |
| Minimum air supply pressure (psi): | 40 |
| Minimum operating temperature (°C): | -30 |
| Model: | Dyna Star |
| Motor type: | Pneumatic |
| Noise pressure level, (dB(A)): | 70.5 |
| Number of outlets: | 1 |
| Number of pump elements: | 1 |
| Output per cycle (cm³): | 28 |
| Permissible material outlet pressure (bar): | 827 |
| Permissible operating pressure (bar): | 827 |
| Series: | 120:1 |
| Size of the air motor (inch): | 6 |
| Size of the material outlet opening (inches): | 13/16 |
| Sound level, (dB(A)): | 78 |
| Sub pump type: | Integrated bucket loading |
| Total height (cm): | 110.49 |
| Total height (mm): | 1104.9 |
| Transmission ratio of the pump: | 120 to 1 |
| Type: | Pneumatic piston pump |
| Weight (kg): | 59 |
| Wetted material: | Steel, stainless steel, bronze, UHMWPE, aluminum |
More information
- Product number: 1034196
- Manufacturer: Graco
- EAN: 00769946172454
- Weight: 34.019 kg
Technical details
Operating specifications
| UPC product | 769946172454 |
|---|---|
| Division | LED |
| Price Block | 126 |
| Country of Origin | US |
| Unit | EA |
| Height | 42 CM |
| Length | 145 cm |
| Width | 32.5 cm |
| Volume | . 198 m³ |
| Shipping weight | 34.02 KG |
Technical
| Air inlet size (in) | 0. 5 |
|---|---|
| Air inlet thread gender | Female |
| Air motor effective diameter (in) | 6 |
| Fluid outlet thread gender | Female |
| Maximum Air Consumption (SCFM) | 60 |
| Maximum air inlet pressure (bar) | 6. 89 |
| Maximum air inlet pressure (kPa) | 689 |
| Maximum air inlet pressure (psi) | 100 |
| Maximum continuous cycle rate (CPM) | 60 |
| Maximum Cycle Rate (CPM) | 60 |
| Maximum flow rate (L/min) | 1. 7 |
| Maximum fluid output pressure (psi) | 1 2 000 |
| Maximum intermittent cycle rate (CPM) | 60 |
| Maximum NLGI grade | 2 |
| Maximum operating temperature (°C) | 82 |
| Maximum operating temperature (°F) | 180 |
| Maximum working pressure (bar) | 827 |
| Maximum working pressure (kPa) | 82700 |
| Maximum working pressure (psi) | 1 2 000 |
| Minimum operating temperature (°C) | -30 |
| Minimum operating temperature (°F) | -30 |
| Model | Dyna-Star |
| Series | 120: 1 |
| Sound pressure level (dB(A)) | 70. 5 |
| Component Technology | Air motor; shovel-loading pump tube |
| Maximum Cycle Rate (strokes/min) | 60 |
| Maximum flow rate (ci/min) | 103. 7 |
| Number of pump elements | 1 |
| Overall height (cm) | 110. 49 |
| Overall height (in) | 43. 5 |
| Overall height (mm) | 1104. 9 |
| Weight (kg) | 59 |
| Number of outlets | 1 |
| Maximum working pressure (MPa) | 82. 7 |
| Minimum air inlet pressure (psi) | 40 |
| Air motor size (in) | 6 |
| Approvals | CE;ATEX; EAC |
| Output per cycle (cm³) | 2 8 |
| Maximum air inlet pressure (MPa) | 0. 69 |
| Lower Type | Integrated shovel loading |
| maximum fluid output pressure bar | 827 |
| piston travel in | 4. 75 |
| reservoir size (kg) | 55 |
