Manufacturer no.:
BB1011
beschichtpunkt - ÜBERMUTTER IG 36x2 Connection 19mm STEEL
€15.45*
Scope of delivery
1 Stück
Also interesting
Product information

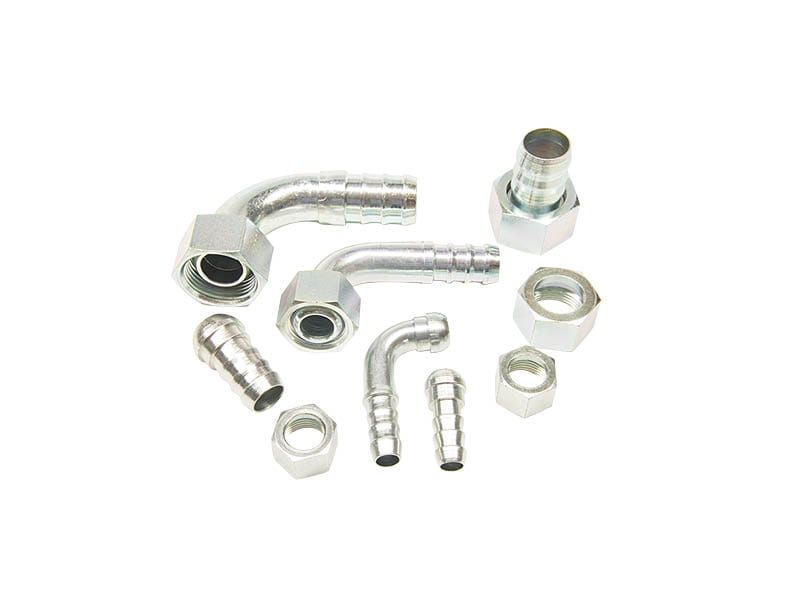

Steel transition nuts – various threads and connection sizes
These robust transition nuts made of galvanised steel have been specially developed for industrial applications where reliable, durable and precisely fitting threaded connections are required. They are available in various internal thread sizes and connection diameters – in both straight and 90° versions.
Product features:
- Material: Galvanised steel – robust, durable, corrosion-resistant
- Internal thread: IG 36x2, IG 1", IG 3/4", IG 1/2", IG 20x2, IG 26x1.25
- Connection diameter: 13 mm, 19 mm, 25 mm
- Versions: straight or 90° angled
- Area of application: Mechanical engineering, compressed air systems, paint shops, plant engineering, chemical industry
Available variants:
| Design | Internal thread (IG) | Connection Ø | Design | Material |
|---|---|---|---|---|
| Reducing nut IG 36x2 | 36x2 | 25 mm | straight | Steel |
| Union nut IG 36x2 | 36x2 | 19 mm | straight | Steel |
| Union nut IG 36x2 | 36x2 | 13 mm | straight | Steel |
| Union nut IG 36x2 | 36x2 | 25 mm | 90 | Steel |
| Union nut IG 36x2 | 36x2 | 19 mm | 90 | Steel |
| Union nut IG 36x2 | 36x2 | 13 mm | 90 | Steel |
| Union nut, internal thread 1" | 1 | 25 mm | straight | Steel |
| Union nut, female thread 1" | 1 | 25 mm | 90 | Steel |
| Union nut, female thread 3/4" | 3/4 | 19 mm | straight | Steel |
| Union nut, internal thread 3/4" | 3/4 | 13 mm | straight | Steel |
| Union nut, internal thread 3/4" | 3/4 | 19 mm | 90 | Steel |
| Union nut, internal thread 3/4" | 3/4 | 13 mm | 90 | Steel |
| Union nut, internal thread 26x1.25 | 26x1.25 | 19 mm | straight | Steel |
| Union nut IG 26x1.25 | 26x1.25 | 19 mm | 90 | Steel |
| Union nut IG 26x1.25 | 26x1.25 | 13 mm | straight | Steel |
| Union nut, female thread 1/2" | 1/2 | 13 mm | straight | Steel |
| Union nut, female thread 1/2" | 1/2 | 13 mm | 90 | Steel |
| Union nut, female thread 20x2 | 20x2 | 13 mm | straight | Steel |
| Cross nut IG 20x2 | 20x2 | 13 mm | 90 | Steel |
These steel union nuts offer flexible connection options for a wide variety of systems – whether for liquids, air or special media.
More information
- Product number: 2148584
- Manufacturer: beschicht.
- Weight: 0.5 kg
