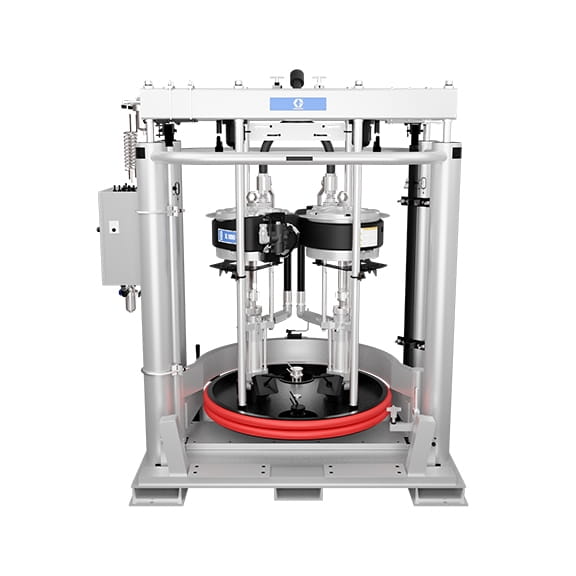

% 109.294,36 €* (31% gespart)Pneumatic bulk unloader efficiently evacuates 300 gallon (1200 liter) magna drums or tote drums, supplying one-component, medium to high viscosity adhesive and sealant to industrial and automotive applications.
Pneumatic bulk unloader efficiently evacuates 300 gallon (1200 liter) magna drums or tote drums, supplying one-component, medium to high viscosity adhesive and sealant to industrial and automotive applications.
Bulk supply system works well when spraying underbody material and applying sealing beads to car and truck bodies.
| UPC Produkt | 755652137993 |
|---|---|
| Division | IPD |
| Price Block | 222 |
| Country of Origin | US |
| Maßeinheit | EA |
| Höhe | 0 CM |
| Länge | 0 CM |
| Breite | 0 CM |
| Volumen | 0 M3 |
| Shipping Weight | 0 KG |
| Ambient/Warm Melt/Hot Melt | Ambient |
|---|---|
| Container Type | Magna Drum |
| Material Container Volume (gal) | 300 |
| Material Container Volume (l) | 1000 |
| Maximum Air Inlet Pressure (bar) | 6.55 |
| Maximum Air Inlet Pressure (kg/cm²) | 6.68 |
| Maximum Air Inlet Pressure (kPa) | 655 |
| Maximum Air Inlet Pressure (psi) | 95 |
| Maximum Flow Rate (L/min) | 26.1 |
| Maximum Fluid Pressure (bar) | 324 |
| Maximum Fluid Pressure (kPa) | 32405 |
| Maximum Fluid Pressure (MPa) | 32 |
| Maximum Fluid Pressure (psi) | 4700 |
| Maximum Height (cm) | 358.1 |
| Maximum Height (ft) | 11.75 |
| Maximum Height (in) | 141 |
| Maximum Height (m) | 3.58 |
| Maximum Height (mm) | 3581 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (bar) | 310 |
| Maximum Working Pressure (kPa) | 31000 |
| Maximum Working Pressure (MPa) | 31 |
| Maximum Working Pressure (psi) | 4500 |
| Minimum Height (cm) | 216.4 |
| Minimum Height (ft) | 7.1 |
| Minimum Height (in) | 85.2 |
| Minimum Height (m) | 2.16 |
| Minimum Height (mm) | 2164 |
| Model | UniDrum |
| Overall Depth (cm) | 129.5 |
| Overall Depth (in) | 51 |
| Overall Depth (mm) | 1295 |
| Overall Width (cm) | 175.3 |
| Overall Width (in) | 69 |
| Overall Width (mm) | 1753 |
| Ram Material | Carbon Steel |
| Weight (kg) | 1791.7 |
| Control Options | Elec/Pneumatic |
| Minimum Ambient Temperature (°C) | 1 |
| Number of Wipers | 2 |
| material_container_volume | 300 Gallons |
