Manufacturer no.:
24P843

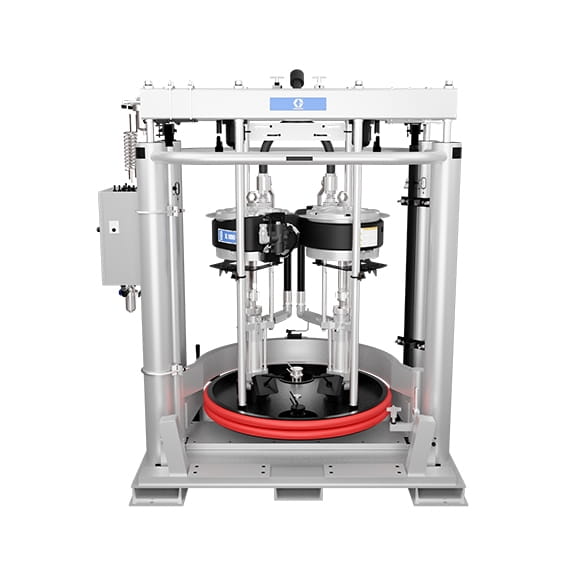

Graco - UNIDRUM SUPPLY UNIT,RH,CST,45:1,PREMI - Sealant & Adhesive,1K Equipment - 24P843
€75,413.11*
% €109,294.36* (31% saved)
Also interesting
Product information
The pneumatic bulk dispenser efficiently evacuates 300 gallon (1200 litre) Magna drums or tote drums and delivers single component, medium to high viscosity adhesive and sealant for industrial and automotive applications.
The bulk supply system is well suited for spraying underbody material and applying sealant beads to car and truck bodies.
The XL 10000™ air motor features a modular design for easy maintenance.
XL engine air valves help prevent ice build-up Stalling
Graco is a globally recognised manufacturer of liquid handling systems and components. services for various industries. Graco's high-quality products are used for paints, coatings, lubricants, sealants, adhesives and building materials. With decades of expertise, Graco offers innovative solutions for efficient material handling and optimised coating applications and precise dispensing technology.
The bulk supply system is well suited for spraying underbody material and applying sealant beads to car and truck bodies.
The XL 10000™ air motor features a modular design for easy maintenance.
XL engine air valves help prevent ice build-up Stalling
Graco is a globally recognised manufacturer of liquid handling systems and components. services for various industries. Graco's high-quality products are used for paints, coatings, lubricants, sealants, adhesives and building materials. With decades of expertise, Graco offers innovative solutions for efficient material handling and optimised coating applications and precise dispensing technology.
More information
- Product number: 2124566
- Manufacturer: Graco
- EAN: 755652137993
Technical details
Operating specifications
| UPC product | 755652137993 |
|---|---|
| Division | IPD |
| Price Block | 2 22 |
| Country of Origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 0 KG |
Technical
| Ambient/Warm Melt/Hot Melt | Ambi ent |
|---|---|
| Container Type | Magna Drum |
| Material container volume (gal) | 300 |
| Material Container Volume (l) | 1 0 00 |
| Maximum air inlet pressure (bar) | 6. 55 |
| Maximum air inlet pressure (kg/cm²) | 6. 68 |
| Maximum air inlet pressure (kPa) | 655 |
| Maximum air inlet pressure (psi) | 95 |
| Maximum flow rate (L/min) | 26. 1 |
| Maximum fluid pressure (bar) | 324 |
| Maximum fluid pressure (kPa) | 3 2 405 |
| Maximum fluid pressure (MPa) | 32 |
| Maximum fluid pressure (psi) | 4 7 00 |
| Maximum height (cm) | 358. 1 |
| Maximum height (ft) | 11. 75 |
| Maximum height (in) | 1 41 |
| Maximum height (m) | 3. 58 |
| Maximum height (mm) | 3 5 81 |
| Maximum operating temperature (°F) | 120 |
| Maximum working pressure (bar) | 310 |
| Maximum working pressure (kPa) | 3 1000 |
| Maximum working pressure (MPa) | 31 |
| Maximum working pressure (psi) | 4 5 00 |
| Minimum Height (cm) | 216. 4 |
| Minimum height (ft) | 7. 1 |
| Minimum height (in) | 85. 2 |
| Minimum height (m) | 2. 16 |
| Minimum height (mm) | 2164 |
| Model | Uni Drum |
| Overall Depth (cm) | 129. 5 |
| Overall depth (in) | 51 |
| Overall Depth (mm) | 1 2 95 |
| Overall width (cm) | 175. 3 |
| Overall width (in) | 69 |
| Overall width (mm) | 1 7 53 |
| Ram material | Carbon steel |
| Weight (kg) | 1791. 7 |
| Control options | Electric / pneumatic |
| Minimum ambient temperature (°C) | 1 |
| Number of wipers | 2 |
| Material container volume | 300 gallons |
