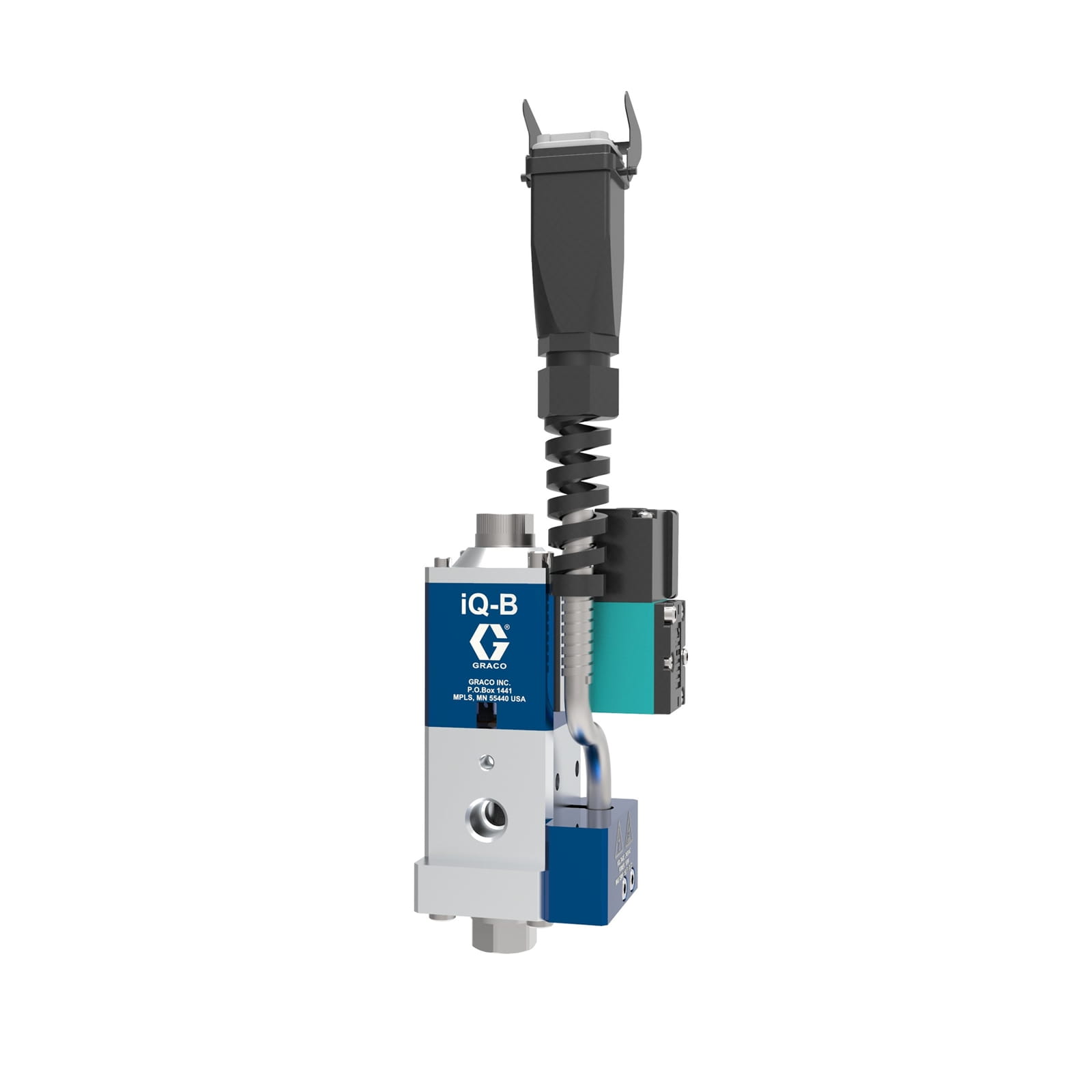

The iQ Ball and Seat Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
Hersteller-Nr.:
V25AB000BB
iQ-Dosierventil, Kugelsitz, beheizt, NPT-Düse, 000mm Düse, Magnetventil für Direktmontage
3.021,71 €*
% 3.453,38 €* (12.5% gespart)Versandfertig in 5-8 Werktage
Auch interessant
Produktinformationen
The iQ Ball and Seat Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
- Maximize dispense time while minimizing maintenance costs and effort
- Perfect for standard on/off applications
- Ideal for low to high viscosity materials
- Wear-resistant seals and hardened components for long life
- Easy repeatable mounting for robotic and automated applications.
| Applikatortyp: | Kugel und Sitz |
|---|---|
| Auslassblocklänge (mm): | NA |
| Benetztes Material: | Aluminium, UHMWPE, 17-4 Edelstahl, PEEK, Chemikalienbeständige O-Ringe, Silikonnitrid, CA 360 Messing, Beschichteter Werkzeugstahl, C2-Hartmetall mit Kobaltbindemittel |
| Düsengröße (mm): | n. z. |
| Geschlecht des Material-Auslassgewindes: | Innengewinde |
| Geschlecht des Material-Einlassgewindes: | Innengewinde |
| Gewicht (kg): | 0.9 |
| Größe der Materialauslassöffnung (Zoll): | 1/4 |
| Größe der Materialeinlassöffnung (Zoll): | 1/4 |
| Größe des Lufteinlasses (Zoll): | 5/16 |
| Komponenten-Typ: | Einkomponenten |
| Lufteinlassgewindetyp: | Steckverbinder |
| Magnetventil-Nennspannung (V dc): | 24 |
| Materialauslassgewindetyp: | NPT |
| Materialeinlassgewindetyp: | NPT |
| Maximale Betriebstemperatur (°C): | 70 |
| Maximaler Luftdruck (MPa): | 0.83 |
| Maximaler Luftdruck (bar): | 8.3 |
| Maximaler Luftdruck (psi): | 120 |
| Maximaler Materialdruck (MPa): | 28 |
| Maximaler Materialdruck (bar): | 276 |
| Maximaler Materialdruck (psi): | 4000 |
| Montageposition: | Direkt montiertes Magnetventil |
| Nennleistung (W): | 100 |
| Phasen: | 1 |
| Pistolenaktivierung: | Automatisch |
| RTD-Typ: | 100 OHM - Platin |
| Spannung (V ac): | 240 |
| Typ: | Dosierventil |
| Umgebung/Warmschmelzend/Heißschmelzend: | Warm Melt |
Weitere Informationen
- Produktnummer: 1031370
- Hersteller: Graco
- EAN: 00769946009200
- Gewicht: 1.36 kg
Technische Details
Betriebsspezifikationen
| UPC Produkt | 769946009200 |
|---|---|
| Division | IPD |
| Price Block | 223 |
| Country of Origin | US |
| Maßeinheit | EA |
| Höhe | 0 CM |
| Länge | 0 CM |
| Breite | 0 CM |
| Volumen | 0 M3 |
| Shipping Weight | 1.36 KG |
| HTS-Code (EU) | 8481809990 |
| HTS-Code (GB) | 8481809990 |
Technische Daten
| Maximum Air Pressure (bar) | 8.3 |
|---|---|
| Maximum Air Pressure (psi) | 120 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Air Inlet Size (in) | 5/16 |
| Ambient/Warm Melt/Hot Melt | Warm Melt |
| Component Type | Single Component |
| Fluid Inlet Size (in) | 1/4 |
| Fluid Inlet Thread Gender | Female |
| Fluid Outlet Thread Gender | Female |
| Maximum Air Pressure (MPa) | 0.83 |
| Maximum Fluid Pressure (bar) | 276 |
| Maximum Fluid Pressure (MPa) | 28 |
| Maximum Fluid Pressure (psi) | 4000 |
| Nozzle Size (in) | N/A |
| Nozzle Size (mm) | N/A |
| Outlet Block Length (in) | NA |
| Outlet Block Length (mm) | NA |
| RTD Type | 100 OHM - Platinum |
| Solenoid Valve Voltage Rating (V dc) | 24 |
| Weight (kg) | 0.9 |
