Hersteller-Nr.:
17P600

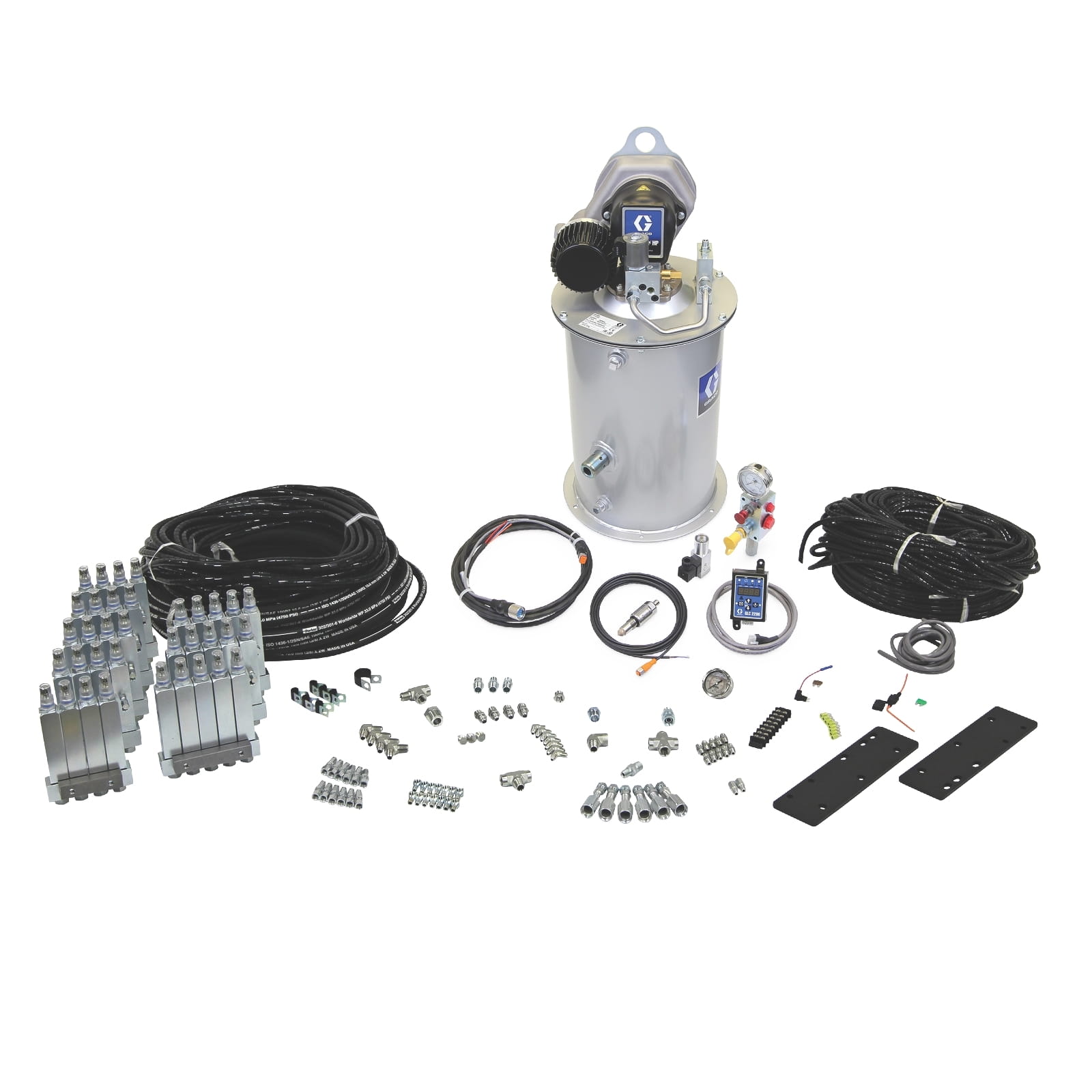

Elektrischer Dyna-Star®-Schmierungssatz für Komatsu HD-Lkw (Komatsu HD465-8 und HD605-8)
26.448,66 €*
% 30.665,11 €* (13.75% gespart)Versandfertig in 5-8 Werktage
Auch interessant
Produktinformationen
Zur Verwendung mit Komatsu HD465-8 und HD605-8.
| Anwendung: | Geländefahrzeuge |
|---|---|
| Energietyp: | Elektrisch |
| Gesamtbreite (cm): | 27.9 |
| Gesamtbreite (mm): | 279 |
| Gesamthöhe (cm): | 73.7 |
| Gesamthöhe (mm): | 737 |
| Gewicht (kg): | 22.68 |
| Größe der Materialauslassöffnung (Zoll): | 0,375 |
| Kompatibles Dosiersystem: | Mehrleitungssystem |
| Kompatibles Material: | Fett |
| Materialauslassgewindetyp: | NPT |
| Materialauslassgröße (cm): | 0.9525 |
| Materialauslassgröße (mm): | 9.5250 |
| Maximaler Betriebsdruck (MPa): | 24.1 |
| Maximaler Betriebsdruck (kPa): | 24100 |
| Maximaler Betriebsdruck (psi): | 3500 |
| Modell: | Dyna-Star |
| Spannung (V dc): | 24 |
| Strom-Anschlussart: | M23 |
| Typ: | Elektrische Kolbenpumpe |
| Umfasst: | Elektrische Dyna-Star HP-Pumpe, GLC2200 Steuergerät, Druckschalter, Spritzdüsen, Fittings, Hardware |
| Zulässiger Betriebsdruck (bar): | 241 |
Weitere Informationen
- Produktnummer: 1035379
- Hersteller: Graco
- EAN: 00755652648482
- Gewicht: 157.849 kg
Technische Details
Betriebsspezifikationen
| UPC Produkt | 755652648482 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of Origin | US |
| Maßeinheit | EA |
Technische Daten
| Fluid Outlet Size (mm) | 9.5250 |
|---|---|
| Includes | Electric Dyna-Star HP Pump, GLC2200 Controller, Pressure Switch, Injectors, Fittings, Hardware |
| Maximum Working Pressure (bar) | 241 |
| Maximum Working Pressure (kPa) | 24100 |
| Maximum Working Pressure (psi) | 3500 |
| Model | Dyna-Star |
| Voltage (V dc) | 24 |
| Maximum Flow Rate (ci/min) | 25 |
| Minimum Flow Rate (ci/min) | 1.5 |
| Overall Height (cm) | 73.7 |
| Overall Height (in) | 29 |
| Overall Height (mm) | 737 |
| Overall Width (cm) | 27.9 |
| Overall Width (in) | 11 |
| Overall Width (mm) | 279 |
| Weight (kg) | 22.68 |
| Maximum Working Pressure (MPa) | 24.1 |
