10.963,47 €*

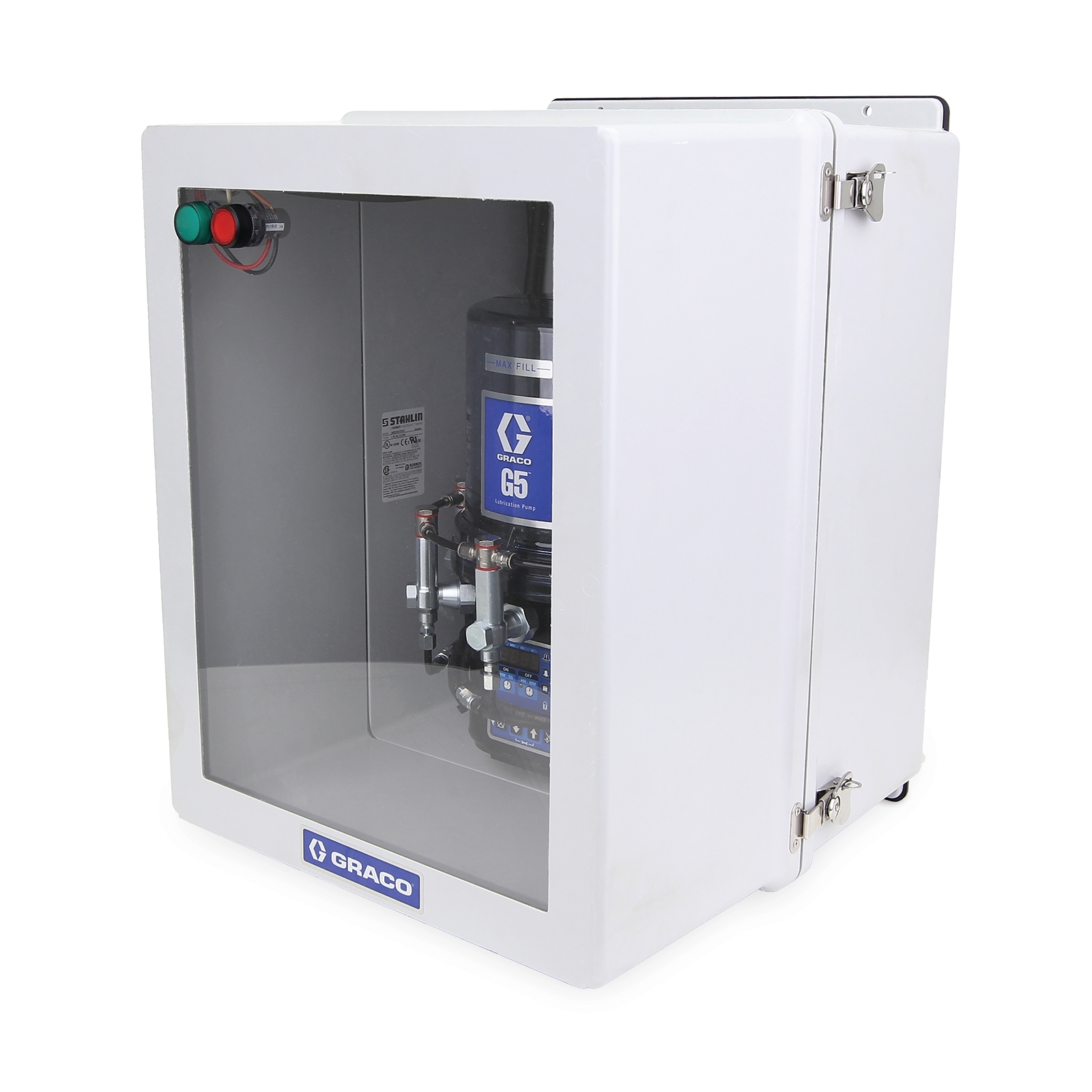

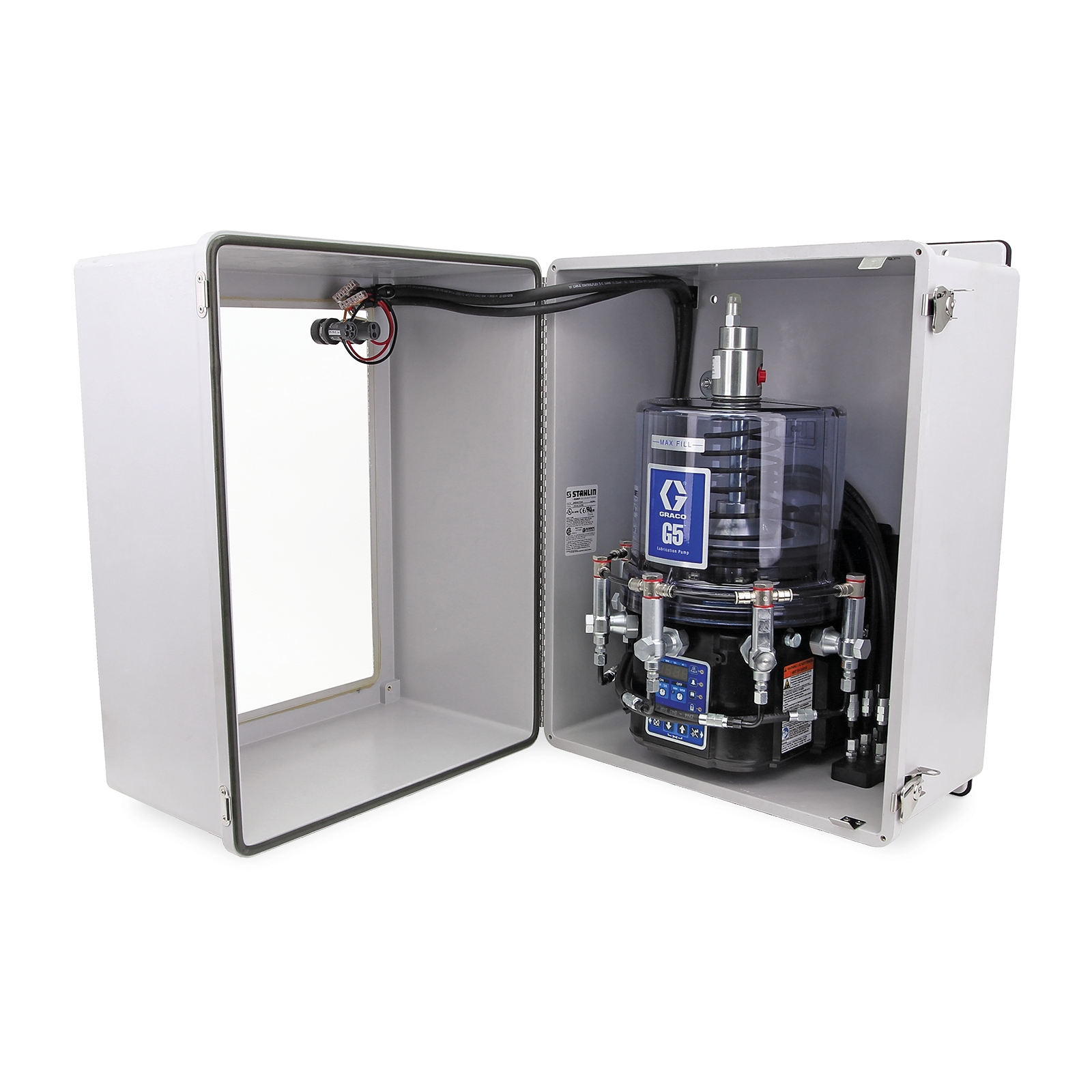

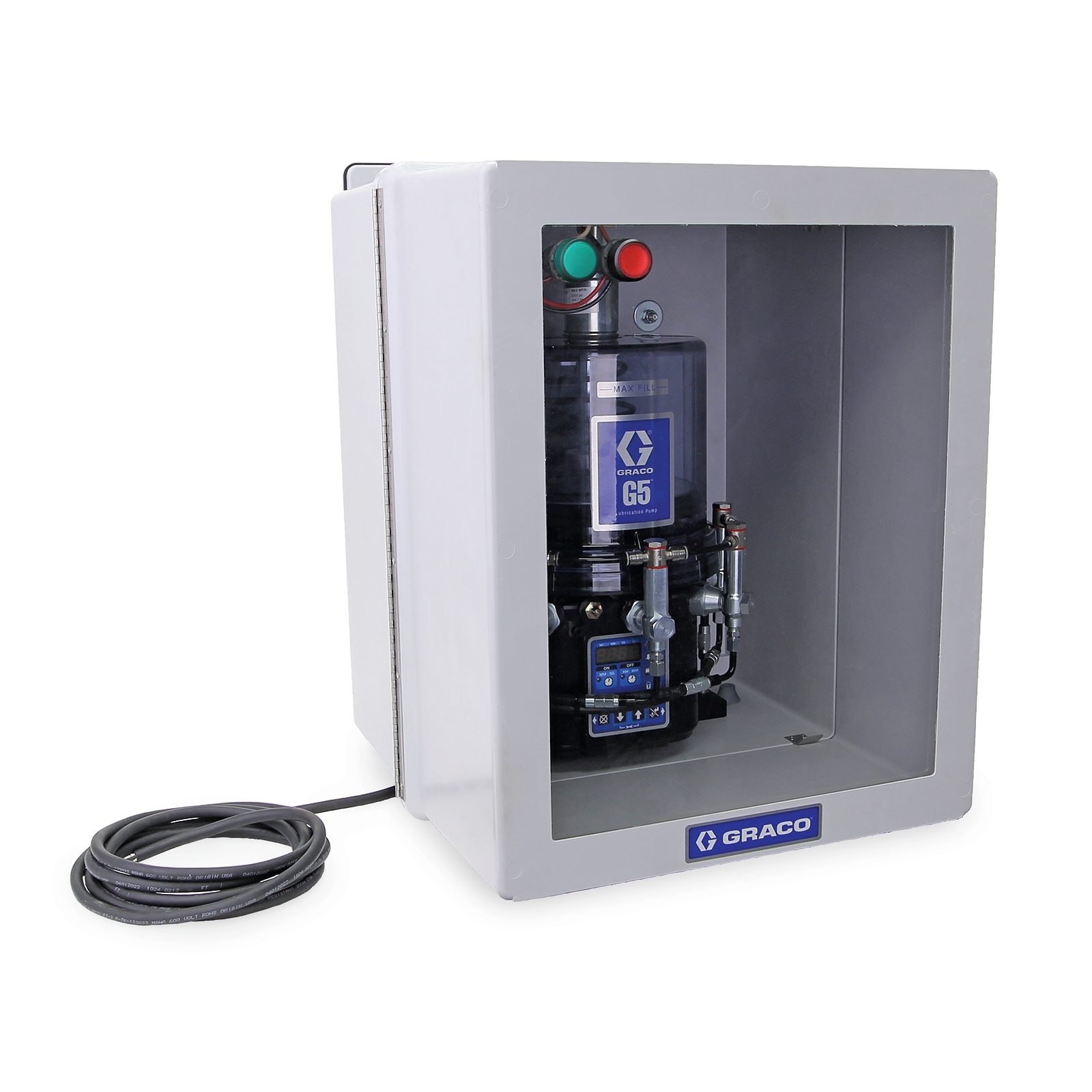

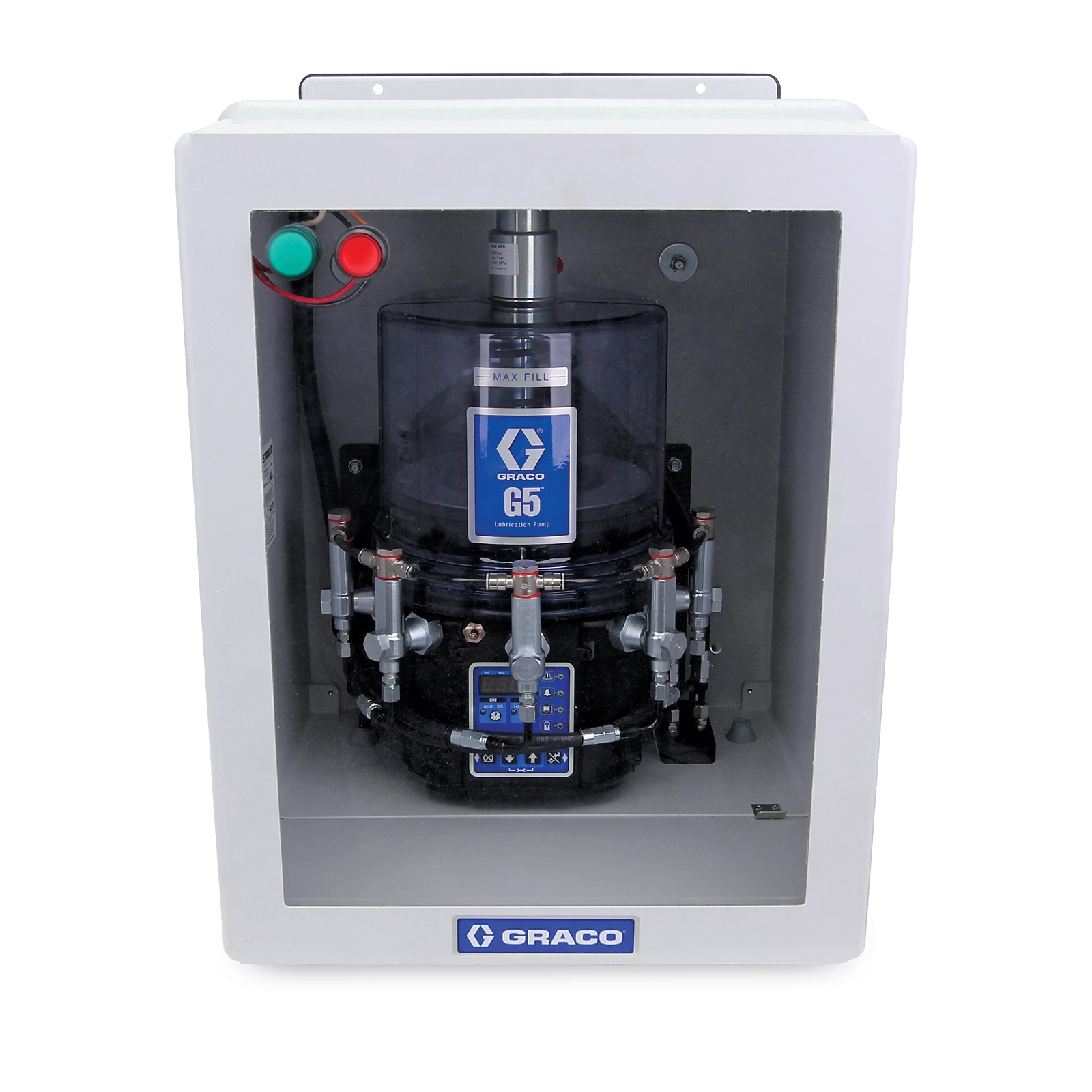

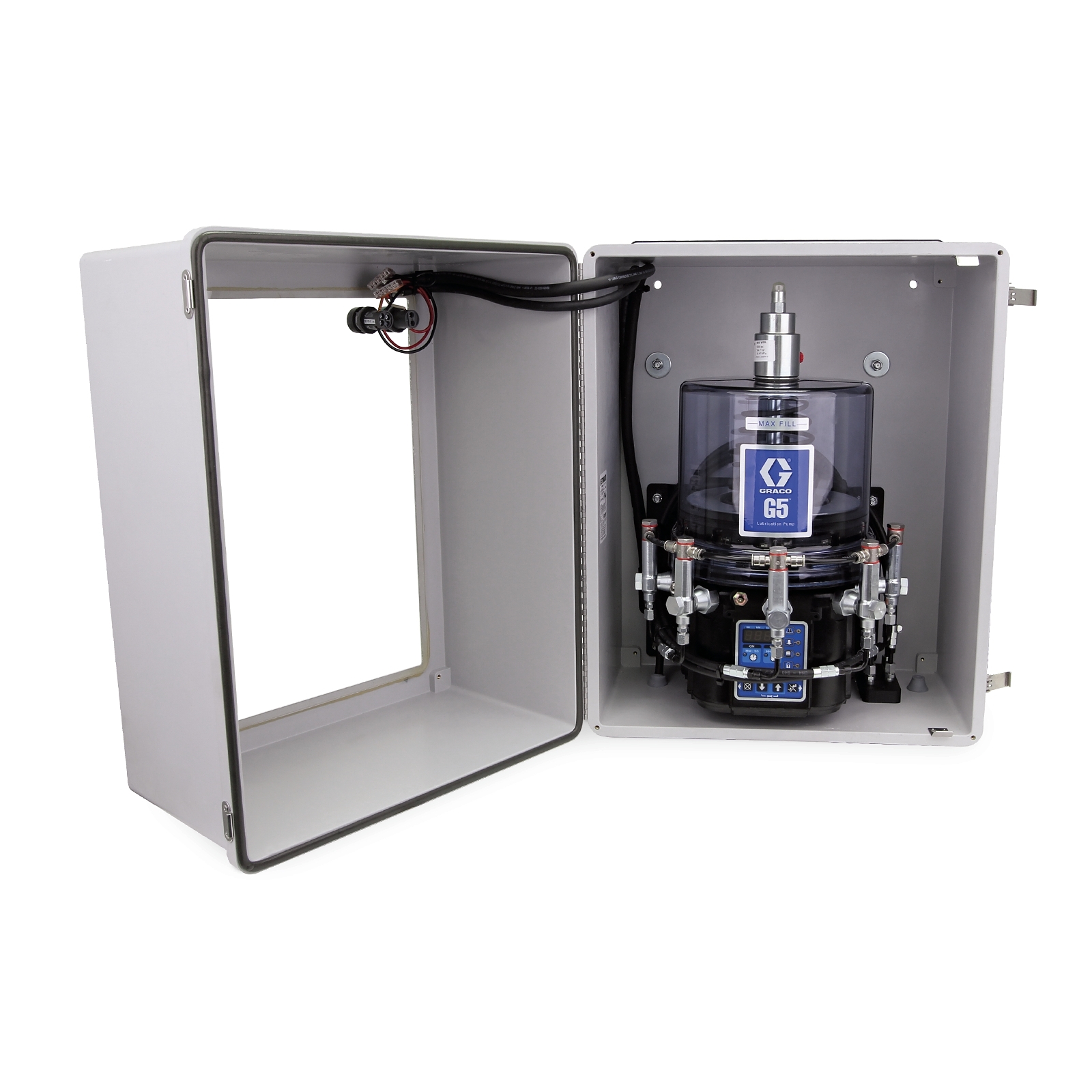

Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simple grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.
Greater profit is within reach with Graco G5 pumps. Equipped with five pump elements for more versatile and simple grease operations, the G5 has been designed specifically for the harsh demands of fracking operations.
Designed for quintuplex frack pumps, pumpjacks and other pump-to-point applications.
| UPC Produkt | 769946700800 |
|---|---|
| Division | LED |
| Price Block | 128 |
| Country of Origin | US |
| Maßeinheit | EA |
| Höhe | 0 CM |
| Länge | 0 CM |
| Breite | 0 CM |
| Volumen | 0 M3 |
| Shipping Weight | 0 KG |
| Fluid Inlet Thread Gender | Female |
|---|---|
| Fluid Outlet Size (mm) | 3.18 |
| Fluid Outlet Thread Gender | Female |
| For Use With | Injector-Based Systems, Series Progressive Systems |
| Input Voltage (V dc) | 24 |
| Maximum Fluid Output Pressure (psi) | 4250 |
| Maximum NLGI Grade | #2 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 185 |
| Maximum Working Pressure (bar) | 293 |
| Maximum Working Pressure (kPa) | 29302 |
| Maximum Working Pressure (psi) | 4250 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Model | G5 |
| Reservoir Size (gal) | 1.06 |
| Series | Pro |
| Voltage (V dc) | 24 |
| Alarm Relay Inductive Maximum Operating Current (A) | 1.5 |
| Alarm Relay Inductive Maximum Operating Voltage (VDC) | 220 |
| Alarm Relay Inductive Maximum Switching Capacity | 25 VA;30 W |
| Alarm Relay Inductive Minimum Permissible Load | 10 ?A;10m VDC |
| Alarm Relay Inductive Rated Load (A) | 1 |
| Alarm Relay Resistive Maximum Operating Current (A) | 3 |
| Alarm Relay Resistive Maximum Switching Capacity | 50 VA;60 W |
| Alarm Relay Resistive Rated Load (A) | 2 |
| Control Options | Pro |
| IP Rating | IP69K |
| Maximum Fill Inlet Pressure (bar) | 344.7 |
| Maximum Fill Inlet Pressure (kPa) | 34470 |
| Maximum Fill Inlet Pressure (psi) | 5000 |
| Maximum Run Time (min) | 30 |
| Maximum Voltage (V dc) | 30 |
| Minimum cST Grade (cST) | 40 |
| Minimum Voltage (V dc) | 18 |
| Number of Machine Count Sensor Inputs | 1 |
| Number of Pressure and Cycle Sensor Inputs | 3 |
| Number of Pump Elements | 5 |
| Overall Depth (cm) | 51.7 |
| Overall Depth (in) | 20.3 |
| Overall Depth (mm) | 517 |
| Overall Height (cm) | 588 |
| Overall Height (in) | 22 |
| Overall Height (mm) | 5880 |
| Overall Width (cm) | 432 |
| Overall Width (in) | 17 |
| Overall Width (mm) | 432 |
| Pump Output with 0 Spacers (cu in/min) | 0.16 |
| Pump Output with 1 Spacer (cu in/min) | 0.1 |
| Pump Output with 2 Spacers (cu in/min) | 0.06 |
| Weight (kg) | 32.5 |
| Number of Outlets | 5 |
| Maximum Working Pressure (MPa) | 29.3 |
| Voltage | 24 |
| Enclosure Dimensions (in) | 22 x 17 x 18 |
