18.973,43 €*

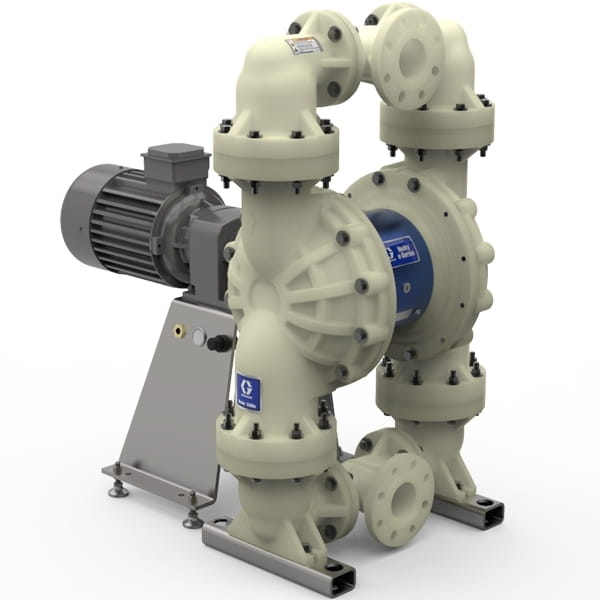

% 20.238,33 €* (6.25% gespart)Tackle Tough Transfer Jobs. Graco's proven quality and leading technologywill keep you pumping longer. Husky EODDpumps are on the cutting edge of pumptechnology, giving you a large decrease inoperating costs and more control over yourprocess.
Tackle Tough Transfer Jobs. Graco's proven quality and leading technologywill keep you pumping longer. Husky EODDpumps are on the cutting edge of pumptechnology, giving you a large decrease inoperating costs and more control over yourprocess.
Typical applications include chemicals, paint, oil & gas, in-plant water and wastewater, and mine dewatering
| UPC Produkt | 769946147438 |
|---|---|
| Division | PRO |
| Price Block | 216 |
| Country of Origin | US |
| Maßeinheit | EA |
| Höhe | 132 CM |
| Länge | 140 CM |
| Breite | 114 CM |
| Volumen | 2.107 M3 |
| Shipping Weight | 262 KG |
| HTS-Code (GB) | 8413508090 |
| HTS-Code (EU) | 8413508090 |
| Air Inlet Size (in) | 0.375 |
|---|---|
| Air Inlet Thread Gender | Female |
| Fluid Inlet Size (cm) | 7.6 |
| Fluid Inlet Size (in) | 3 |
| Fluid Inlet Size (mm) | 76.2 |
| Fluid Outlet Size (cm) | 7.6 |
| Fluid Outlet Size (mm) | 76.2 |
| Maximum Air Pressure (bar) | 5.52 |
| Maximum Air Pressure (kPa) | 551.58 |
| Maximum Air Pressure (psi) | 80 |
| Maximum Amperage (A) | 19.5/9.75A |
| Maximum Cycle Rate (CPM) | 185 |
| Maximum Flow Rate (GPD) | 1.2 |
| Maximum Flow Rate (L/min) | 681.30 |
| Maximum Fluid Pressure (bar) | 5.52 |
| Maximum Fluid Pressure (kPa) | 551.58 |
| Maximum Fluid Pressure (psi) | 80 |
| Maximum Motor Speed (RPM) | 1800 |
| Maximum Operating Temperature (°C) | 82.22 |
| Maximum Operating Temperature (°F) | 180 |
| Maximum Solid Size (cm) | 1.27 |
| Maximum Solid Size (in) | 0.5 |
| Maximum Solid Size (mm) | 12.70 |
| Minimum Amperage (A) | 0 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Model | Husky |
| Overall Height (in) | 23.6 |
| Power Rating (HP) | 7.5 |
| Series | 3300e |
| Voltage (V dc) | 0 |
| Maximum Fluid Pressure (MPa) | 0.55 |
| Maximum Air Pressure (MPa) | 0.55 |
| Maximum Working Pressure (psi) | 80 |
| diaphragm_compatible_material | Santoprene |
