Hersteller-Nr.:
25U466

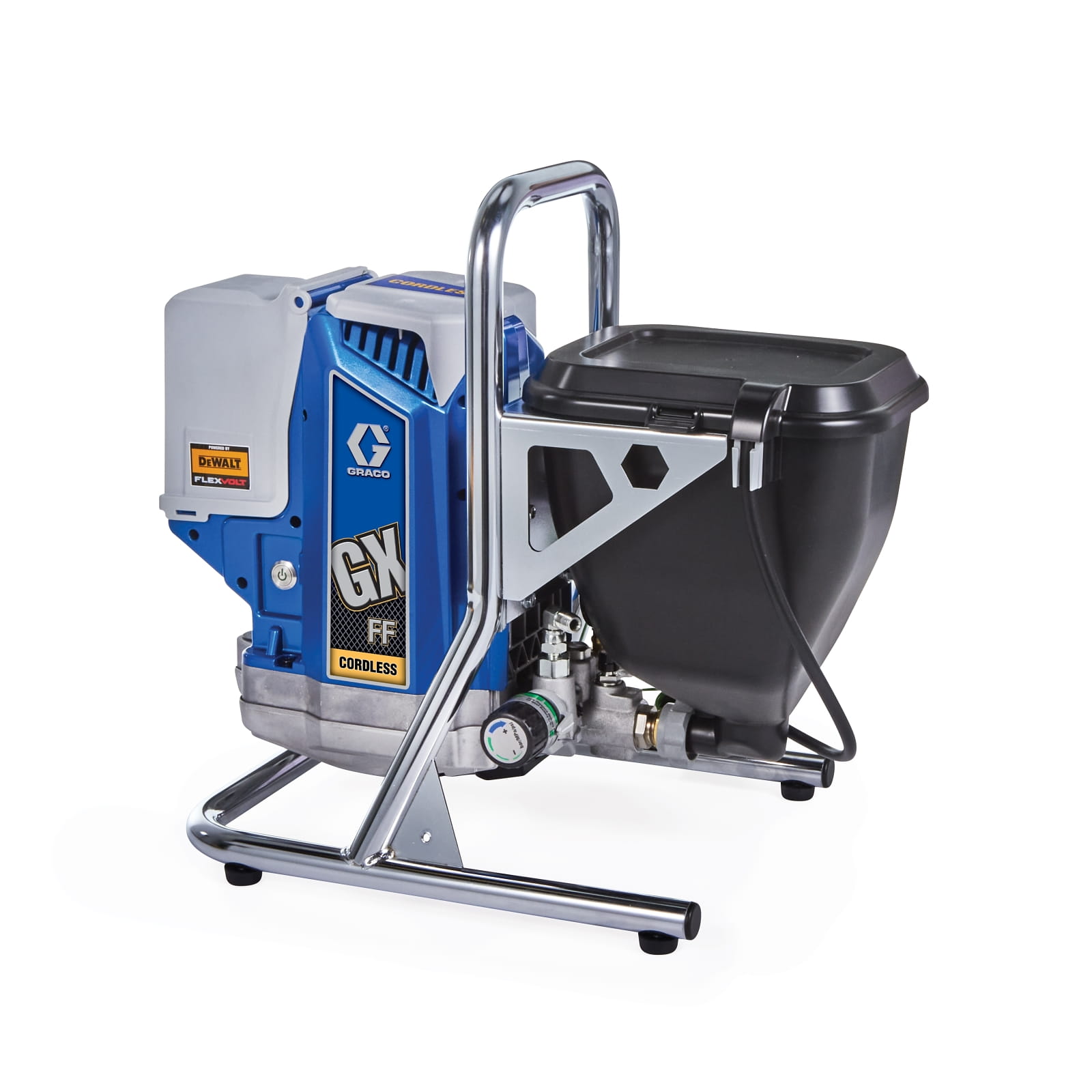

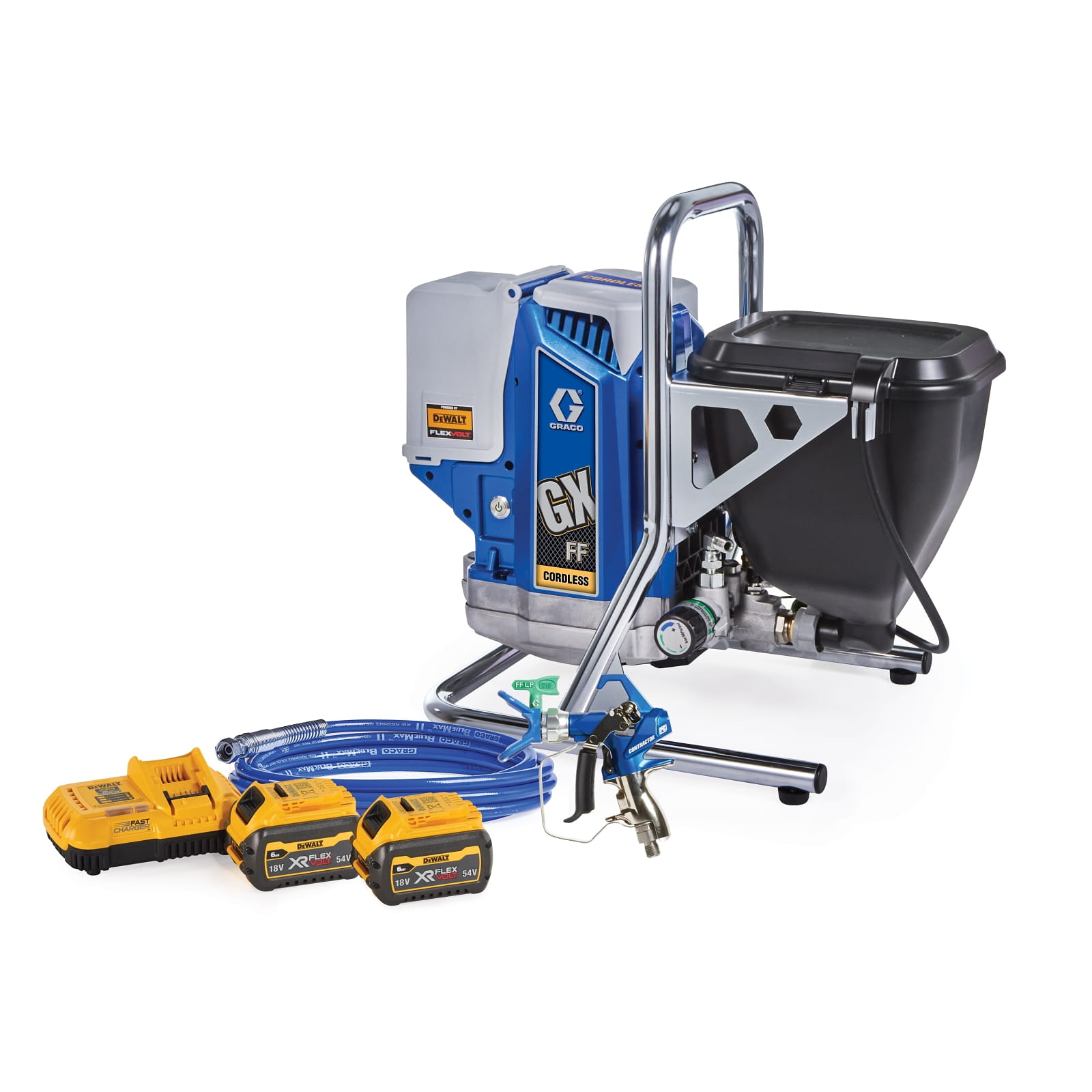

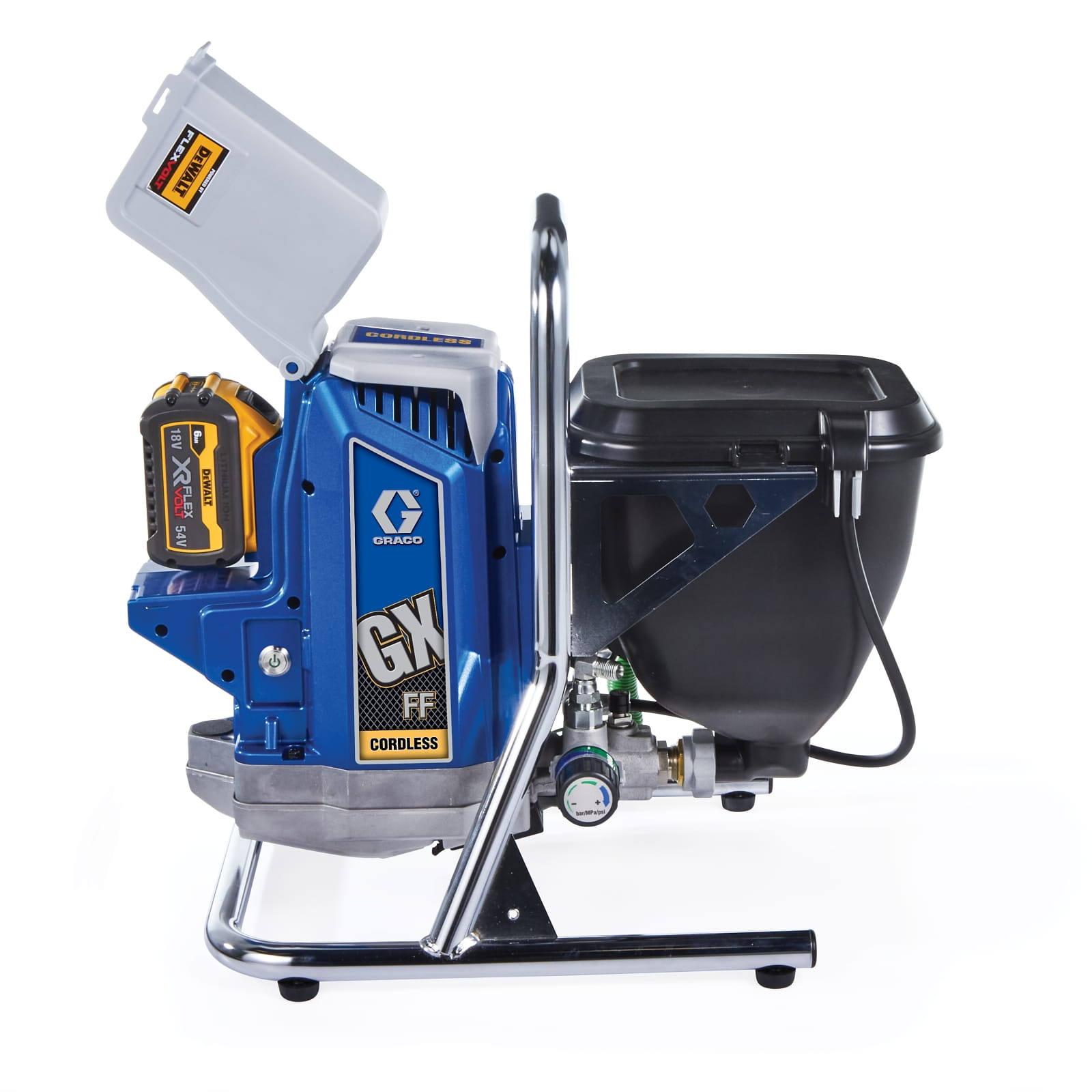

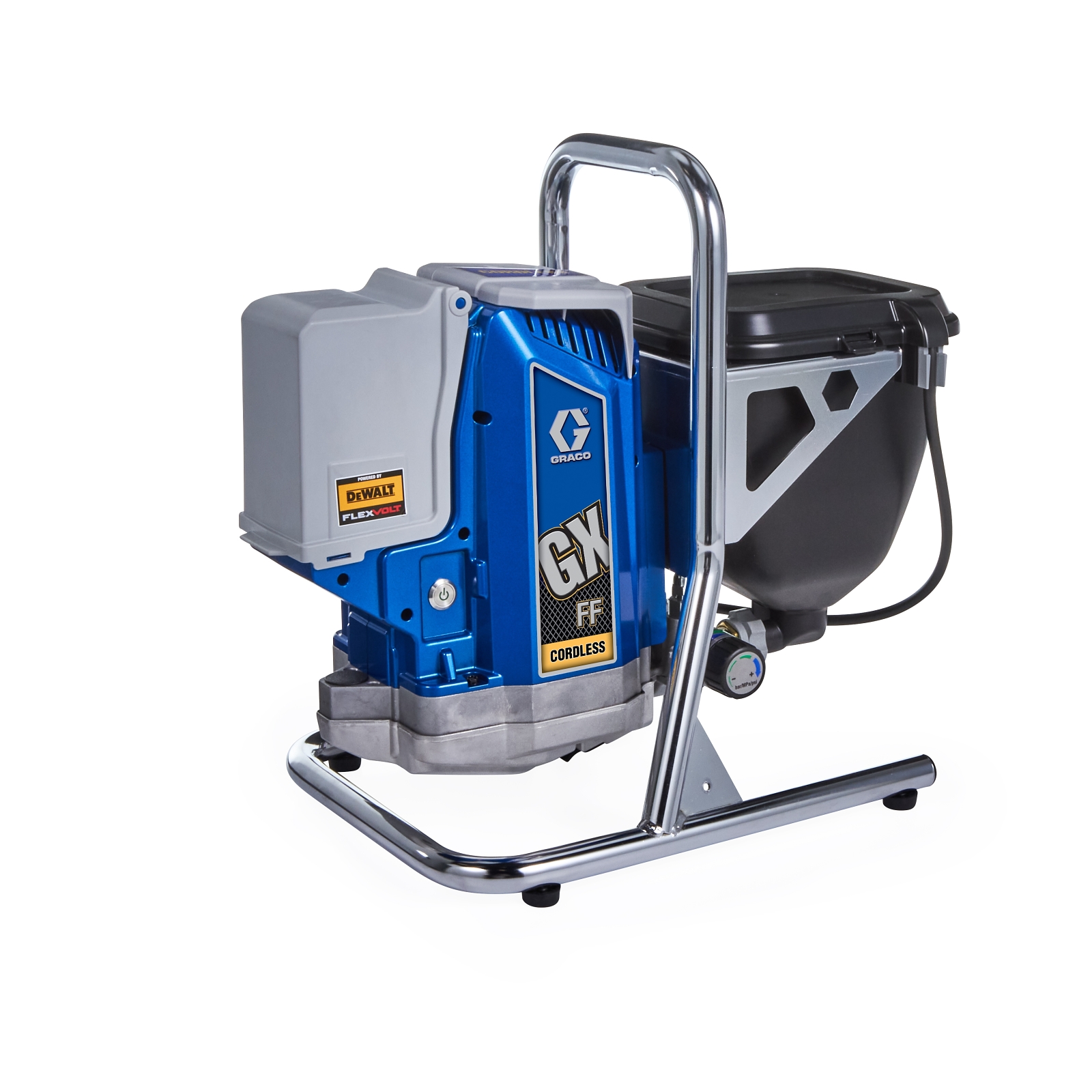

GX FF Kabelloses Airless-Spritzgerät, 230 V, CEE
2.419,03 €*
% 2.748,90 €* (12% gespart)Versandfertig in 5-8 Werktage
Auch interessant
Produktinformationen
| Antrieb: | Kabellos |
|---|---|
| Artikel Art: | Airless Spritzgerät |
| Volt: | 230 V |
Weitere Informationen
- Produktnummer: 1032832
- Hersteller: Graco
Technische Details
Betriebsspezifikationen
| UPC Produkt | 769946226980 |
|---|---|
| Division | CED |
| Price Block | 231 |
| Country of Origin | US |
| Maßeinheit | EA |
| Höhe | 53 CM |
| Länge | 66 CM |
| Breite | 34 CM |
| Volumen | .119 M3 |
| Shipping Weight | 20 KG |
Technische Daten
| Compatible Replacement Pump | 24Y472 |
|---|---|
| Convertible | Non-Convertible |
| Engine Size (HP) | 0.500 |
| Fluid Outlet Size (mm) | 6.35 |
| Frame Configuration | Hopper |
| Hose Inlet Diameter (cm) | 0.47625 |
| Hose Inlet Diameter (in) | 3/16 |
| Hose Inlet Diameter (mm) | 4.7625 |
| Includes | Contractor PC Compact Gun, 100-Mesh Compact Gun Filter, RAC X FFLP 210 Spray Tip, RAC X Guard, 1/4 in x 15 m Duraflex Hose, 2 - DEWALT 18V/54V MAX FLEXVOLT 6ah Lithium Ion Batteries, DEWALT Fan-Cooled Fast Charger |
| Maximum Flow Rate (L/min) | 1.4 |
| Maximum Hose Length (ft) | 25 |
| Maximum Hose Length (m) | 7.5 |
| Maximum Sound Pressure Level (dB(A)) | 83 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Tip Size Gun 1 (in) | 0.019 |
| Maximum Working Pressure (psi) | 3000 |
| Maximum Working Pressure (kPa) | 20700 |
| Maximum Working Pressure (MPa) | 20.7 |
| Overall Width (mm) | 342.9000 |
| Model | GX |
| Maximum Working Pressure (bar) | 207 |
| Overall Height (cm) | 49.8 |
| Overall Height (in) | 19.6 |
| Weight (kg) | 14.7 |
| Overall Height (mm) | 497.8400 |
| Overall Length (cm) | 51.3 |
| Overall Width (in) | 13.5 |
| Overall Length (in) | 20.2 |
| Series | FF Cordless |
| Overall Length (mm) | 513.08 |
| Overall Width (cm) | 34.3 |
| Battery Capacity (Ah) | 6 |
| Battery Chemistry | Lithium-ion |
| Battery Voltage (V) | 54 |
| Maximum Working Pressure (kg/cm²) | 210.9 |
| Hose Diameter (in) | 3/16 |
| Fluid Hose Inside Diameter (in) | 3/16 |
| Outlet Paint Filter | 60 Mesh Stainless Steel Screen |
| Frequency (Hz) | 50 |
| Pump Mount Type | ProXchange |
| Pump Rod Type | Carbon Steel |
| Filter Mesh Size | 100 |
| Maximum Operating Temperature (°C) | 46 |
| Maximum Operating Temperature (°F) | 115 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum Operating Temperature (°F) | 40 |
| region_plug_type | EU region (Type C, E & F plug) |
