WIWA 500 DX Airless Spray Gun – Ergonomic high-pressure spray gun, 250 bar

The 250 / 500 DX airless spray gun has been developed for professional airless applications and offers particularly user-friendly handling. Thanks to its ergonomic design, the gun sits comfortably in the hand and ensures comfortable working even during prolonged use.

Compared with the previous model, maintenance has been significantly simplified. The filter is located directly inside the housing and can be replaced quickly without the need for time-consuming dismantling of the handle or safety guard.

System & Application

The spray gun is designed for the airless spraying process and is suitable for professional coating work in the trades, industry and corrosion protection. It is available in two pressure variants: 250 bar and 500 bar.

Advantages & Handling

Ergonomic design for comfortable working
Reduced weight for easier handling
Swivel joint with low torque
Smooth-action trigger requiring minimal effort
Available with two- or four-finger trigger
Filter located directly in the housing for quick replacement
Straightforward replacement of the seal unit

Maintenance & Repair

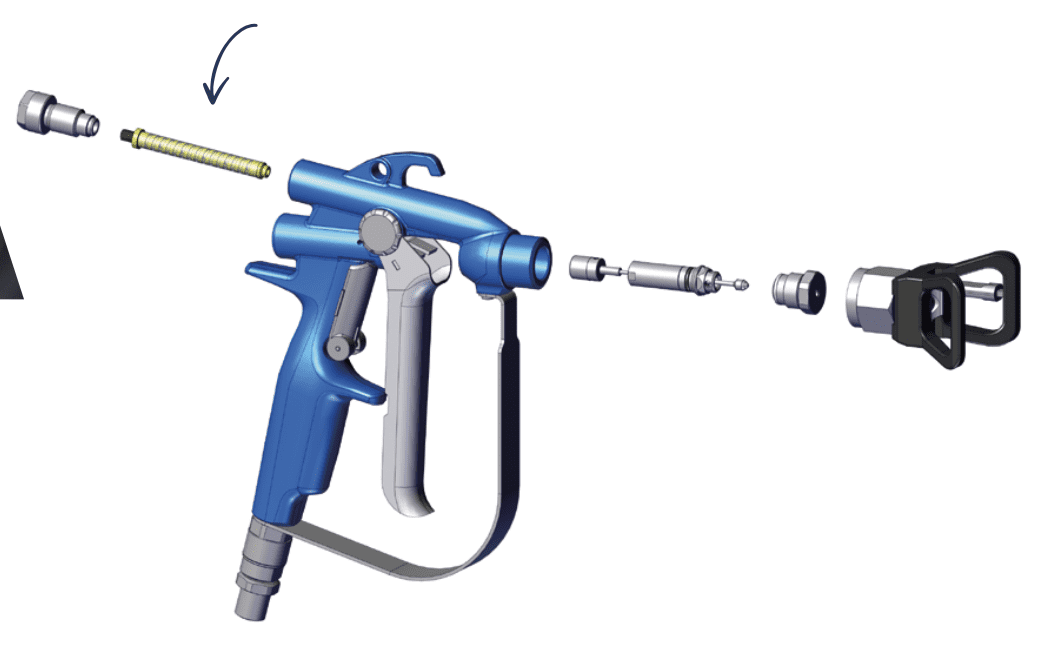

Thanks to its new positioning, the filter can be removed and replaced quickly and easily. The entire sealing unit can also be replaced as a single unit with ease. This makes the gun particularly easy to maintain and allows it to be reassembled quickly following repair work.

Technical data

Spray method: Airless
Max. operating pressure, 250 DX variant: 250 bar
Order number 250 DX: 0675360
Max. operating pressure, 500 DX variant: 500 bar
Order number 500 DX: 0675350
