Graco Airless Spray Systems: Repair & Maintenance for Maximum Performance
Keep your Graco Ultra, ST Max or Nova series ready for use in the long term. Our guide explains troubleshooting, essential maintenance, and safe repairs for professionals and DIY users.
Key Points at a Glance
Safety First
Before any maintenance: switch off the device, unplug it, and fully relieve pressure (see page 7 of the manual).
Pay Attention to Model Types
Repair instructions differ between brushed motors (Ultra/ST Max 395/495/595) and brushless motors (UltraMax II/ST Max II 490/495/595).
Use Original Parts
For repairs, use only original Graco spare parts to ensure warranty coverage, safety, and long service life.
Overview: Graco Airless Models Compared
Graco airless spray systems are divided into various series with different performance classes and motor technologies. Correctly identifying your model is the first step toward a successful repair.
| Series (Examples) | Typical Models | Motor Type | Max. Pressure (Approx.) |
|---|---|---|---|
| Ultra, Nova, ST Max | 395, 495, 595 | Brushed Motor | 227 bar |

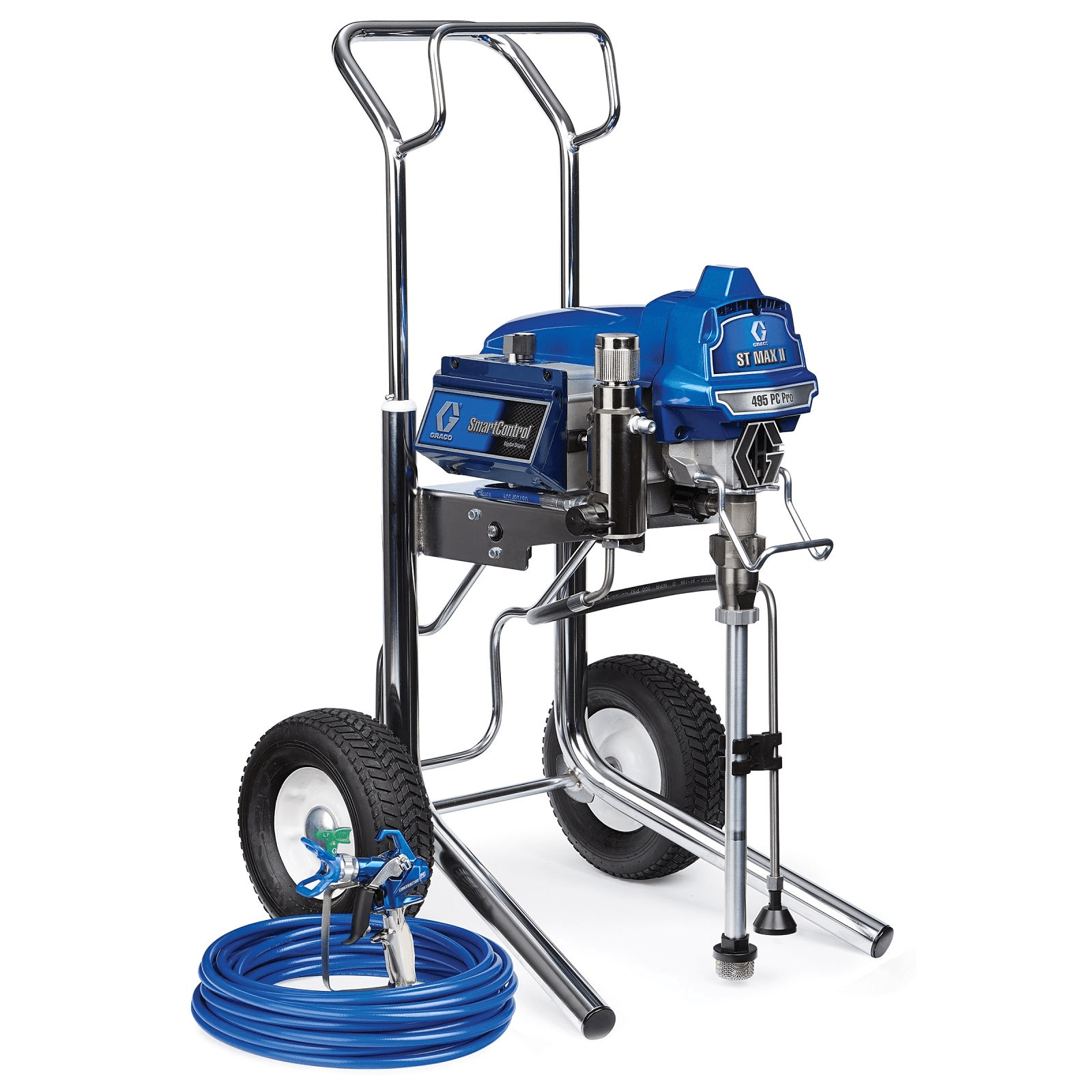

| UltraMax II, Ultimate MX II, ST Max II | 490, 495, 595 | Brushless Motor | 227 bar |
Systematic Troubleshooting for Graco Airless Units
Follow this structured approach to isolate and resolve common issues. The information is based on the official troubleshooting table (pages 9–14).
1. Problem: Low or No Material Output
Possible Causes & Solutions:
- Clogged tip/filter: Relieve pressure (page 7), clean or replace the tip or filter.
- Air in the system: Prime the pump and check the material container.
- Leaking prime valve: Inspect the valve and repair if necessary.
- Kinked suction hose: Straighten the hose and tighten connections.
2. Problem: Motor Runs, Pump Does Not Operate
Possible Causes & Solutions:
- Defective/missing pump pin: Replace the pin and secure the retaining spring correctly in the groove (see page 15).
- Damaged piston rod: Replace the pump or piston rod assembly.
- Defective gears/gear housing: Inspect the gear housing set and replace if damaged (page 17).
3. Problem: Motor Overheats or Stutters
Possible Causes & Solutions:
- Overload: Avoid operation at excessive pressure with too small a spray tip. Reduce pressure or use a larger tip.
- High ambient temperature: Move the unit to a cooler, shaded area (observe max. ambient temperature of approx. 32°C).
- Defective motor fan: Inspect the fan and replace if necessary (page 19).
4. Problem: Circuit Breaker Trips
Possible Causes & Solutions:
- Short circuit in motor power circuit: Check all cables for damaged insulation and tighten loose connectors.
- Defective motor armature (brushed motors only): Check the armature for short circuits (page 18); replace motor if defective (page 30).
- Faulty motor control board: Perform diagnostics according to the table on page 27 and replace the board if necessary.
Essential Maintenance Tasks for Long Service Life
Regular maintenance prevents breakdowns and costly repairs. The following points should be checked regularly:
- Daily visual inspection: Check hoses, cables, and housing for damage.
- Filter cleaning: Clean material filters and inlet screens regularly to prevent clogging.
- Brush inspection (brushed motors only): Minimum brush length 12 mm. Replace if more worn (page 20).
- Seals and packings: Check for leaks at the pump packing nut and replace worn seals.
- Corrosion protection: Flush the unit thoroughly before storage. Use antifreeze (e.g., “Pump Armor”) when there is a risk of frost.
Frequently Asked Questions (FAQ)
How do I safely relieve pressure?
1. Switch off the unit and unplug the power cable.
2. Set pressure to minimum.
3. Hold the gun against the side of a grounded metal pail, trigger it, and open the prime valve.
4. Lock the trigger safety. (Detailed instructions on page 7)
What protective equipment is required?
According to the safety instructions (page 4): safety goggles, suitable protective clothing/respiratory protection (according to material manufacturer specifications), gloves, and hearing protection.
What does error code "E=06" on the display mean?
The motor is overheating or there is a defect in the motor thermal element. Allow the unit to cool down and check ventilation. If the error occurs again, the motor may need to be replaced (see diagnostic table on page 27).
Can I operate the unit with an extension cable?
Yes, but only with a three-wire, grounded cable with a minimum cross-section of 2.5 mm² (AWG 12). Longer or thinner cables can reduce performance (page 6).
Why should I use only original Graco spare parts?
Original parts guarantee proper fit, material durability, and safe operation. Using non-approved parts can compromise safety and void the warranty (see warning on page 4).
Conclusion
With systematic troubleshooting, regular maintenance, and strict adherence to safety regulations, you can keep your Graco airless spray system reliably operational for years. For more complex repairs such as motor replacement or work on the control board, always consult the model-specific instructions or involve a qualified technician. A well-maintained unit is the best foundation for a perfect spray result.
