Mirka Planar Sander 10,000 OPM: The Ultimate Practical Guide for Professionals
[cite_start]The Mirka 10,000 OPM Planar Sander is a tool that sets new standards in efficiency and surface quality[cite: 2]. Whether wood, metal, plastic, or stone – with the right application, you effortlessly achieve perfect results. [cite_start]This guide provides you with all the essential professional information to get maximum performance out of your pneumatic Mirka sander[cite: 12].
Product Overview: Variants and Recommended Uses
[cite_start]The 10,000 OPM planar sander series includes various configurations, primarily differing in pad size, vacuum type, and power[cite: 12].
| Model Variant (Examples) | Pad Size (Guideline) | Oscillation |
|---|---|---|
| OS343CV/DB/NV | [cite_start]75 mm x 100 mm (3 in. x 4 in.) [cite: 12] | [cite_start]3 mm (1/8 in.) [cite: 12] |
| OS353CV/DB | [cite_start]81 mm x 133 mm (3 in. x 5 in.) [cite: 12] | [cite_start]3 mm (1/8 in.) [cite: 12] |

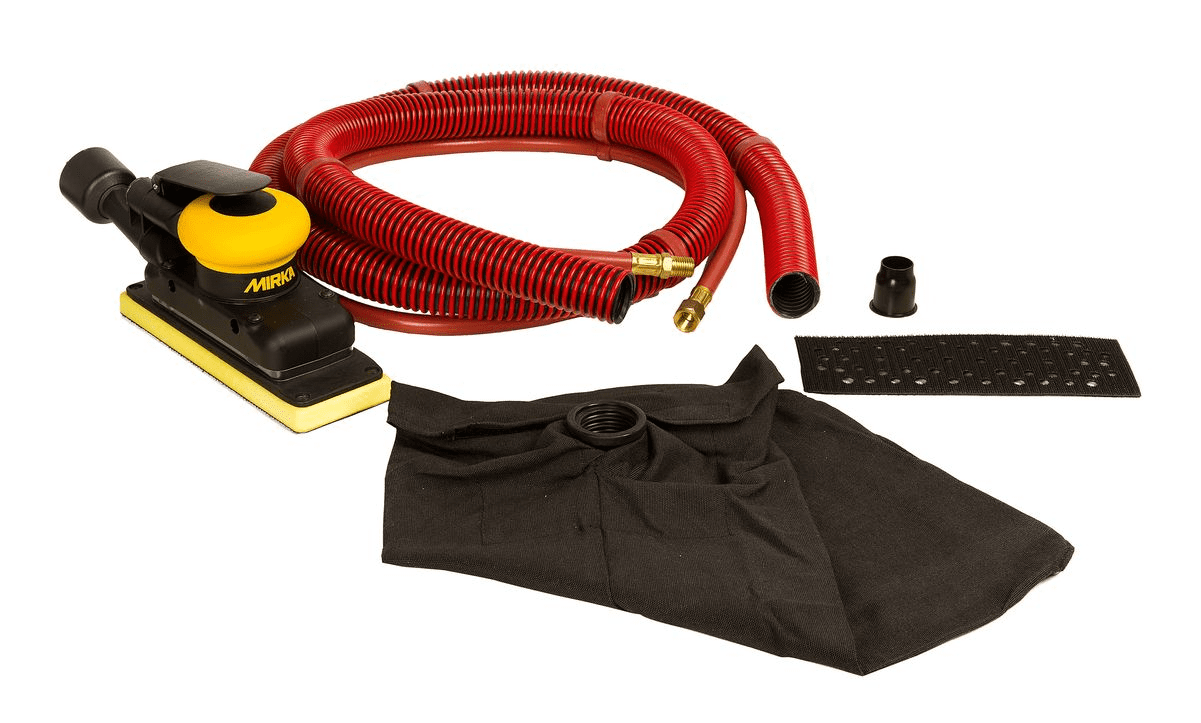

| OS383CV/DB | [cite_start]70 mm x 198 mm (3 in. x 8 in.) [cite: 12] | [cite_start]3 mm (1/8 in.) [cite: 12] |
Areas of Application: The sanders are designed for sanding all types of material, including metal, wood, stone, and plastic[cite: 10].
Key Figures for Optimal Performance (KPIs)
6.2 Bar
Max. [cite_start]Working Pressure [cite: 5, 11]
453 LPM
[cite_start]Air Consumption (Guideline) [cite: 12]
8 Meters
Max. [cite_start]Recommended Hose Length [cite: 5, 11]
The values listed are guidelines from lab tests and are important for the correct installation of the compressed air system[cite: 5, 12, 11].
Recommended Basic Settings for Compressed Air
[cite_start]The air setup is the key to the consistent performance of the pneumatic sander[cite: 10]. [cite_start]An unclean or insufficiently lubricated system quickly leads to power loss and wear[cite: 10].
-
[cite_start]
- Operating Pressure: Use a clean, lubricated air source that delivers a constant pressure of 6.2 bar (90 psig) when the handle is fully depressed[cite: 10, 11]. [cite_start]Never operate the tool above this maximum pressure[cite: 5, 11]. [cite_start]
- Hose: An approved air hose with dimensions of maximum 10 mm (3/8") x 8 m (25 feet) is recommended[cite: 10, 11]. [cite_start]
- Filter/Regulator/Lubricator (FRL): The use of an FRL unit (Filter, Regulator, Lubricator), as shown in Figure 1 of the manual, is highly recommended to supply the tool with clean, lubricated air at the correct pressure[cite: 10]. [cite_start]
- Manual Lubrication: If no FRL unit is used, disconnect the air hose and drip 2 to 3 drops of suitable pneumatic motor oil (e.g., Fuji Kosan FK-20) into the end of the hose (the machine's air inlet)[cite: 10]. [cite_start]Then reconnect the tool and let it run at low speed for a few seconds to circulate the oil[cite: 10]. [cite_start]This should be done daily with frequent use or if it begins to slow down or lose power[cite: 10].
[cite_start] To prevent deep marks or grooves on the workpiece due to excessive sanding disc speed, the rule of thumb is: Always place the tool on the workpiece before turning it on, and lift it off the workpiece before turning it off[cite: 10].
The Pro Workflow: Step-by-Step Guide
-
[cite_start]
- Preparation and Safety: Read the entire manual, ensure all operators are instructed in its use, and wear the required PPE (safety glasses, hearing protection, respiratory protection, gloves)[cite: 1, 10]. [cite_start]
- Secure Work Area: Keep the work area tidy and well-lit[cite: 1]. [cite_start]Always ensure you are standing with a safe and balanced footing[cite: 1]. [cite_start]
- Fix Workpiece: Ensure the item to be sanded is securely fastened to prevent it from moving[cite: 1, 10]. [cite_start]
- Abrasive Change: Always disconnect the air supply before mounting, adjusting, or removing the sanding disc or backing pad[cite: 1, 10]. [cite_start]Select a suitable abrasive and center it carefully on the backing pad[cite: 1, 10]. [cite_start]
- Switching On and Sanding: Place the sander on the workpiece before turning it on[cite: 10]. [cite_start]Sand with a firm grip and be aware of the sander's rotational reaction[cite: 10]. [cite_start]Keep hands and loose clothing away from moving parts[cite: 1, 10]. [cite_start]
- Switching Off: Remove the tool from the workpiece before turning it off[cite: 10]. [cite_start]
- Dust Management: Always connect an appropriate extraction system[cite: 1]. [cite_start]Clean or replace the vacuum bag daily, as dust can be highly flammable and cleaning/replacement ensures optimal performance[cite: 1, 10].
Ready for Top Results?
Get the Mirka Planar Sander for your next application. Highest precision and ergonomics guaranteed.
Discover Mirka Planar Sanders NowTroubleshooting: Quick Solutions for Problems
[cite_start]If performance issues occur, they can often be resolved with simple steps[cite: 14]. Here are the most common symptoms and solutions:
1. No Power and/or Low Free Speed
- Possible Cause: Insufficient air pressure.
Solution: Check the air pressure at the sander inlet while it's running freely. [cite_start]It must be 6.2 Bar (90 psig)[cite: 14]. - Possible Cause: Clogged muffler (model dependent).
[cite_start] Solution: Remove and clean or replace the muffler (e.g., Part 48, 46, or 50 depending on the model)[cite: 14]. - Possible Cause: Worn or damaged vanes or internal air leak.
Solution: Install new vanes (all should be replaced). [cite_start]For internal air leaks or worn motor parts: Contact an authorized Mirka service center[cite: 14].
2. Air Leakage Through Speed Control
- Possible Cause: Dirty, damaged, or bent valve spring, valve, or valve seat.
[cite_start] Solution: Disassemble, check, and replace worn or damaged parts in the housing[cite: 14].
3. Vibration or Uneven Running
- Possible Cause: Insufficient lubrication or accumulation of sanding dust, etc.
Solution: Disassemble the sander and clean with a suitable cleaning agent. [cite_start]Reassemble (see "Service Manual" for guidance)[cite: 14]. - Possible Cause: Wrong backing pad or use of interface/other material.
Solution: Use only the pad sizes and weights intended for the machine. [cite_start]Do not attach anything to the backing pad other than what is specifically designed for use with it[cite: 14].
Maintenance and Safety (Checklist)
[cite_start]Regular maintenance ensures longevity and functionality[cite: 1]. [cite_start]All maintenance must be performed by trained personnel[cite: 1, 10].
-
[cite_start]
- Regularly check the tool, pad, hose, and fittings for wear[cite: 1]. [cite_start]
- Clean or replace the vacuum bag daily[cite: 1, 10]. [cite_start]
- Lubricate the tool daily with pneumatic motor oil if used frequently or if performance drops[cite: 10]. [cite_start]
- Ensure a clean, lubricated air source (ideally FRL unit)[cite: 10]. [cite_start]
- If the tool does not function properly, immediately take it out of use and arrange for service and repair[cite: 1, 10]. [cite_start]
- Use only genuine spare parts[cite: 10].
FAQ – Frequently Asked Questions
Yes, the tool can run at lower pressure, but never at a pressure higher than the recommended maximum of 6.2 bar (90 psig)[cite: 10, 11]. [cite_start]Note that performance will decrease[cite: 10].
2. What should I consider when choosing the backing pad? [cite_start]Do not use backing pads with a lower operating speed than 10,000 OPM free speed[cite: 10]. [cite_start]Only use pads and abrasives intended for the machine[cite: 14].
3. How do I prevent the workpiece from sticking to the surface with CV machines?On Central Vacuum (CV) machines, excessive vacuum can occur when sanding a flat surface, causing the sanding pad to stick. [cite_start]This vacuum must be reduced using the vacuum system[cite: 14].
4. How often should I lubricate the tool manually? [cite_start]If an FRL unit is not used and you lubricate the tool manually, this should be done daily, especially with frequent use or if the sander loses speed or power[cite: 10].
5. What should I do if I experience pain in my hand/wrist? [cite_start]You must stop performing this work immediately and seek medical advice[cite: 1]. [cite_start]Hand, wrist, and arm injuries can occur from repeating the same work movements or overexposure to vibrations[cite: 1].
Conclusion
[cite_start]The Mirka Planar Sander 10,000 OPM is a high-performance tool that enables precise and low-fatigue sanding on almost all materials[cite: 10, 1]. [cite_start]Consistent adherence to the recommended compressed air settings (6.2 bar), daily maintenance/lubrication, and observance of the safety and application instructions are essential to ensure maximum performance and lifespan of the machine[cite: 10, 1]. An optimally maintained Mirka sander is the guarantee for a perfect surface finish.
