SATAjet 5000 B: Practical Settings, Workflow and Buying Advice
This guide shows how to achieve stable results quickly in the workshop with the SATAjet 5000 B (HVLP/RP): recommended basic settings (as reference values), clean professional workflow, troubleshooting and maintenance – plus direct buying CTAs.

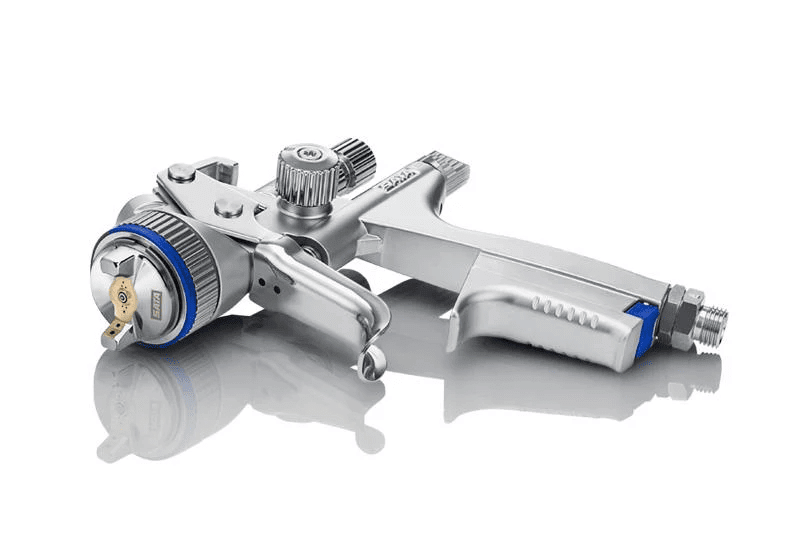

Product Overview (Variants & Application)
| Variant | Application | Advantages |
|---|---|---|
| SATAjet 5000 B HVLP | Finest atomization, high transfer rate | Material-saving, controlled spray pattern |
| SATAjet 5000 B RP | Fast work with high surface coverage | High throughput, excellent surface quality |
Recommended Basic Settings (Reference Values)
Use these starting points and adjust depending on paint, temperature, and nozzle set. Please refer to the manual for binding specifications.
- Nozzle size: often 1.2–1.4 mm for base/clear coats (select per material data sheet)
- Air pressure at gun inlet: HVLP approx. 2.0 bar; RP approx. 2.0–2.5 bar
- Spray distance: HVLP rather short, RP moderate (uniform overlap ~70%)
- Material flow control: middle position as a start; then adjust after testing
- Fan pattern: Wide fan for surfaces, round spot spray for edges/transitions
Note: Values are reference points. Exact target values and air consumption per nozzle/technology see manual.
Professional Workflow (5–7 Steps)
- Prepare substrate: clean, degrease, dust-free; apply masking neatly.
- Select nozzle set (per material data sheet) and preset gun according to reference values.
- Test spray pattern: small test area, check coverage/flow; fine-tune air/material.
- Application: even passes, approx. 70% overlap, consistent speed/angle.
- Intermediate coat: flash-off time per paint manufacturer; remove dust inclusions locally.
- Finish: clear coat/top layer with stable edge/overlap, control flow-out.
- Final check: check under light/reflection, perform fine correction passes if needed.
Troubleshooting (Typical Cases)
Maintenance (Short & Effective)
- After each use, flush/clean material-carrying parts; do not damage nozzle/air cap.
- Regularly check/replace seals, needle guide, and spring tension.
- Oil moving parts sparingly (manufacturer-approved; no material-contact surfaces).
- Filter/dry air supply; avoid water/oil in lines.
- Store safely, dry, dust-protected; use protective cap.
FAQ
Which nozzle is suitable for base/clear coat? Often 1.2–1.4 mm is common – the paint’s data sheet takes priority.
How do I start with air pressure? With tried-and-tested reference values and a test spray pattern; exact target values see manual.
Waterborne or solvent-based paints? Both possible – ensure matching nozzle sets and proper cleaning.
How to reduce overspray? Adjust distance/overlap, optimize air pressure within permitted range, consider HVLP.
How often to clean?
After each use; gently, use compatible cleaners, protect seals.
