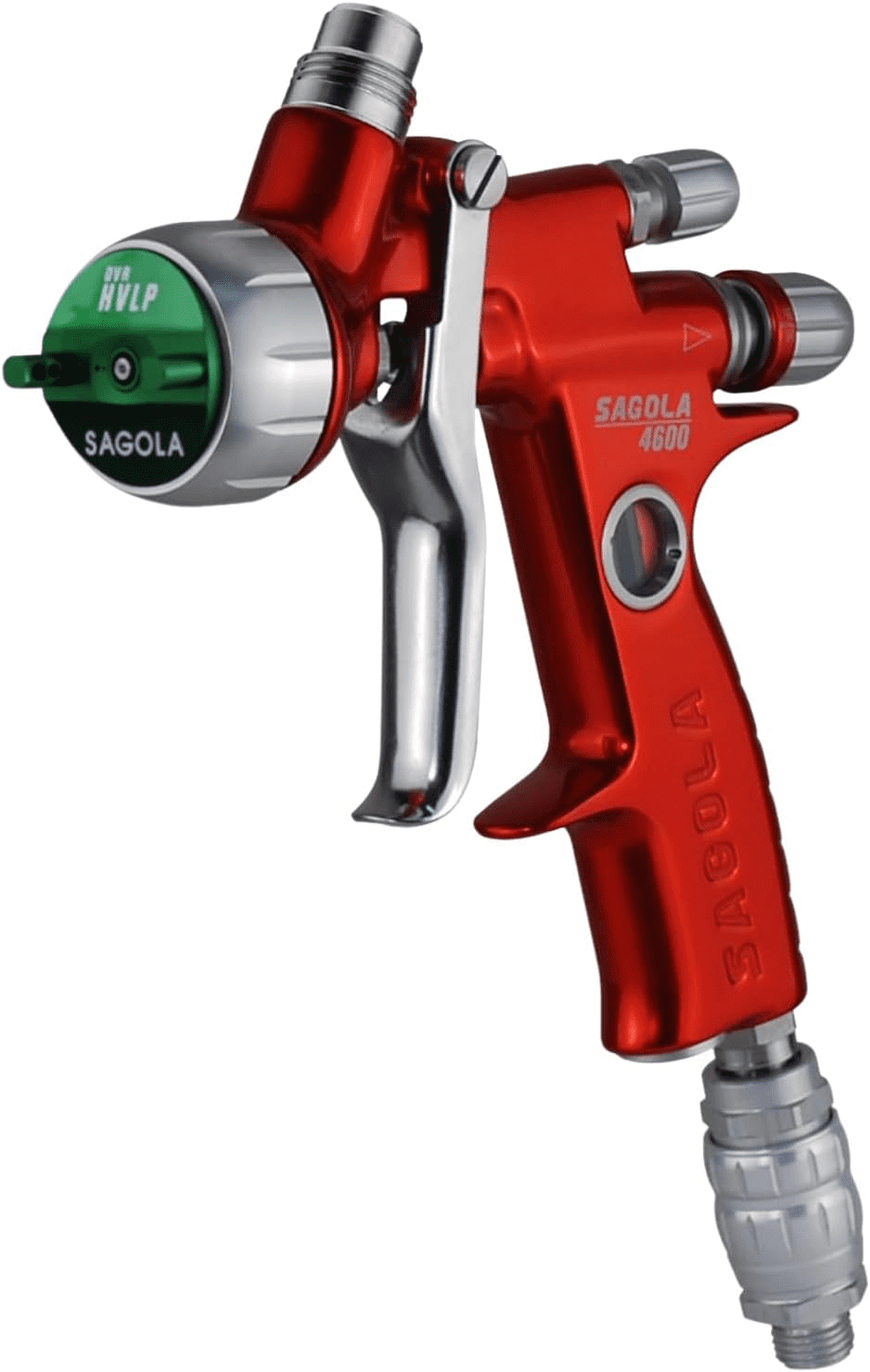

NEW Sagola 4600 Digital (PSI) HVLP spray gun with 1.30XL needle & nozzle – Premium spray gun for a professional finish
€674.73*
% €963.90* (30% saved)Scope of delivery
The Sagola 4600 Digital (PSI) HVLP combines maximum efficiency, the finest spray pattern and digital pressure control in a single, state-of-the-art HVLP paint spray gun. The integrated PSI digital pressure gauge ensures precise reproducibility, while the optimised HVLP air cap reduces overspray and produces an even, soft atomisation – ideal for VOC-compliant base and clear coats.
Functionality & advantages
The HVLP technology of the 4600 series is designed to achieve particularly fine atomisation at reduced pressures
.
The integrated digital pressure gauge (PSI) allows the user to keep a close eye on the working pressure and adjust each
coat with the utmost precision.
Advantages of the 4600 Digital (PSI) HVLP:
• Precise pressure control in PSI for maximum reproducibility
• Soft, even HVLP spray pattern with minimal overspray
• High material transfer at low pressures – VOC-compliant
• Ideal for base coats, clear coats and effect paints
• Lightweight, ergonomic design for long painting sessions
• Professional results for spot repairs, partial and full repaints
Typical areas of application
• VOC-compliant basecoats (water & solvent)
• Clear coats with a smooth finish
• Effect & metallic coatings
• Automotive refinish, spot repair, industrial coatings
• Applications with the highest demands on surface quality
Further recommendations
Complementary products & alternatives from our range:
• Sagola Mini Xtreme 0.60 mm
• Sagola PSAM 500 Airless
• Sagola X-4100 – 96 Aircap
• Sagola 3300 GTO HVLP
• Sagola X-4100 2.50 mm
Direct comparison of air cap performance
The following overview shows the performance characteristics of the four most common air caps in the Sagola 4600 series. Ideal for quickly selecting the right air cap for clear coat, base coat or high-performance applications.
| Base Air Cap | Clear Air Cap | Clear Pro Air Cap | HVLP Air Cap | |
| Image |
|
|
|
|
| Output | 191 – 227 g/min | 185 – 219 g/min | 196 – 229 g/min | 170 – 198 g/min |
| Air consumption | 280 L/min | 295 L/min | 315 L/min | 450 L/min |
| Spray width | 290 – 315 mm | 275 – 295 mm | 285 – 310 mm | 290 – 325 mm |
| Spray distance | 18–20 cm | 18–20 cm | 18–20 cm | 15–18 cm |
| Air inlet pressure | 1.8–2.0 bar | 2.2 bar | 2.2 bar | 2.0 bar |
Downloads
Official documents for the Sagola 4600 series – unchanged:
• Product brochure (PDF)
• Exploded view / spare parts (JPG)
• Operating instructions (PDF)
- Product number: 2181253
- Manufacturer: Sagola
Technical details
| Weight without cup | approx. 471 g (digital PSI) |
| Weight with cup | approx. 665–675 g |
| Air inlet | BSP 1/4" M high flow |
| Cup capacity | 650 ml |
| Material contact | Stainless steel, anodised aluminium, POM |
| Discharge quantity | approx. 180–210 g/min |
| Air consumption | approx. 240–260 L/min |
| Spray width | approx. 260–290 mm |
| Recommended spraying distance | 15–18 cm |
| Working pressure | approx. 1.3–1.5 bar (HVLP) |
