Manufacturer no.: 10142407

Sagola

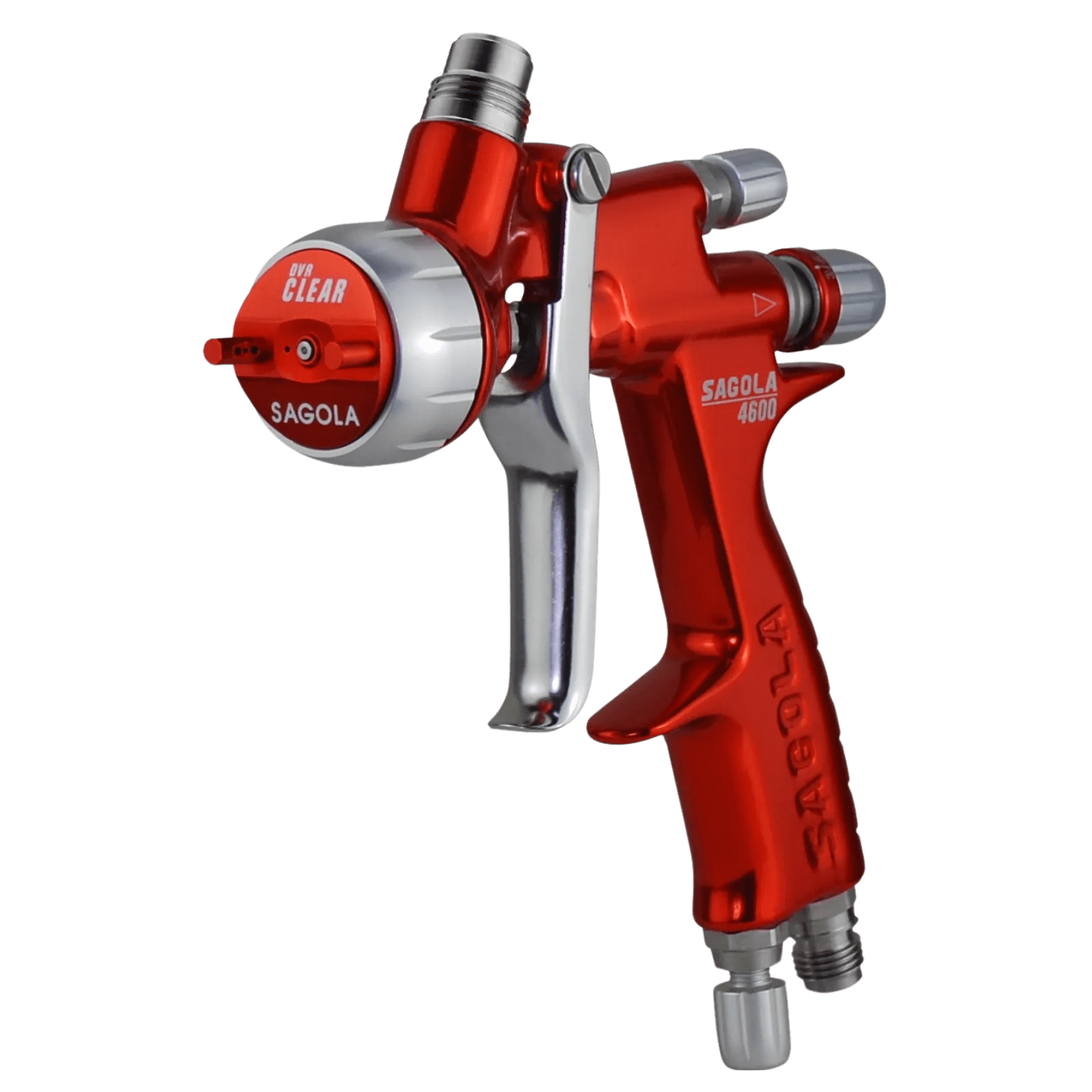

NEW Sagola 4600 clear coat spray gun with 1.30 needle & nozzle – premium spray gun for a professional finish

€538.95*

% €769.93* (30% saved)

Prices include VAT plus shipping costs

€452.90*

Price excl. VAT

14 days free exchange

Free shipping within Germany

Luftkappentyp

Klarlack Lackierpistole

Nadel- und Düsengröße

1,2

1,3

1,4

1,20XL

1,30XL

EU B2B: net prices with valid VAT ID

Scope of delivery

1 Stück

Also interesting

Product information

The Sagola 4600 clear coat spray gun is the ideal choice for high-gloss clear coat systems and demanding top coats. Equipped with the DVR CLEAR air cap, it delivers an exceptionally smooth finish, high material efficiency and a particularly controlled spray pattern – perfect for high-quality automotive paintwork, spot repairs or complete repaints at a premium level.

Functionality & advantages

DVR CLEAR technology works with very even air distribution for an extremely fine, soft spray pattern – specially designed for clear coats and high-viscosity materials. This results in particularly even surfaces with minimal texture.

Advantages of the Sagola 4600 clear coat version:

• Outstanding high-gloss surfaces without orange peel
• Very fine atomisation thanks to DVR CLEAR technology
• Optimised material flow for perfect flow properties
• High transfer rate & reduced overspray
• Stable spray jet for large-area clear coat applications
• Ideal for VOC clear coats and modern 2K systems

Areas of application

• 2K clear coats (VOC & conventional)
• High-gloss finish for automotive refinishing
• Spot repairs & full repaints
• Premium top coats & transparent protective coatings
• Applications with the highest optical quality requirements

Further recommendations

Matching items from our range:

• Sagola Mini Xtreme 0.60 mm
• Sagola PSAM 500 Airless
• Sagola X-4100 – 96 Aircap
• Sagola 3300 GTO HVLP
• Sagola X-4100 2.50 mm

Direct comparison of air cap performance

The following overview shows the performance characteristics of the four most common air caps in the Sagola 4600 series. Ideal for quickly selecting the right air cap for clear coat, base coat or high-performance applications.

	Base Air Cap	Clear Air Cap	Clear Pro Air Cap	HVLP Air Cap
Output	191 – 227 g/min	185 – 219 g/min	196 – 229 g/min	170 – 198 g/min
Air consumption	280 L/min	295 L/min	315 L/min	450 L/min
Spray width	290 – 315 mm	275 – 295 mm	285 – 310 mm	290 – 325 mm
Spraying distance	18–20 cm	18–20 cm	18–20 cm	15–18 cm
Air inlet pressure	1.8–2.0 bar	2.2 bar	2.2 bar	2.0 bar

Downloads

Official documentation for the Sagola 4600 series:

• Product brochure (PDF)
• Exploded view / spare parts (JPG)
• Operating instructions (PDF)

Order now – brilliant high gloss for professional clear coats.

Questions about air caps, nozzles or paint parameters? Our team will be happy to help.

Enquire now
