Manufacturer no.: 19Z101

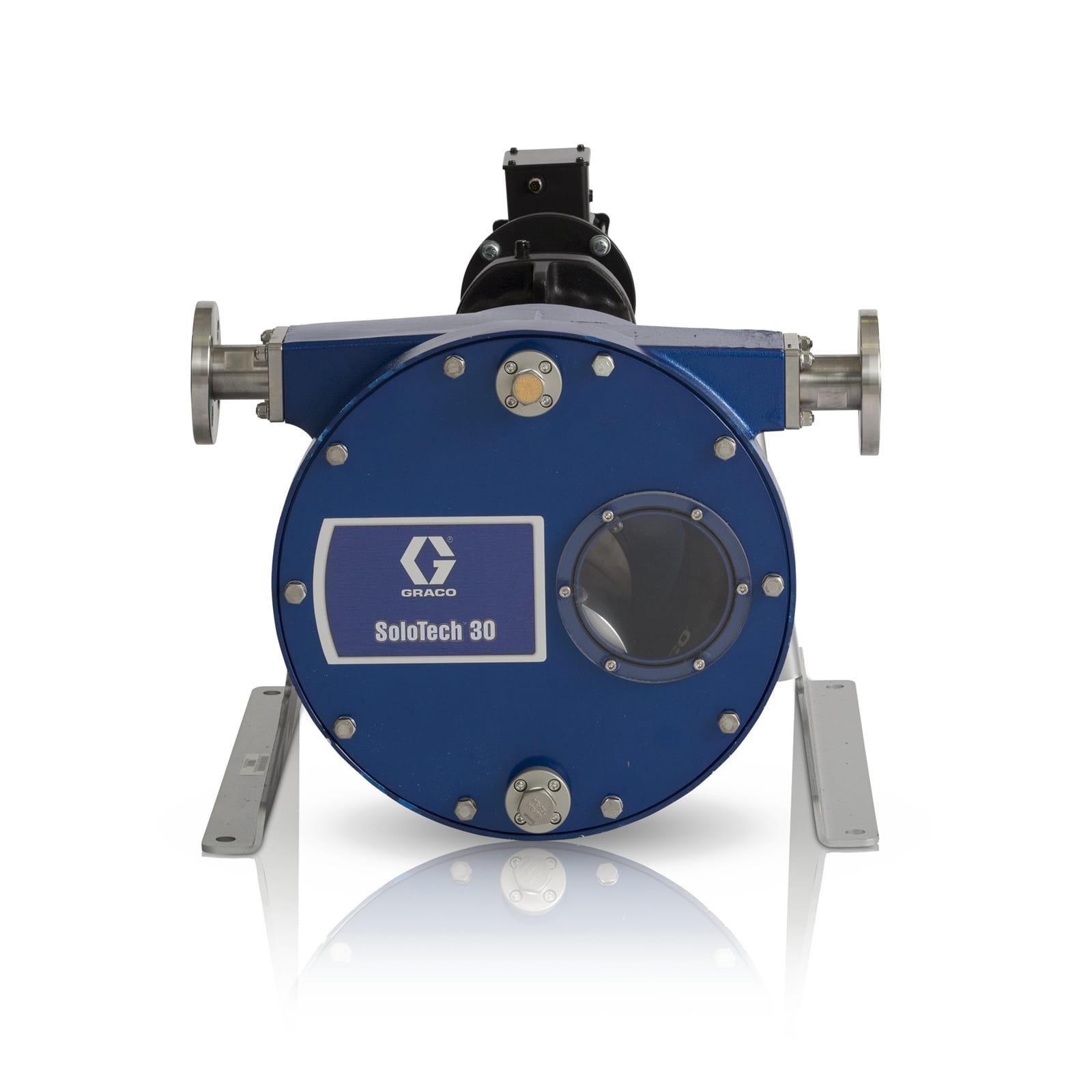

SoloTech™ 30 Hypalon peristaltic pump with CSM hose, PVDF connector and BLDC motor

€10,211.15*

% €12,763.94* (20% saved)

Prices include VAT plus shipping costs

€8,580.80*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Gracos SoloTech 30 Series peristaltic pump design utilises a single reel that compresses an advanced hose through a complete 360° rotation. This innovative design results in longer hose life when pumping corrosive, abrasive or sensitive materials for measurement or transfer.

Pump construction
- Reduced pump weight due to cast aluminium housing
- Improved mounting flexibility with adjustable feet
Electric motor
- Choose between AC and brushless DC models
- Multiple gearboxes available to meet your exact flow rate requirements
- Motors available for hazardous areas
Brushless DC motor
- Batch dosing mode
- Greater flow range thanks to larger changeover ratio
- Maintenance reminders
Single roller design
- Single roller design improves hose life by reducing the number of compressions, temperature and friction
- Constant compression and flow thanks to metal roller with bearings
Removable cover
- Aluminium covers with larger viewing window facilitate access and visibility of internal parts
- The optional leak detector is mounted on the cover
Hose connection assembly
- Easy to install or remove - no special tools required
- Available with PVDF and SST connection options
- Floating flange for easy installation
More flow per revolution than conventional designs
Cost effective to maintain - no valves, seals or rings
Pumps are reversible and can be used to drain lines or clear blockages
Longer hose life - only one compression line per revolution

Artikel Art:	Schlauchpumpe
Material Art:	Hypalon
Sitz Material Art:	PVDF

More information

Product number: 1039415
Manufacturer: Graco
EAN: 00755652327295
Weight: 152.407 kg

Technical details

Specifications

Operating specifications

UPC product	755652327295
Division	PRO
Price Block	1 91
Country of origin	US
Unit	EA
Height	0 CM
Length	0 CM
Width	0 CM
Volume	0 M3
Shipping weight	152.41 KG
HTS code (GB)	8413608090
HTS code (EU)	8413608090

Technical

Flow rate (GPM)	16, 025
Gear ratio	36.61: 1
Hose diameter (cm)	3
Hose diameter (in)	1. 2
Hose diameter (mm)	30
Inlet size (cm)	3.2
Inlet size (in)	1-1/4
Inlet size (mm)	32
Maximum flow rate (L/min)	59. 8
Maximum fluid pressure (bar)	9
Maximum fluid pressure (kPa)	900
Maximum fluid pressure (psi)	125
Maximum storage temperature (°C)	40
Maximum storage temperature (°F)	104
Minimum flow rate (GPM)	0. 43
Minimum storage temperature (°C)	-10
Minimum storage temperature (°F)	14
Model	SoloTech
Outlet size (cm)	12. 5
Outlet size (in)	4. 92
Outlet size (mm)	125
Overall height (cm)	4 7
Overall height (in)	18. 5
Overall height (mm)	4 7 0
Overall Length (cm)	103
Overall Length (in)	40. 4
Overall Length (mm)	1026
Overall width (cm)	59
Overall width (in)	23. 3
Overall width (mm)	5 92
Power Rating (HP)	300
Power rating (kW)	2 24
Power rating (W)	2 23710
Pump speed (RPM)	2 -92
Series	i30
Volume per cycle (gal)	1. 8
Volume per cycle (L)	7
Housing material	Powder-coated aluminium
