Manufacturer no.: 19Z009

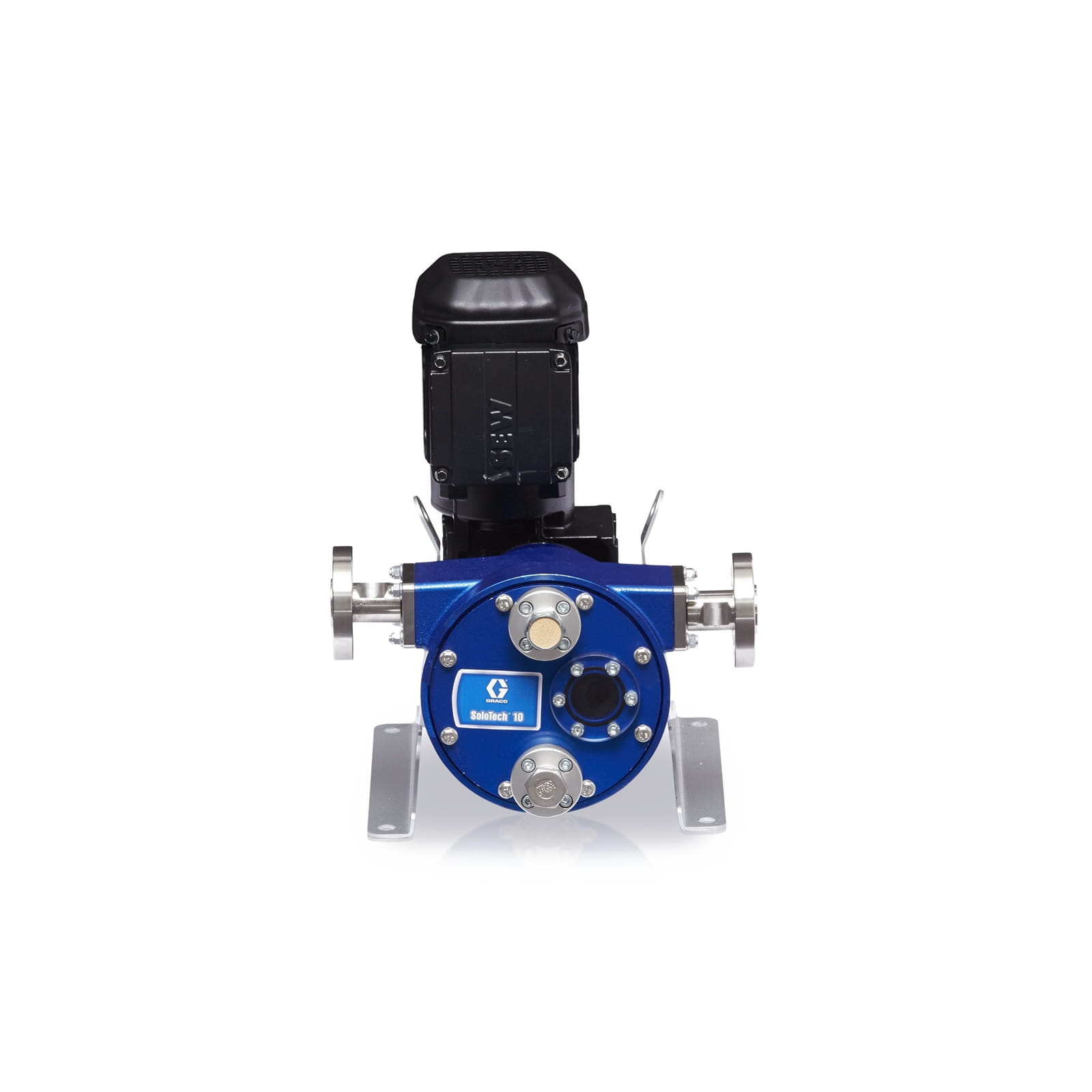

SoloTech™ 10 natural rubber peristaltic pump high speed with natural rubber hose, 316 stainless steel connector and AC motor

€4,265.71*

% €5,170.55* (17.5% saved)

Prices include VAT plus shipping costs

€3,584.63*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

The Gracos SoloTech 10 Series peristaltic pump design utilises a single reel that compresses an advanced hose through a complete 360° rotation. This innovative design results in longer hose life when pumping corrosive, abrasive or sensitive materials for measurement or transfer.

Peristaltic peristaltic pumps for industrial measurement and transfer

More flow per revolution than conventional designs
Cost-effective to maintain - no valves, seals or rings
Pumps are reversible and can be used to drain lines or clear blockages
Longer hose life - only one compression line per revolution

Item type:	Schlauchpumpe
Type of material:	Edelstahl

More information

Product number: 1038655
Manufacturer: Graco
EAN: 00755652324577
Weight: 35.334 kg
Length: 640 mm
Width: 600 mm
Height: 420 mm

Technical details

Specifications

Operating specifications

UPC product	755 6 52324577
Division	PRO
Price Block	1 91
Country of origin	US
Unit	EA
Height	42 CM
Length	64 cm
Width	60 cm
Volume	. 161 m³
Shipping weight	35.33 KG
HTS code (EU)	8413810090
HTS code (GB)	8413810090

Technical

Flow rate (GPM)	0. 08
Gear ratio	157.43: 1
Hose diameter (cm)	1
Hose diameter (in)	0. 4
Hose diameter (mm)	10
Inlet size (cm)	0. 95
Inlet size (in)	3/8
Inlet size (mm)	9. 5
Maximum flow rate (L/min)	2. 5
Maximum fluid pressure (bar)	9
Maximum fluid pressure (kPa)	900
Maximum fluid pressure (psi)	125
Maximum storage temperature (°C)	40
Maximum storage temperature (°F)	1 04
Minimum flow rate (GPM)	0. 013
Minimum storage temperature (°C)	-10
Minimum storage temperature (°F)	14
Model	SoloTech
Outlet Size (cm)	9
Outlet size (in)	3. 54
Outlet size (mm)	90
Overall height (cm)	4 2
Overall height (in)	16. 7
Overall height (mm)	4 24
Overall Length (cm)	41
Overall Length (in)	16. 2
Overall Length (mm)	4 11
Overall width (cm)	33
Overall width (in)	13
Overall width (mm)	330
Pump Speed (RPM)	2-11
Series	i10
Volume per cycle (gal)	7
Volume per cycle (L)	0. 026
Housing material	Powder-coated aluminium
