Manufacturer no.:
AP2614
Reactor A25 complete dosing unit, Fusion AP gun, wheels, DataTrak, 230/400 V
€22,900.36*
% €26,941.60* (15% saved)Ready for shipping in 5-8 Werktage
Also interesting
Product information

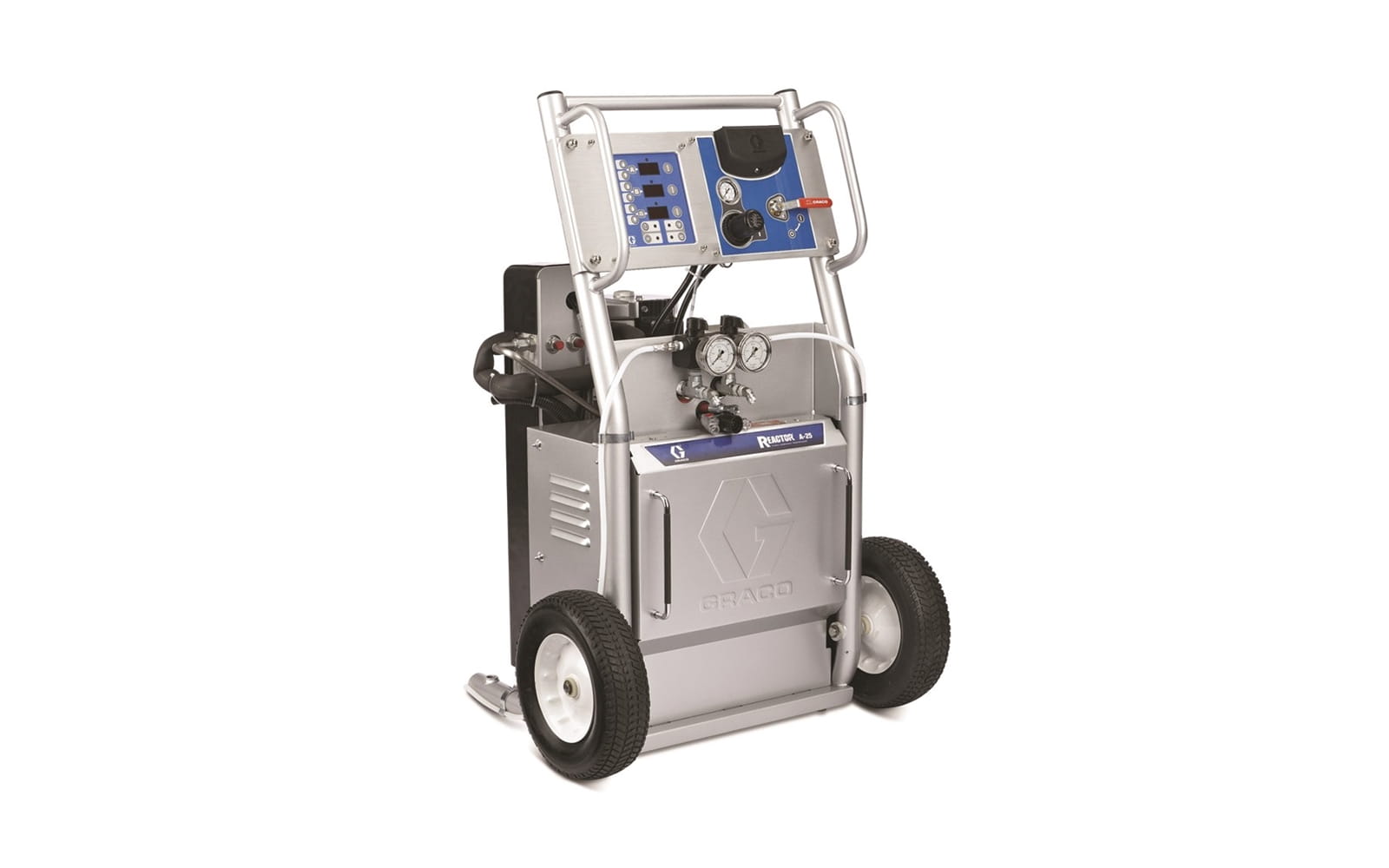

The Reactor A-25 is a foam dispenser designed by Graco to provide the reliability needed for the job. It has constant temperature control, even when spraying at maximum flow rates - resulting in better quality foam.
For spraying foam insulation - applies up to 11.4 kg (25 lb) per minute.
- Maintains temperature settings for better yields
- Ensures consistent output pressure for a uniform spray pattern
- Hassle-free operation and maintenance
- Best choice for affordability and durability
DataTrak control
- Resettable counter to track material consumption
Three heating zones
- Three independent heat zones - ISO, resin and hose heater
- Precise heat control for reliable spraying to handle different chemical viscosities
- Digital temperature controller
Circuit manifold
- The quick and easy way to equalise pressure fluctuations in the system.
NXT air motor
- Higher efficiency due to low air consumption
- Low operating noise level due to silencer
- The air valve ensures a smooth and fast changeover
NXT air motor
- Higher efficiency due to low air consumption
- Low operating noise level due to silencer
- The air valve ensures a smooth and quick changeover
Quickly dismantled lower pumps
- Easy disassembly and maintenance
| Air inlet size (inches): | 1/2 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | Spray foam |
| Applicator type: | Hand- |
| Compatible material: | Multicomponent materials |
| Component A, inlet size (inch): | 3/4 |
| Component A, inlet size (mm): | 19.05 |
| Component A, thread gender: | Internal thread |
| Component A, thread type: | NPT |
| Component B, inlet size (inch): | 3/4 |
| Component B, inlet size (mm): | 19.05 |
| Component B, thread gender: | Internal thread |
| Component B, thread type: | NPT |
| Component type: | Two-component |
| Frequency (Hz): | 50/60 |
| Gender of the air inlet thread: | Internal thread |
| Gun type: | Fusion AP |
| Hose length (m): | 15, 3 |
| Includes: | Dispenser, Fusion AP Gun, Heated Hose, Wheels, DataTrak |
| Material application.: | Polyurethane foam |
| Maximum air supply pressure (bar): | 8.62 |
| Maximum air supply pressure (kPa): | 862 |
| Maximum conveying capacity (kg/min): | 11.4 |
| Maximum inlet air pressure (psi): | 125 |
| Maximum material temperature (°C): | 88 |
| Maximum material viscosity (cP): | 1500 |
| Maximum mixing ratio: | 1:1 |
| Minimum material viscosity (cP): | 250 |
| Model: | reactor |
| Noise pressure level, (dB(A)): | 70.2 |
| Phases: | 1, 3 |
| Print type: | Low pressure |
| Product type: | multi-component |
| Rated power (W): | 9000 |
| Rated power (kW): | 9 |
| Series: | A-25 |
| Sink type: | solvent |
| Size of the air inlet (cm): | 1.27 |
| Size of the air inlet (mm): | 12.7 |
| Sound level, (dB(A)): | 80.1 |
| Supply voltage: | Air |
| System includes: | DataTrak and wheels |
| Total depth (cm): | 76.2 |
| Total depth (mm): | 762 |
| Total height (cm): | 110.5 |
| Total height (mm): | 1105 |
| Total width (cm): | 73.7 |
| Total width (mm): | 737 |
| Type: | Complete dosing device |
| Voltage (V): | 230, 400 |
| Weight (kg): | 140.6 |
| Wetted material: | Mild steel, stainless steel, chrome, aluminum, fluoroelastomer, PTFE, nylon |
More information
- Product number: 1037842
- Manufacturer: Graco
- EAN: 00633955203044
- Weight: 201.26 kg
