Manufacturer no.: 26B571

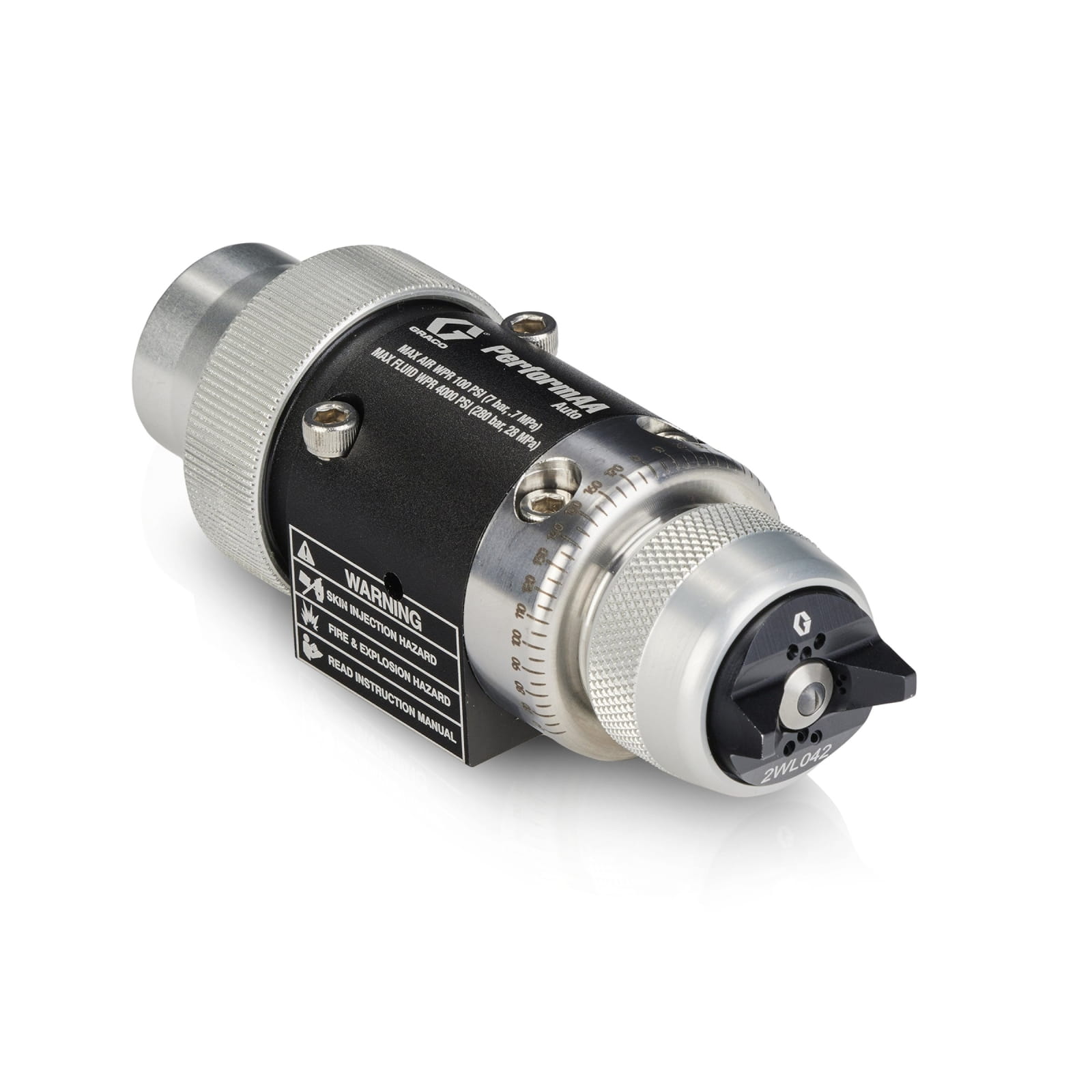

PerformAA Auto Air Assist spray gun with Wood Lacquer (WL) air cap

€1,093.31*

% €1,457.75* (25% saved)

€918.75*

Price excl. VAT

Ready for shipping in 5-8 Werktage

Also interesting

Product information

The automatic air-assisted spray gun is particularly powerful when spraying wood varnish.

The automatic air-assisted spray gun is easy to set up, use and maintain on flat lines, robots, reciprocators and other automatic systems
Each air cap is geometrically designed to provide the finest atomisation with the least effort when spraying a paint-on-wood product.
Air cap angle indicators help operators and maintenance technicians set the exact alignment of the air caps and quickly repeat adjustments. For greater accuracy and simplicity, especially when finishing flat lines, add Graco's 26B736 gauge kit.

Air inlet size (inches):	1/4
Air inlet thread type:	NPSM
Applicator type:	Automatically
Compatible material:	Varnishes, latex, multi-component materials, solvent-based, top coats, varnish
Gender of the air inlet thread:	External thread
Gun activation:	Automatically
Gun type:	Air-assisted pistol
Gun weight (g):	544
Gun weight (kg):	0.544
Gun weight (oz):	19.2
Housing material:	metal
Material inlet thread type:	NPSM
Maximum air inlet pressure (MPa):	0.7
Maximum air pressure (MPa):	0.7
Maximum air pressure (bar):	7
Maximum air pressure (kPa):	700
Maximum air pressure (psi):	100
Maximum air supply pressure (bar):	7
Maximum air supply pressure (kPa):	700
Maximum inlet air pressure (psi):	100
Maximum material pressure (MPa):	28
Maximum material pressure (bar):	280
Maximum material pressure (kPa):	28000
Maximum material pressure (psi):	4000
Maximum material temperature (°C):	49
Noise pressure level, (dB(A)):	91.75
Product type:	spray gun
Rinsing method:	Air
Series:	car
Size of the air inlet (cm):	635
Size of the air inlet (mm):	6.35
Size of the material inlet opening (cm):	635
Size of the material inlet opening (inches):	1/4
Size of the material inlet opening (mm):	6.35
Sound level, (dB(A)):	91.9
Spraying technology:	Air-assisted
Total height (cm):	7.6
Total height (mm):	76.2
Total length (cm):	13
Total length (mm):	135
Total width (cm):	5.1
Total width (mm):	50.8
Type:	spray gun
Vent type:	vent valve
