Manufacturer no.: G15B17

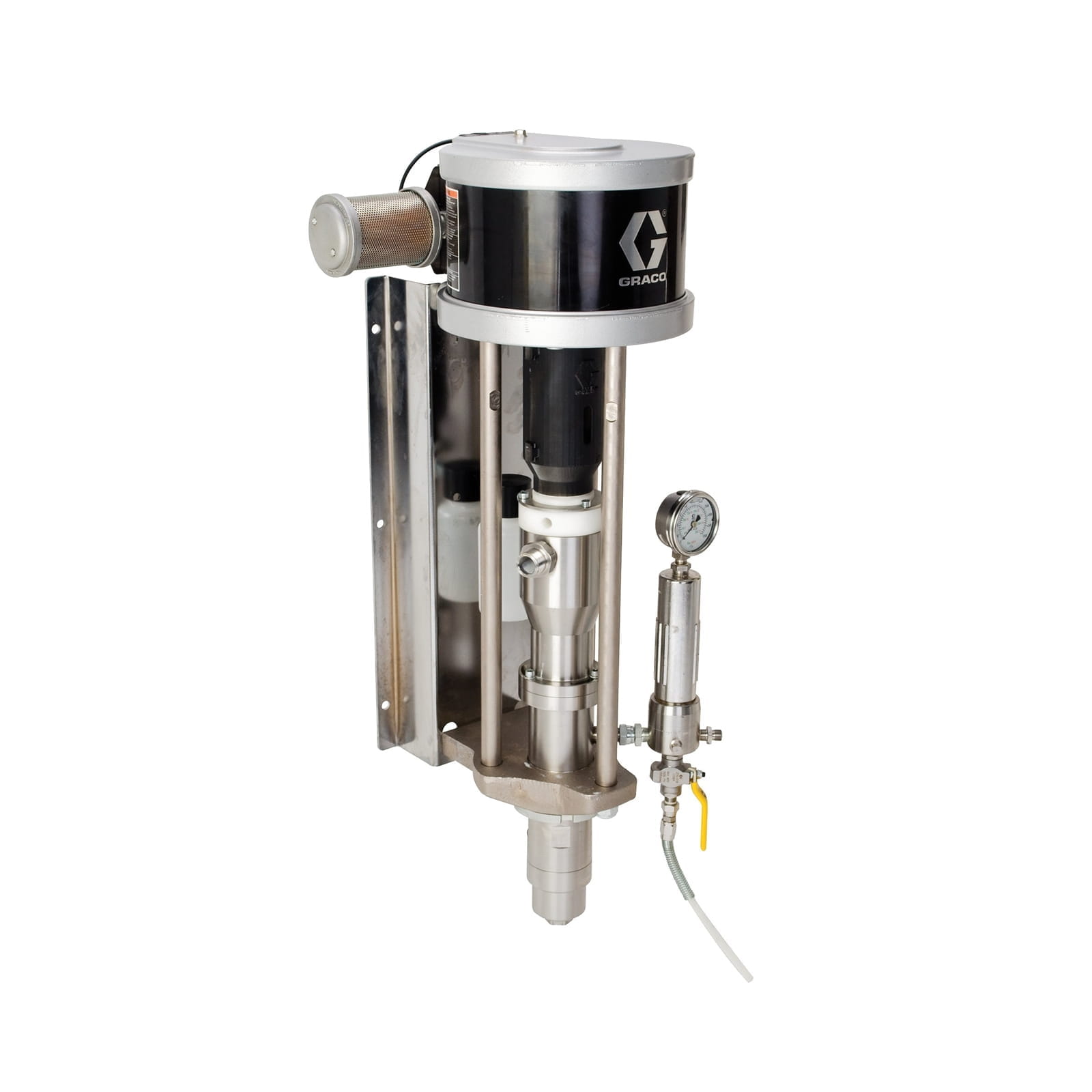

Merkur bellows model, complete pump unit with 15:1 ratio and U-seal, wall mounting, material filter

€5,906.57*

% €7,875.42* (25% saved)

Prices include VAT plus shipping costs

€4,963.50*

Price excl. VAT

Ready for shipping in 5-8 Werktage

14 days free exchange

Free shipping within Germany

Also interesting

Product information

Graco's Merkur bellows piston pumps are characterised by their low maintenance requirements, as the seals do not come into contact with the outside air. Due to their design, these pumps do not require a conventional throat seal; this ensures particularly high reliability with moisture-sensitive materials.

Air motor with state-of-the-art technology
Low air consumption for improved efficiency
The simple design of the air motor with just a few components shortens repair times
Optimised design for easy flushing, enables quick colour changes and reduces material loss
Pump is made from 300 grade stainless steel for superior durability
Fewer parts and hot-swappable bellows seals for ease of maintenance, lower total cost of ownership and less downtime

Application:	supply
Assembly:	Wall mounting
Compatible material:	Water Based, Solvent Based, High Solids, Xirallic, CARC, Metal, Top Coats, Stains, Lacquer, UV Coating
Gender of the material inlet thread:	External thread
Gender of the material outlet thread:	External thread
Gun technology:	Basic device
Gun type:	No applicator
Includes:	Pump only air control, fluid filter, U-seal
Material:	stainless steel
Material inlet thread type:	NPT
Material outlet size (cm):	9,525
Material outlet size (mm):	9.53
Material outlet thread type:	NPT
Maximum operating pressure (MPa):	10.3
Maximum operating pressure (kPa):	10300
Maximum operating pressure (psi):	1500
Model:	Mercury
Motor type:	Pneumatic
Mounting position:	Wall mounting
Number of pieces:	2
Permissible operating pressure (bar):	103
Pistol model:	No applicator
Product type:	Basic device
Pump type:	Pneumatic piston pump
Series:	Bellows
Size of the material inlet opening (inches):	3/4
Size of the material outlet opening (inches):	3/8
Transmission ratio of the pump:	15:1
Type:	Pneumatic piston pump
Wetted material:	stainless steel
