Product images may vary
Manufacturer no.: 17H455

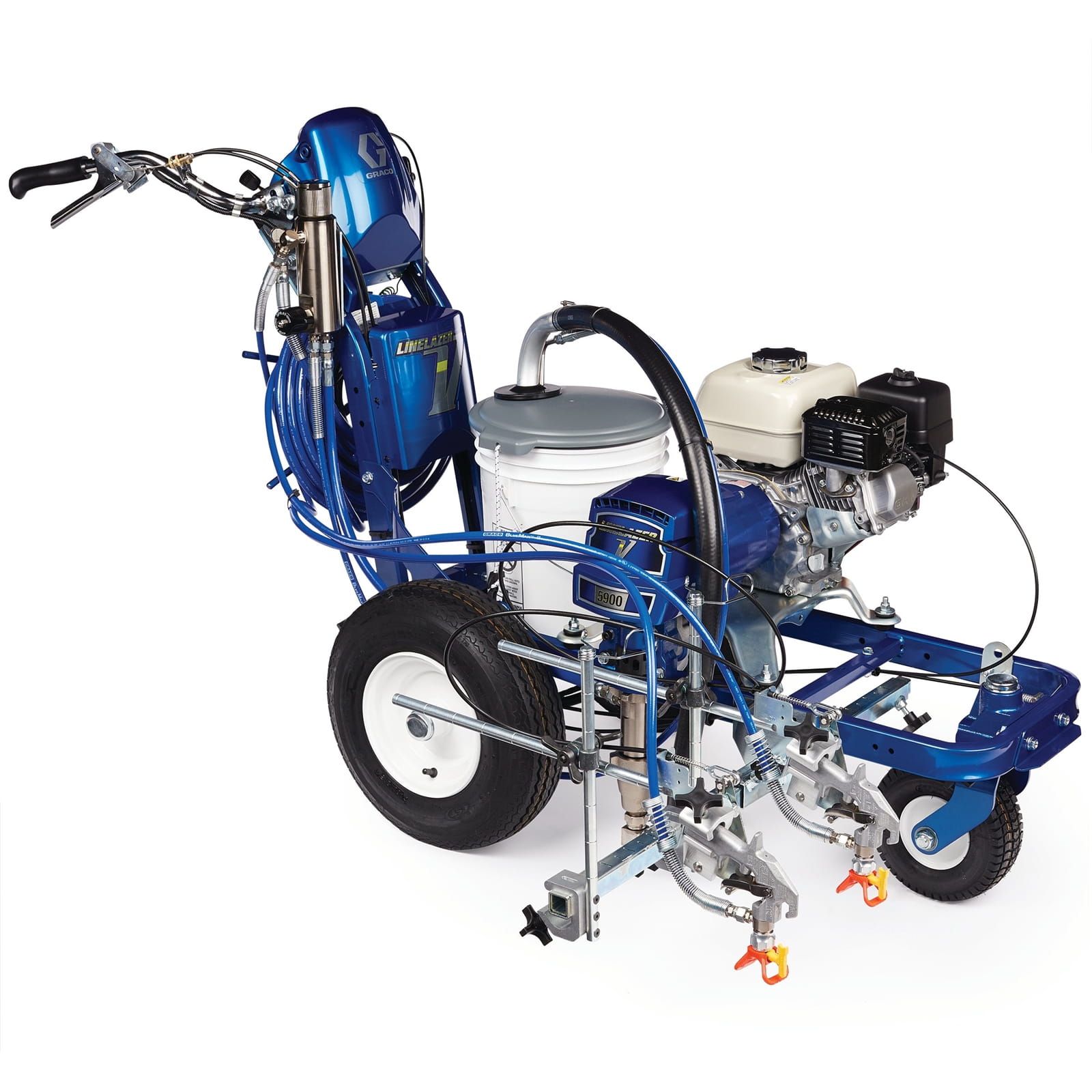

LineLazer V 5900 Standard series petrol-powered airless line marker, 2 manual guns

€25,089.96*

Prices include VAT plus shipping costs

€21,084.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange
Shape Created with Sketch. Free shipping within Germany
Also interesting
Product information

When it's time for airless line marking with 1 or 2 guns and extra power, a LineLazer V 5900 Standard Series line marker is an excellent choice. These durable line markers deliver consistent lines for all your basic marking needs.

The LineLazer V Standard Series is ideal for contractors with higher production, who are performing and considering larger re-marking jobs with simple spray pattern applications that require a single colour or single or dual gun marking solution.

  • LiveLook display with SmartControl
    • Track, measure and control every aspect of your job
    • Real-time information for perfect lines
  • Honda® GX160 engine
    • Reliable and easy to start
    • Favoured by users: outstanding performance and proven reliability
    • Oil level warning shuts down the engine to prevent damage if the oil level drops too low
  • EasyMark gun adjustment system
    • Uncomplicated marker guidance system
    • Easy gun adjustment: on/off, forwards/backwards
    • Perfect gun set-up - every time
  • EZ Align wheel system
    • Simple front wheel alignment ensures a straight line with the device
    • Intuitive design, no special tools required
  • DualComfort handlebar system
    • Suitable for all users and easy to adjust
    • Solid four-bolt design
  • QuickSelect gun selection aid
    • Easy control of two guns with just one chrome gun lever
  • Endurance Chromex pump
    • Durable pumps deliver precise flow for a variety of marking materials
    • Industry's best pump performance with field-proven design.
    • Handle the most demanding materials with a rod treated for longer durability - 4x harder than ordinary chrome
  • Easy Out pump filter
    • Easy pump maintenance and less clogging
    • Less dirt and fewer clogged nozzles thanks to inside-out design
Compatible material: Colors for road markings
Compatible surfaces: road, lawn
Fuel tank capacity (L): 3.6
Gun activation: 2 Manuals
Includes: Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8" x 50 ft BlueMax II Airless Hose, 3/8" x 3 ft BlueMax II Airless Whip End, TSL, 4 oz
Maximum delivery rate (L/min): 6
Maximum nozzle size (cm): 737
Maximum nozzle size (inch): 29
Maximum nozzle size (mm): 7,366
Maximum operating pressure (kPa): 2270
Maximum operating pressure (psi): 3300
Maximum sound pressure level (dB(A)): 87.1
Model: LineLazer V
Motor model: GX160
Number of colours: Monochrome
Number of guns: 2
Number of pumps: 1
Permissible operating pressure (bar): 227
Product series: Standard
Pump type: Endurance
Rated power (kW): 3.73
Series: 5900
Supply voltage: petrol
Total height (cm): 113.03
Total height (mm): 1130.3
Total length (cm): 173.36
Total length (mm): 1733.55
Total width (cm): 87.0
Total width (mm): 870
Type: Hand-held line marking device
Weight (kg): 113
More information
  • Product number: 1036612
  • Manufacturer: Graco
  • EAN: 00755652320029
  • Weight: 162.738 kg

Technical details

Operating specifications
UPC product 755652320029
Division CED
Price Block 018
Country of Origin US
Unit EA
Technical
Engine brand Honda
Engine model GX160
Fuel tank capacity (gal) 0. 95
Fuel tank capacity (L) 3. 6
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 50 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum flow rate (L/min) 6
Maximum Sound Pressure Level (dB(A)) 87. 1
Maximum tip size (cm) 0. 0737
Maximum tip size (in) 0. 029
Maximum tip size (mm) 0. 7366
Maximum working pressure (bar) 2 27
Maximum working pressure (kPa) 2 270
Maximum working pressure (psi) 3 3 00
Model LineLazer V
Number of Colours One Colour
Number of Guns 2
Number of Pumps 1
Overall Height (cm) 113. 03
Overall Height (in) 44. 5
Overall height (mm) 1130. 3
Overall Length (cm) 173. 36
Overall Length (in) 68. 25
Overall Length (mm) 1733. 55
Overall width (cm) 87
Overall width (in) 34. 25
Overall width (mm) 870
Power Rating (HP) 5
Power rating (kW) 3. 73
Series 5 9 00
Weight (kg) 113
Recommended annual usage Up to 1,000 gallons per week
Product Series Standard

Further manufacturer information

Produktbroschüre
Produkthandbücher
Verkaufsliteratur
