Manufacturer no.:
659400

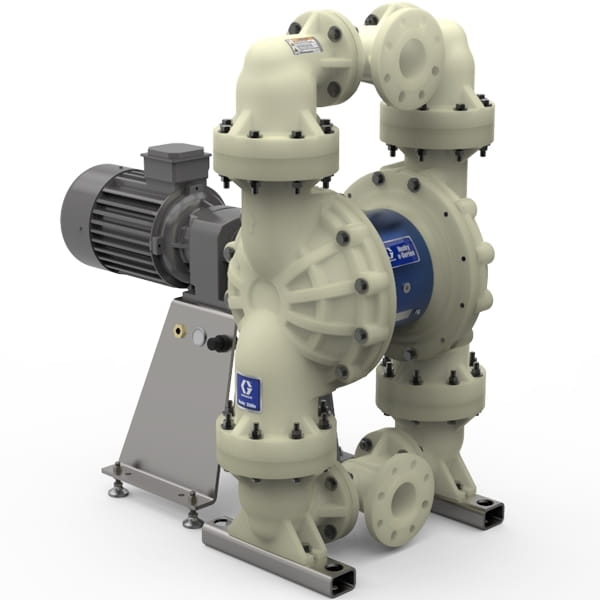

Husky 3300e 3" electric diaphragm pump PP; 7.5 hp AC motor, no KMPSR, centre flange, AL centre section, PP seat, PT ball, PT diaphragm
€18,854.06*
% €20,111.00* (6.25% saved)Ready for shipping in 5-8 days
Also interesting
Product information
The solution for demanding conveying tasks. Reliably pump longer with proven quality and leading technology from Graco. Electrically driven Husky double diaphragm pumps are at the cutting edge of pump technology, giving you a big reduction in operating costs and more control over your process.
Typical applications include chemicals, paints, oil and gas, water and wastewater in manufacturing and mine dewatering.
- Flow rate up to 833 l/min
- Up to 80 % reduction in energy consumption compared to air-operated diaphragm pumps
- Pump spare parts last up to 5 times longer compared to other brands
- Pump solids, slurries and abrasive materials without damage to the pump or material shear
- Low pulsation without costly pulsation dampeners
- Noise level in production close to 0 dB
- Accurate material dosing with frequency converters (sold separately)
- No expensive, wear-sensitive mechanical seals
- Dry-running, self-priming and switch-off under pressure
| Air inlet size (inches): | 375 |
|---|---|
| Air inlet thread type: | NPT |
| Application: | industry |
| Ball material: | TPE (Hytrel) |
| Connection type: | Flange |
| Distributor O-ring material: | No |
| Distributor configuration: | Connection in the centre: |
| Gender of the air inlet thread: | Internal thread |
| Material: | Polypropylene |
| Material in the liquid housing: | aluminum |
| Material of the centre housing: | aluminum |
| Material outlet size (cm): | 7.6 |
| Material outlet size (mm): | 76.2 |
| Maximum air pressure (MPa): | 0.55 |
| Maximum air pressure (bar): | 5.52 |
| Maximum air pressure (kPa): | 551.58 |
| Maximum air pressure (psi): | 80 |
| Maximum current (A): | 20/10A |
| Maximum delivery rate (L/min): | 832.70 |
| Maximum material pressure (MPa): | 0.55 |
| Maximum material pressure (bar): | 5.52 |
| Maximum material pressure (kPa): | 551.58 |
| Maximum material pressure (psi): | 80 |
| Maximum motor speed (rpm): | 1800s |
| Maximum number of cycles (DH/min): | 185 |
| Maximum operating pressure (psi): | 80 |
| Maximum operating temperature (°C): | 104.44 |
| Maximum solids size (cm): | 1.27 |
| Maximum solids size (mm): | 12.70 |
| Membrane, compatible material: | PTFE |
| Membrane material: | PTFE/Polychl 2-part |
| Minimum current (A): | 0 |
| Minimum operating temperature (°C): | 4.44 |
| Model: | Husky |
| Motor type: | AC motor |
| Seat material: | TPE (Hytrel) |
| Series: | 3300e |
| Size of the material inlet opening (cm): | 7.6 |
| Size of the material inlet opening (inches): | 3 |
| Size of the material inlet opening (mm): | 76.2 |
| Size of the material outlet opening (inches): | 3 |
| Supply voltage: | Electric |
| Type: | Electric diaphragm pump |
| Voltage (V ac): | 230/460V |
| Voltage (V dc): | 0 |
| Wetted material: | Polypropylene, PTFE |
More information
- Product number: 1034855
- Manufacturer: Graco
- EAN: 00755652994657
Technical details
Operating specifications
| UPC product | 755652994657 |
|---|---|
| Division | PRO |
| Price Block | 2 16 |
| Country of origin | US |
| Unit | EA |
| Height | 131 CM |
| Length | 140 CM |
| Width | 114 cm |
| Volume | 2 .091 m³ |
| Shipping weight | 258 kg |
| HTS code (GB) | 8413508090 |
| HTS code (EU) | 8413508090 |
Technical
| Air inlet size (in) | 0. 375 |
|---|---|
| Air inlet thread gender | Female |
| Fluid inlet size (cm) | 7. 6 |
| Fluid inlet size (in) | 3 |
| Fluid inlet size (mm) | 76. 2 |
| Fluid outlet size (cm) | 7. 6 |
| Fluid outlet size (mm) | 76. 2 |
| Maximum air pressure (bar) | 5. 52 |
| Maximum air pressure (kPa) | 552 |
| Maximum air pressure (psi) | 80 |
| Maximum amperage (A) | 2 0 /10A |
| Maximum cycle rate (CPM) | 1 85 |
| Maximum flow rate (GPD) | 1. 2 |
| Maximum flow rate (L/min) | 833 |
| Maximum fluid pressure (bar) | 5. 52 |
| Maximum fluid pressure (kPa) | 552 |
| Maximum fluid pressure (psi) | 80 |
| Maximum motor speed (RPM) | 1 8 00 |
| Maximum operating temperature (°C) | 104. 44 |
| Maximum operating temperature (°F) | 220 |
| Maximum solid size (cm) | 1. 27 |
| Maximum solid size (in) | 0. 5 |
| Maximum solid size (mm) | 12. 7 |
| Minimum amperage (A) | 0 |
| Minimum operating temperature (°C) | 4. 44 |
| Minimum operating temperature (°F) | 40 |
| Model | H usky |
| Overall Height (in) | 23. 6 |
| Power rating (HP) | 7. 5 |
| Series | 3300e |
| Voltage (V DC) | 0 |
| Maximum fluid pressure (MPa) | 0. 55 |
| Maximum air pressure (MPa) | 0. 55 |
| Maximum working pressure (psi) | 80 |
| Diaphragm compatible material | PTFE |
