Manufacturer no.:
25F176

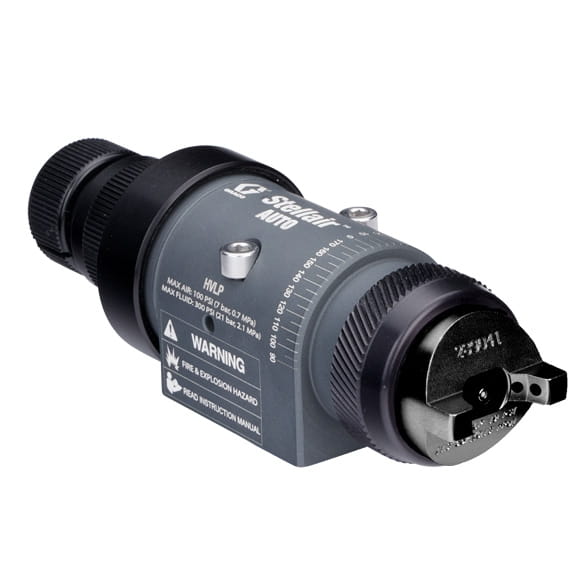

Graco - PISTOLA,AUTO,HVLP,.055,ADJ - Finishing, Guns & Equipment - 25F176
€1,120.98*
% €1,494.64* (25% saved)
Also interesting
Product information
The high-volume, low-pressure air spray gun (HVLP) delivers outstanding results in an automated paint line or in a robotic spray booth.
Automatic air spray guns offer first-class performance for many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.
High-volume, low-pressure air spray guns (HVLP) produce a controlled, low-velocity spray pattern that reduces rebound and overspray while meeting environmental regulations.
General air caps and nozzles produce a uniform, high-pressure, high-quality spray pattern with low atomisation pressure.
Precise click knob for controlling fluid flow with true zero point ensures accurate paint thickness.
The patented spray pattern alignment and deflection tool ensures an accurate and repeatable spray angle. It is easy to attach and remove from the gun to keep production running.
Graco is a world-renowned manufacturer of fluid handling systems and components. Services for various industries. Graco's high-quality products are used for paints, coatings, lubricants, sealants, adhesives and building materials. With decades of expertise, Graco offers innovative solutions for efficient material handling and optimised coating applications and precise dosing technology.
Automatic air spray guns offer first-class performance for many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.
High-volume, low-pressure air spray guns (HVLP) produce a controlled, low-velocity spray pattern that reduces rebound and overspray while meeting environmental regulations.
General air caps and nozzles produce a uniform, high-pressure, high-quality spray pattern with low atomisation pressure.
Precise click knob for controlling fluid flow with true zero point ensures accurate paint thickness.
The patented spray pattern alignment and deflection tool ensures an accurate and repeatable spray angle. It is easy to attach and remove from the gun to keep production running.
Graco is a world-renowned manufacturer of fluid handling systems and components. Services for various industries. Graco's high-quality products are used for paints, coatings, lubricants, sealants, adhesives and building materials. With decades of expertise, Graco offers innovative solutions for efficient material handling and optimised coating applications and precise dosing technology.
More information
- Product number: 2127504
- Manufacturer: Graco
- EAN: 769946736533
Technical details
Operating specifications
| UPC product | 7 6 9946736533 |
|---|---|
| Division | IPD |
| Price Block | 0 53 |
| Country of Origin | US |
| Unit | EA |
| Height | 0 CM |
| Length | 0 CM |
| Width | 0 CM |
| Volume | 0 M3 |
| Shipping weight | 0 KG |
Technical
| Fluid orifice size (mm) | 1. 4 |
|---|---|
| Gun Weight (g) | 430 |
| Gun weight (lb) | 1 |
| Maximum air pressure (bar) | 7 |
| Maximum air pressure (psi) | 100 |
| Maximum fluid temperature (°C) | 4 9 |
| Maximum fluid temperature (°F) | 120 |
| Minimum air inlet pressure (bar) | 3. 4 |
| Minimum air inlet pressure (psi) | 50 |
| Overall height (in) | 1. 9 |
| Overall height (mm) | 48. 3 |
| Overall Length (in) | 5. 9 |
| Overall Length (mm) | 1 5 0 |
| Overall width (in) | 1. 63 |
| Overall width (mm) | 41. 4 |
| Needle tip material | PE EK |
| Fluid adjustment knob | Click ing |
| Sound pressure level (dB(A)) | 79. 79 |
| Maximum fluid working pressure (MPa) | 2. 1 |
| Maximum fluid working pressure (bar) | 2 1 |
| Maximum flow rate (oz/min) | 18 |
| Maximum air pressure (MPa) | 0. 7 |
| Minimum air inlet pressure (MPa) | 0. 34 |
| Gun model | Stella ir |
| Manifold type | Not included |
| Nozzle Size (in) | 0. 055 |
| Nozzle Size (mm) | 1. 4 |
| gun_series | Autom atic |
Further manufacturer information
407194.pdf |3A9358D, Manual, Pistola de pulverizacin con aire Stellair Auto, Instrucciones, espaol |Spanisch |Revision D
407194.pdf |3A9357D, manuel, pistolet de pulvrisation pneumatique automatique Stellair, instructions, franais |Franzsisch |Revision D
407194.pdf |3A9364D, Manuale, Pistola a spruzzatura pneumatica automatica Stellair, Istruzioni, italiano |Italienisch |Revision D
407194.pdf |3A9367D, handbok, Stellair automatisk luftsprutpistol, instruktioner, svenska |Schwedisch |Revision D
407194.pdf |3A9368D, Manual, Pistola de pulverizao de ar automtica Stellair, Instrues, Portugus |Portugiesisch |Revision D
407194.pdf |3A9363D, kyttopas, Stellair automaattinen ilmaruiskutuspistooli, ohjeet, suomi |Finnisch |Revision D
407194.pdf |3A9365D, Hndbok, Stellair automatisk luftassisterte sprytepistoler, norsk |Norwegisch |Revision D
407194.pdf |3A9359D, Klavuz, Stellair Otomatik Haval Pskrtme Tabancas, Talimatlar, Trke |Trkisch |Revision D
407194.pdf |3A9366D, instrukcja obsugi, automatyczny pistolet do natryskiwania powietrznego Stellair, instrukcje, jzyk polski |Polnisch |Revision D
407194.pdf |3A9361D, Manual,Stellair automatisk luftsprjtepistol, instruktioner, dansk |Dnisch |Revision D
407194.pdf |3A9360D, Handbuch, Stellair Auto Luftspritzpistole, Anleitung, Deutsch |Deutsch |Revision D
407194.pdf |3A9362D, Handleiding, Stellair Auto-luchtspuitpistool, Instructies, Nederlands |Niederlndisch |Revision D
407194.pdf |407194EN-E, Manual, Stellair Auto Air Spray Gun, Instructions, English |Englisch |Revision LATEST
