Manufacturer no.:
226946

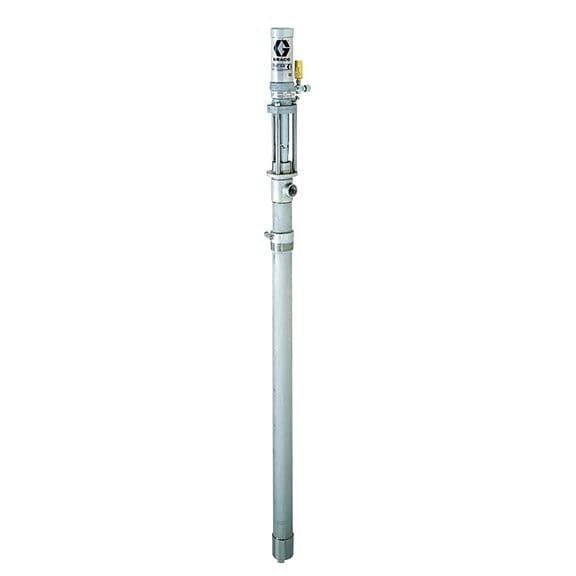

Compressed air-operated Fast-Flo piston barrel pump made of carbon steel/stainless steel, 1:1 ratio and T-packing
Sale price:
€1,304.04
% Regular price: €1,744.54 (25.25% saved)€1,095.83*
Price excl. VAT
Ready for shipping in 5-8 days
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Product number:
1030488
PDF offer
Create PDF offer for this product
Tip: Add multiple products to the cart and create the offer there. Logged in users get an individualized offer.
Our payment methods:
Custom image 1
Question about this product?
We are here for you. Mon-Fri, 9am - 4pm
Also interesting
Product information
Fast Flo 1:1 pumps are designed for an inlet air pressure of up to 1.2 MPa (12 bar, 180 psi) and deliver a consistent, reliable flow. Long barrel models or short models are available for barrel delivery or wall-mounted suction feed. Ideal for low viscosity materials with shallow testing capabilities.
Maximum flow rate of up to 19 litres/min and maximum material operating pressure of up to 12 bar (180 psi). Ideal for low viscosity materials.
- Air-powered for high reliability and low cost
- Delivers up to 19 litres/min
- Available in stainless steel or carbon steel
- UL options available with NFPA installation
| Item type: | Kolbenpumpe |
|---|---|
| Translation ratio: | 1:1 |
| Type of material: | Edelstahl, Kohlenstoffstahl |
More information
- Product number: 1030488
- Manufacturer: Graco
- EAN: 00633955475090
- Weight: 9 kg
- Length: 1350 mm
- Width: 180 mm
- Height: 130 mm
Technical details
Operating specifications
| UPC product | 633955475090 |
|---|---|
| Division | PRO |
| Price Block | 090 |
| Country of Origin | US |
| Unit | EA |
| Height | 13 CM |
| Length | 135 CM |
| Width | 18 cm |
| Volume | 0. 032 m³ |
| Shipping weight | 9 KG |
Technical
| Air inlet size (in) | 1/4 |
|---|---|
| Air inlet size (mm) | 6. 35 |
| Air inlet thread gender | Female |
| Fluid outlet size (mm) | 19. 05 |
| Fluid outlet thread gender | Female |
| Maximum air inlet pressure (bar) | 12. 41 |
| Maximum air inlet pressure (kPa) | 1 2 41 |
| Maximum air inlet pressure (psi) | 180 |
| Maximum continuous cycle rate (CPM) | 100 |
| Maximum flow rate (L/min) | 15. 1 |
| Maximum intermittent cycle rate (CPM) | 4 |
| Maximum working pressure (bar) | 12. 4 |
| Maximum working pressure (kPa) | 1 2 40 |
| Maximum working pressure (psi) | 180 |
| Minimum flow rate (GPM) | 180 |
| Model | Fast-Flo |
| Portable | Non-portable |
| Maximum working pressure (MPa) | 1. 2 |
| Compatible drum height (in) | 34. 6 |
Further manufacturer information
Produktbroschüre
Produkthandbücher
- 307456r , Fast-Flo Luftmotor (Deutsch)
- 307456r , Fast-Flo Luftmotor (Nederlands)
- 307456r , Fast-Flo Luftmotor (Français)
- 307456r , Fast-Flo Luftmotor (Italiano)
- 307456r , Fast-Flo Luftmotor (Español)
- 307456r , Fast-Flo Luftmotor (русский)
- 307456r , Fast-Flo Luftmotor (English)
- 307456r , Fast-Flo Luftmotor (한국어)
- 307456r , Fast-Flo Luftmotor (中文)
- 307456r , Fast-Flo Luftmotor (日本語)
- 307456r , Fast-Flo Luftmotor (Norsk)
- 307456r , Fast-Flo Luftmotor (Svenska)
- 307456r , Fast-Flo Luftmotor (Čeština)
- 307456r , Fast-Flo Luftmotor (Suomi)
- 307427ae , Fast-Flo 1:1 Pumpe (Deutsch)
- 307427ae , Fast-Flo 1:1 Pumpe (Nederlands)
- 307427ae , Fast-Flo 1:1 Pumpe (Français)
- 307427ae , Fast-Flo 1:1 Pumpe (Italiano)
- 307427ae , Fast-Flo 1:1 Pumpe (Español)
- 307427ae , Fast-Flo 1:1 Pumpe (русский)
- 307427ae , Fast-Flo 1:1 Pumpe (English)
- 307427ae , Fast-Flo 1:1 Pumpe (한국어)
- 307427ae , Fast-Flo 1:1 Pumpe (中文)
- 307427ae , Fast-Flo 1:1 Pumpe (日本語)
- 307427ae , Fast-Flo 1:1 Pumpe (Norsk)
- 307427ae , Fast-Flo 1:1 Pumpe (Svenska)
- 307427ae , Fast-Flo 1:1 Pumpe (Čeština)
- 307427ae , Fast-Flo 1:1 Pumpe (Suomi)
- 307552j , Foam-Cat Zufuhrpumpe (Deutsch)
- 307552j , Foam-Cat Zufuhrpumpe (Nederlands)
- 307552j , Foam-Cat Zufuhrpumpe (Français)
- 307552j , Foam-Cat Zufuhrpumpe (Italiano)
- 307552j , Foam-Cat Zufuhrpumpe (Español)
- 307552j , Foam-Cat Zufuhrpumpe (русский)
- 307552j , Foam-Cat Zufuhrpumpe (English)
- 307552j , Foam-Cat Zufuhrpumpe (한국어)
- 307552j , Foam-Cat Zufuhrpumpe (中文)
- 307552j , Foam-Cat Zufuhrpumpe (日本語)
- 307552j , Foam-Cat Zufuhrpumpe (Norsk)
- 307552j , Foam-Cat Zufuhrpumpe (Svenska)
- 307552j , Foam-Cat Zufuhrpumpe (Čeština)
- 307552j , Foam-Cat Zufuhrpumpe (Suomi)
CAD Drawings
Verkaufsliteratur
- 300570-L Prozessgeräte (Deutsch)
- 300570-L Prozessgeräte (Português (BR))
- 300570-L Prozessgeräte (English)
- 300570-L Prozessgeräte (English (UK))
- 300570-L Prozessgeräte (Español)
- 300570-L Prozessgeräte (Français)
- 300570-L Prozessgeräte (Italiano)
- 300570-L Prozessgeräte (Polski)
- 300570-L Prozessgeräte (Svenska)
- 300570-L Prozessgeräte (Türkçe)
Zertifizierungen
