Manufacturer no.: 24B872

AirPro EFX Auto spray gun with manifold, LVMP, 0.043 in. (1.1 mm) nozzle, stainless steel nozzle, high-precision fluid adjustment knob

€1,245.93*

% €1,661.24* (25% saved)

Prices include VAT plus shipping costs

€1,047.00*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Worldwide Shipping

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

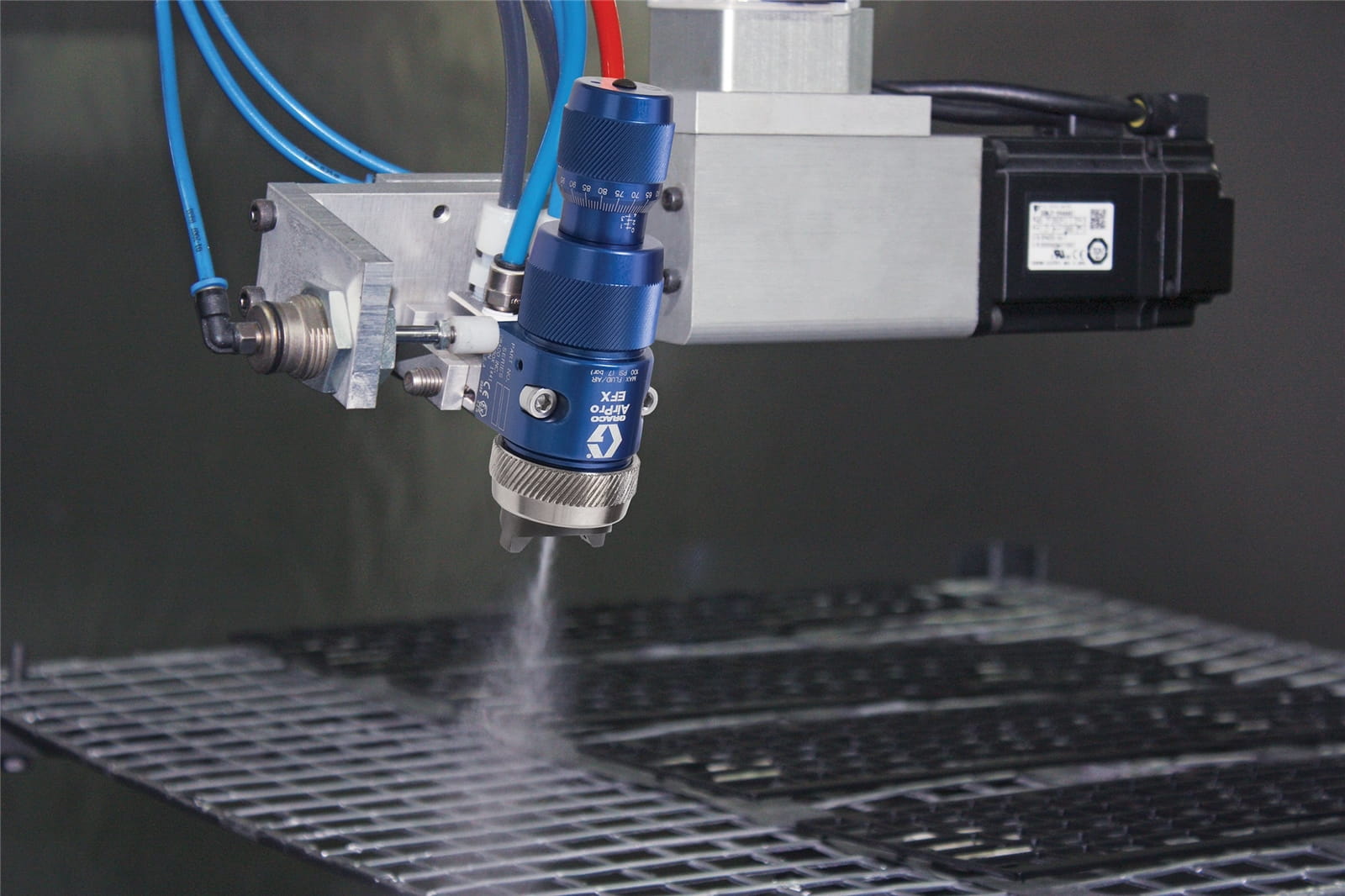

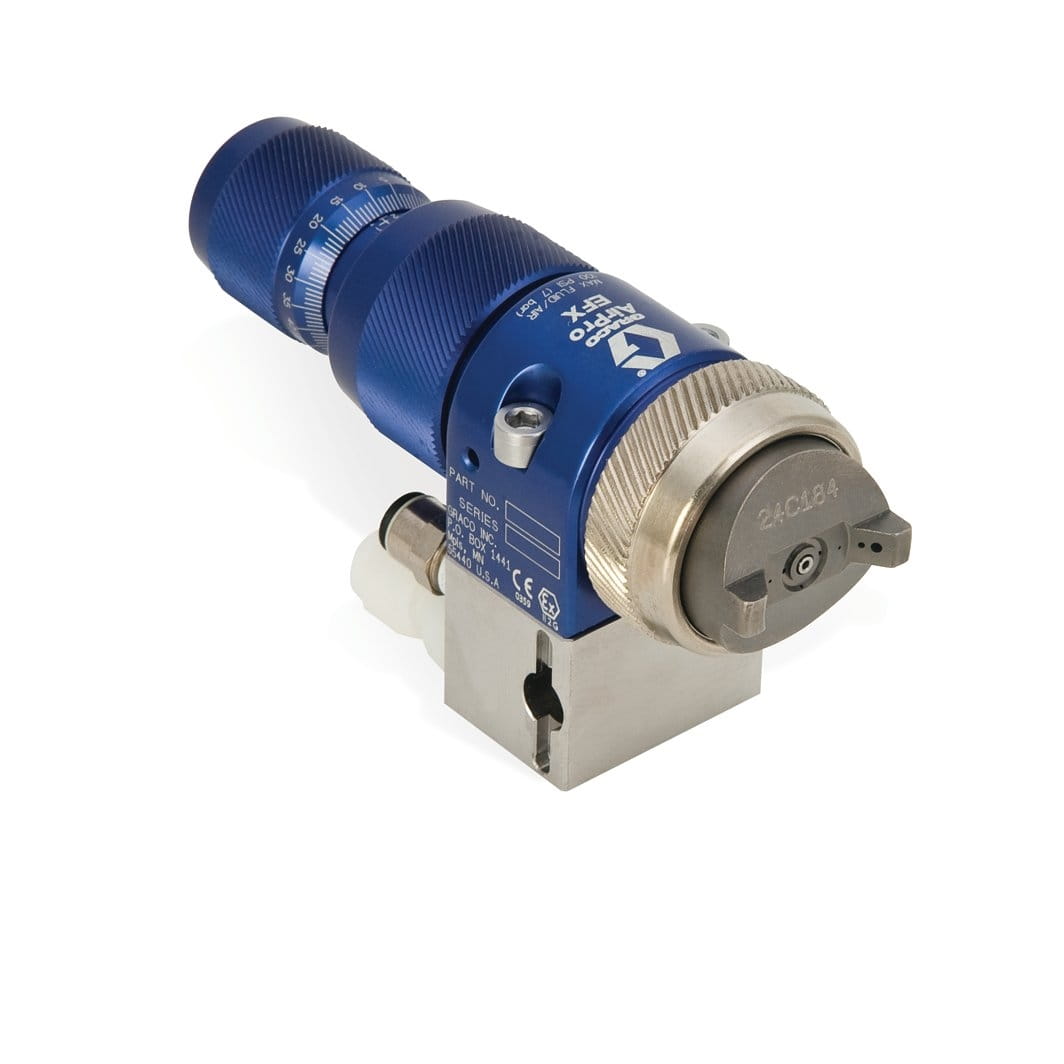

The AirPro EFX automatic spray guns are among the lightest and most compact spray guns in their class. Without a built-in air shut-off mechanism, AirPro EFX offers higher reliability and more precise material flow. The small size and low weight make this gun perfect for stationary, moving and robotic applications.

Air caps and nozzles provide superior, precise spray performance
Precise material adjustment with a micrometer telescopic knob
Highly wear-resistant components for abrasive materials
Excellent material flow rate stability and repeatability

Applicator type:	Automatically
Compatible material:	Ceramic industry, enamel paints, fast-set, high solids content, solvent-based, water-based
Component type:	Single component
Feed type:	Pressure feed
Gun activation:	Automatically
Gun type:	LVMP pistol
Gun weight (kg):	0.59
Housing material:	Plastics
Includes:	Air cap with pin, material adjustment knob, distributor, needle/nozzle set
Material adjustment knob:	High precision
Maximum air inlet pressure (MPa):	0.7
Maximum air pressure (MPa):	0.7
Maximum air pressure (bar):	7
Maximum air pressure (kPa):	700
Maximum air pressure (psi):	100
Maximum air supply pressure (bar):	7
Maximum air supply pressure (kPa):	700
Maximum delivery rate at PSI (oz/min):	8.5
Maximum inlet air pressure (psi):	100
Maximum material pressure (MPa):	0.7
Maximum material pressure (bar):	7
Maximum material pressure (kPa):	700
Maximum material pressure (psi):	100
Maximum material temperature (°C):	49
Minimum delivery rate at PSI (oz/min):	0.8
Model:	AirPro
Needle point material:	stainless steel
Nozzle opening size (inches):	43
Rinsing method:	Air
Series:	EFX
Size of the material opening (cm):	0.11
Size of the material opening (mm):	1.1
Spraying technology:	Air spraying
Spray pattern:	Around
Technology type:	LVMP
Total height (cm):	2.6
Total height (mm):	25
Total length (cm):	12
Total length (mm):	124
Total width (cm):	3.8
Total width (mm):	25
Type:	spray gun
Vent type:	vent valve

More information

Product number: 1038663
Manufacturer: Graco
EAN: 00633955555297
Weight: 1.13 kg
Length: 300 mm
Width: 200 mm
Height: 100 mm

Technical details

Specifications

Operating specifications

UPC product	6 3 3955555297
Division	IPD
Price Block	0 53
Country of Origin	US
Unit	EA
Height	10 CM
Length	30 CM
Width	20 cm
Volume	. 006 M3
Shipping weight	1 .13 KG

Technical

Bleed type	B leeder
Component Type	Single Component
Feed Type	Pressure Feed
Fluid Orifice Size (cm)	0. 11
Fluid orifice size (mm)	1. 1
Gun Weight (kg)	0. 59
Gun weight (lb)	1. 3
Includes	Air cap with pin, fluid adjustment knob, manifold, needle/nozzle kit
Maximum air pressure (bar)	7
Maximum air pressure (kPa)	700
Maximum air pressure (psi)	100
Maximum flow rate @ PSI (oz/min)	8. 5
Maximum fluid pressure (bar)	7
Maximum fluid pressure (kPa)	700
Maximum fluid pressure (psi)	100
Maximum fluid temperature (°C)	4 9
Maximum fluid temperature (°F)	120
Minimum flow rate @ PSI (oz/min)	0. 8
Model	Air Pro
Overall Height (cm)	2. 6
Overall height (in)	1
Overall height (mm)	25
Overall Length (cm)	12
Overall Length (in)	4. 9
Overall Length (mm)	1 24
Overall width (cm)	3. 8
Overall width (in)	1
Overall width (mm)	25
Purge Method	Air
Series	EFX
Technology Type	LVMP
Needle tip material	Stainless steel
Fluid Adjustment Knob	Ultra Precision
Maximum fluid pressure (MPa)	0. 7
Maximum air pressure (MPa)	0. 7
Maximum air inlet pressure (bar)	7
Maximum air inlet pressure (kPa)	700
Maximum air inlet pressure (psi)	100
Maximum air inlet pressure (MPa)	0. 7
