Manufacturer no.: 24C316

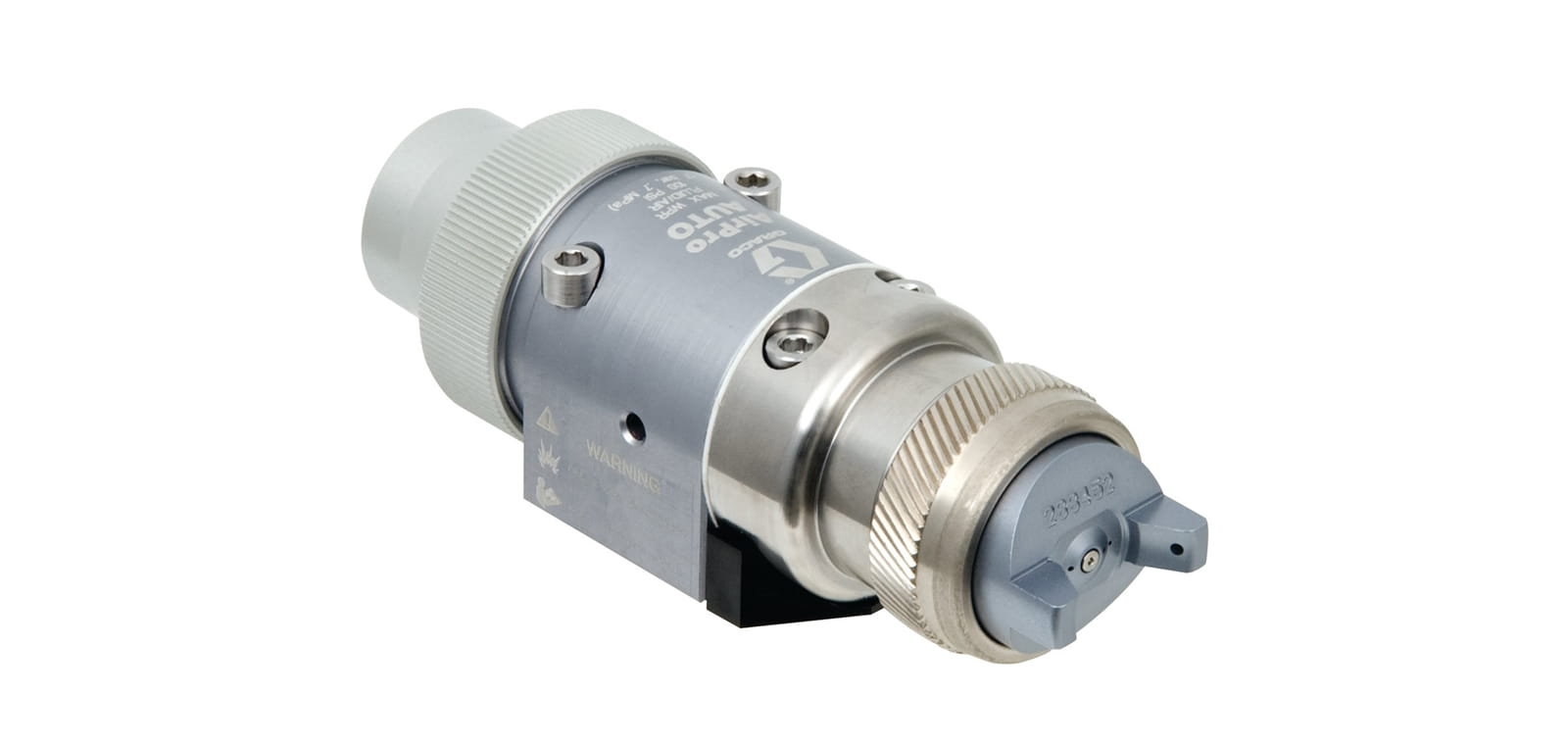

AirPro automatic air spray gun, conventional, 2.8 mm nozzle (0.110 inch), for wear-intensive applications

€1,017.72*

% €1,507.73* (32.5% saved)

€855.23*

Price excl. VAT

Ready for shipping in 5-8 days

EU B2B: net prices with valid VAT ID

Also interesting

Product information

Graco's automatic applicators are lightweight, compact and provide uniform spray patterns for high quality coatings.

Gun models for high-wear applications are designed for particularly efficient spraying performance
Models with control knob for precise material adjustment.
Stainless steel construction for the toughest coating materials, from acids to waterborne materials
Air cap ensures quick and precise positioning in vertical and horizontal positions
Lightweight and compact rounded gun design

Application:	high wear
Applicator type:	Automatically
Compatible material:	Adhesives, Ceramic Industry, Fast-Set, High Solids, Sealants, Solvent-Based, Stains, UV Coating, Water-Based
Gun activation:	Automatically
Gun type:	Conventional pistol
Gun weight (g):	680
Gun weight (kg):	0.68
Includes:	Needle/nozzle set 24C142, air cap 24B536 with pin
Maximum air inlet pressure (MPa):	0.7
Maximum air pressure (MPa):	0.7
Maximum air pressure (bar):	7
Maximum air pressure (kPa):	700
Maximum air pressure (psi):	100
Maximum air supply pressure (bar):	7
Maximum air supply pressure (kPa):	700
Maximum inlet air pressure (psi):	100
Maximum material pressure (MPa):	0.7
Maximum material pressure (bar):	7
Maximum material pressure (kPa):	700
Maximum material pressure (psi):	100
Maximum material temperature (°C):	49
Model:	AirPro
Nozzle opening size (inches):	110
Rinsing method:	Air
Series:	car
Size of the material opening (cm):	0.28
Size of the material opening (mm):	2.8
Spraying technology:	Air spraying
Technology type:	conventional
Type:	spray gun
Vent type:	vent valve

More information

Technical details

Bleed type	B leeder
Fluid Orifice Size (cm)	0. 28
Fluid Orifice Size (mm)	2. 8
Gun Weight (g)	680
Gun weight (kg)	0. 68
Gun weight (lb)	1. 5
Includes	24C142 Needle/Nozzle Kit, 24B536 Air Cap with Pin
Maximum air pressure (bar)	7
Maximum air pressure (kPa)	700
Maximum air pressure (psi)	100
Maximum fluid pressure (bar)	7
Maximum fluid pressure (kPa)	700
Maximum fluid pressure (psi)	100
Maximum fluid temperature (°C)	4 9
Maximum fluid temperature (°F)	120
Model	Air Pro
Purge Method	Air
Series	Auto
Technology Type	Conventional
Maximum fluid pressure (MPa)	0. 7
Maximum air pressure (MPa)	0. 7
Maximum air inlet pressure (bar)	7
Maximum air inlet pressure (kPa)	700
Maximum air inlet pressure (psi)	100
Maximum air inlet pressure (MPa)	0. 7
