Manufacturer no.: 24B868

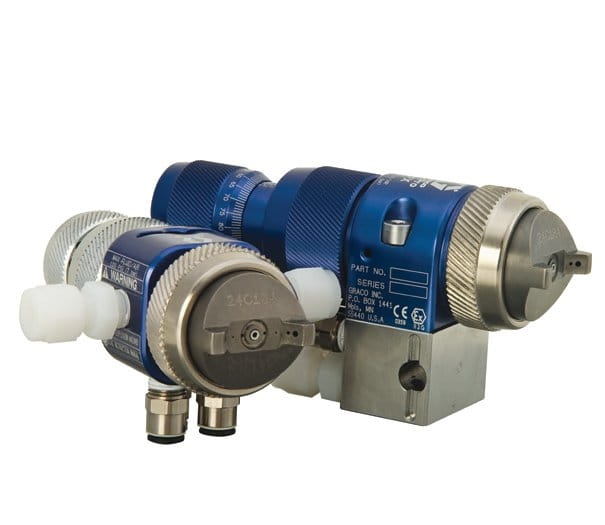

Air spray gun AirPro EFX Auto with distributor, HiTEch, 1.5 mm (0.059 in.) carbide nozzle, high-precision material adjustment knob

€1,605.25*

% €2,326.45* (31% saved)

Prices include VAT plus shipping costs

€1,348.95*

Price excl. VAT

Ready for shipping in 5-8 days

14 days free exchange

Free shipping within Germany

EU B2B: net prices with valid VAT ID

Also interesting

Product information

AirPro EFX automatic spray guns are among the lightest and most compact spray guns in their class. Without a built-in air shut-off mechanism, AirPro EFX offers greater reliability and more precise material flow. The small size and low weight make this gun perfect for stationary, moving and robotic applications.

Air caps and nozzles provide superior and precise spraying performance
Precise material adjustment with a micrometre telescopic knob
Highly wear-resistant components for abrasive materials
Excellent material flow rate stability and repeatability

Item type:	Pistole
Nozzle size:	1,5 mm
Type of material:	Hartmetall

More information

Product number: 1039284
Manufacturer: Graco
EAN: 00633955555235
Weight: 0.02 kg
Length: 235 mm
Width: 155 mm
Height: 90 mm

Technical details

Specifications

Operating specifications

UPC product	633955555235
Division	IPD
Price Block	0 53
Country of Origin	US
Unit	EA
Height	9 CM
Length	23.5 CM
Width	15.5 cm
Volume	. 003 m³
Shipping weight	. 02 KG

Technical

Bleed type	B leeder
Component Type	Single Component
Feed Type	Pressure Feed
Fluid Orifice Size (cm)	0. 15
Fluid orifice size (mm)	1. 5
Gun Weight (kg)	0. 59
Gun weight (lb)	1. 3
Includes	Air cap with pin, fluid adjustment knob, manifold, needle/nozzle kit
Maximum air pressure (bar)	7
Maximum air pressure (kPa)	700
Maximum air pressure (psi)	100
Maximum flow rate @ PSI (oz/min)	15. 2
Maximum fluid pressure (bar)	7
Maximum fluid pressure (kPa)	700
Maximum fluid pressure (psi)	100
Maximum fluid temperature (°C)	4 9
Maximum fluid temperature (°F)	120
Minimum flow rate @ PSI (oz/min)	1. 5
Model	Air Pro
Overall Height (cm)	2. 6
Overall height (in)	1
Overall height (mm)	25
Overall Length (cm)	12
Overall Length (in)	4. 9
Overall Length (mm)	1 24
Overall width (cm)	3. 8
Overall width (in)	1
Overall width (mm)	25
Purge Method	Air
Series	EFX
Technology Type	HiTEch
Needle tip material	Carbide
Fluid adjustment knob	Ultra Precision
Maximum fluid pressure (MPa)	0. 7
Maximum air pressure (MPa)	0. 7
Maximum air inlet pressure (bar)	7
Maximum air inlet pressure (kPa)	700
Maximum air inlet pressure (psi)	100
Maximum air inlet pressure (MPa)	0. 7
