Elcometer P30B Stainless Steel Pressure Vessel with Wheels and Dual Bottom Drain; 30 litres (7.92 US gallons)

€4,347.44*

% €4,689.00* (7.28% saved)

Prices include VAT plus shipping costs

€3,653.31*

Price excl. VAT

14 days free exchange

Free shipping within Germany

Select

EU B2B: net prices with valid VAT ID

Scope of delivery

1 item

Also interesting

Product information

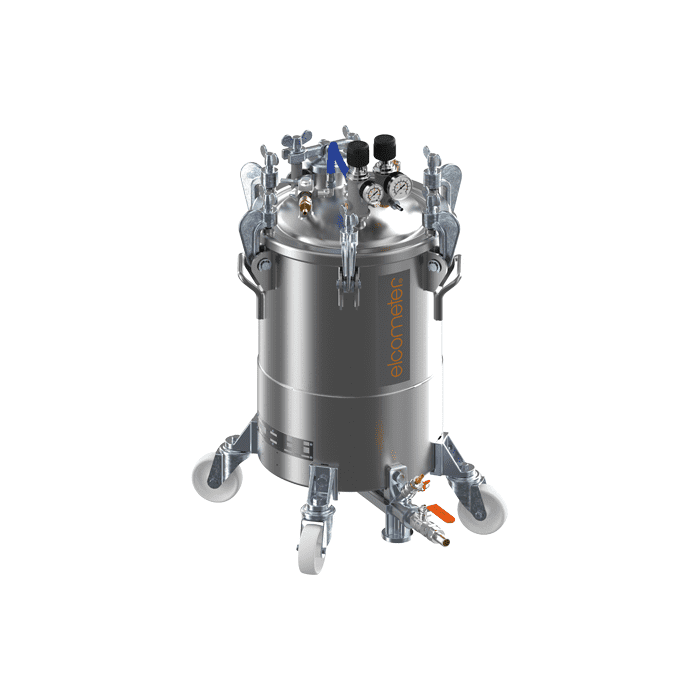

ProLine P30B & P60B pressure vessels with bottom outlet

The ProLine P30B (30 L) and ProLine P60B (60 L) pressure vessels are specially designed for industrial applications where a continuous, high-efficiency supply of material is required. Both models feature a bottom outlet with two connections, ideal for operating two spray guns simultaneously.

Technical features:

Material: Stainless steel (body and lid)
Maximum operating pressure: 7 bar (101 psi)
Material connections: 9.52 mm (3/8") BSP male
Air connection: 6.35 mm (1/4") BSP male
Pressure gauge: 0–8 bar (air) / 0–12 bar (fluid)
Temperaturerange: 0–50 °C
Mobility: Sturdy wheels for easy transport

Key benefits:

Suitable for high- or standard-viscosity materials
Compatible with solvent- and water-based paints
Ideal for applications with two spray guns
Quick refilling and easy monitoring of material levels
Complies with international safety standards

Overview of variants:

Model	Capacity	Suitable for	Spray guns	Aircap	Needle & nozzle
P30B	30 L (7.9 US gal)	Standard and high-viscosity materials	2x	4.5B, 6B, 8B	1.40 mm, 1.80 mm, 2.00 mm
P60B	60 L (15.85 US gal)	High-volume applications	2x	4.5B, 6B, 8B	2.80 mm, 3.00 mm, 3.50 mm

Scope of delivery:

1x pressure vessel (P30B or P60B)
1x dual air regulator with outlet valve
1x lid with connection for quick refilling
1x pressure gauge (air and material)
1x User manual (available as a PDF)

PDF operating instructions:

You can find the full instructions for the operation and maintenance of the pressure vessel at the following link:
Download PDF
