Manufacturer no.:
PP10TS
Elcometer
Elcometer P10TS Stainless Steel Pressure Vessel for Adhesives; 10 litres (2.64 US gallons)
€1,660.05*
% €1,844.00* (9.98% saved)
Also interesting
Product information

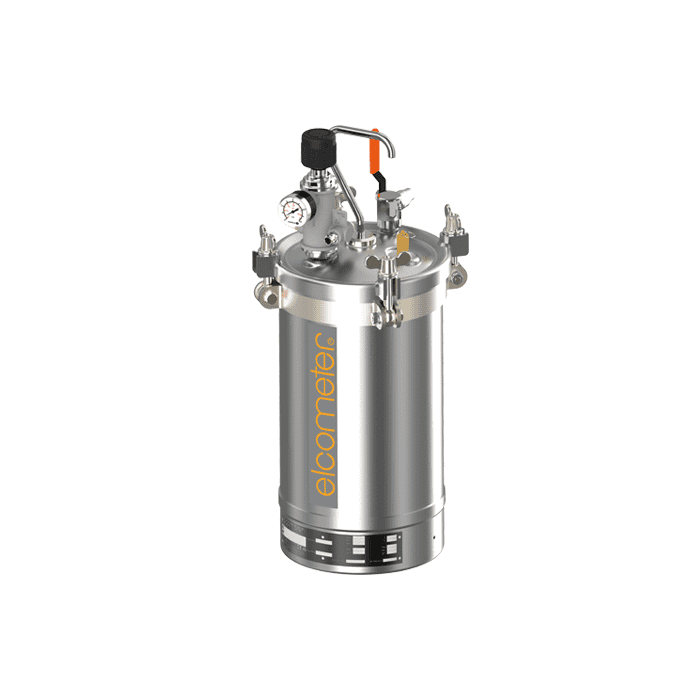

ProLine P10TS Pressure Vessel – 10 L with Side Outlet (2.64 US Gal)
The ProLine P10TS is an industrial 10-litre pressure vessel with side product outlet, designed for medium to high throughput applications. Its robust construction and easy maintenance make it the ideal solution for professional painting, gluing and sealing processes in workshops and industrial plants.
Technical features:
- Capacity: 10 litres (2.64 US gallons)
- Operating pressure: max. 6.9 bar (100 psi)
- Material: Powder-coated steel tank with durable inner coating
- Outlet: Side product outlet – ideal for automated systems
- Empty weight: approx. 7.1 kg
- Lid: Clamp closure with safety lock
- O-ring: Chemical-resistant sealing ring
- Connections: 1/4" BSP (air), 3/8" BSP (product)
- Pressure gauge: Integrated pressure gauge
- Safety valve: Calibrated at 8.3 bar (120 psi)
Special advantages:
- Suitable for viscous materials such as paints, resins and adhesives
- Side outlet for constant product flow in horizontal systems
- Easy access for cleaning and maintenance
- CE compliant & designed for continuous industrial operation
Areas of application:
- Automotive
- Industrial furniture coating
- Plastics and metal processing
- Sealant and adhesive application
Variant overview:
| Variant | Spray gun | Nozzle size | Air cap | Recommended use |
|---|---|---|---|---|
| P10TS-SET-120 | ProLine X4100 | 1.20 | XT01B | Clear coats & fine top coats |
| P10TS-SET-180 | ProLine X4100 | 1.80 mm | XT03A | Primers & fillers |
| P10TS-SET-250 | ProLine X4100 | 2.50 mm | XT04C | Thick-film applications & sealants |
Scope of delivery:
- 1x 10 L pressure vessel with cover & side outlet
- 1x safety valve & pressure gauge
- 1x spray gun (depending on version)
- 1x operating instructions (PDF link)
PDF operating instructions:
For further technical information, operational safety and maintenance instructions:
View & download PDF
More information
- Product number: 2150722
- Manufacturer: Elcometer
- Weight: 12.5 kg
- Width: 320 mm
- Height: 660 mm
