Manufacturer no.:
YKIT-PROTECTIVE-6M
Elcometer
Elcometer Corrosion Protection Kit 6 – metric
€9,122.15*
Ready for shipping in 2-3 Wochen
Scope of delivery
1 Koffer
Also interesting
Product information

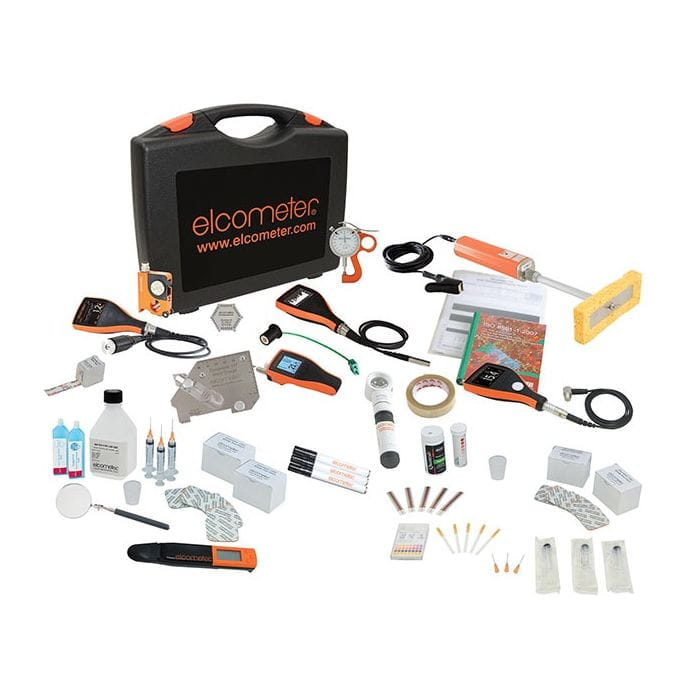

The Elcometer Corrosion Protection Case 6 – metric version is a comprehensive inspection kit for assessing a structure before, during and after the application of a coating. The robust plastic case contains measuring instruments and test accessories for material thickness, surface condition, welds, cleanliness, surface profile, climatic conditions, coating thickness and porosity testing.
Measurement and testing ranges
- Material and coating thickness measurement
- Surface profile and surface cleanliness
- Climate, dew point and surface temperature testing
- Dust, salt and surface contamination tests
- Weld seam, wet film and porosity testing
Scope of supply as per quotation 41258
| Component | Model / Measurement range |
| E224-TS digital profile dial gauge | including standard probe |
| Elcometer 319 Top | Bluetooth, USB interface and magnetic surface probe |
| B112 stainless steel wet film comb | 25–3000 µm |

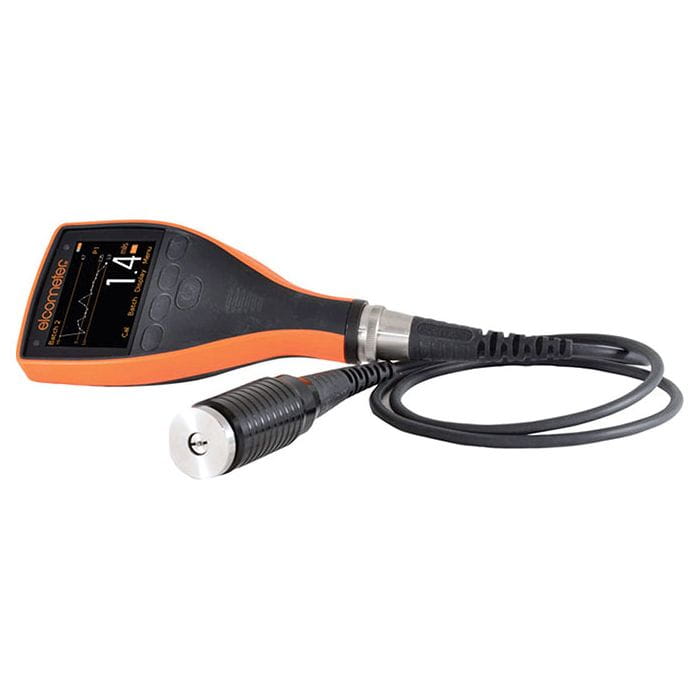

| A456CFTS coating thickness gauge | Bluetooth, T456CF2S probe 0–5000 µm, ElcoMaster software |
| E128 Rust Grade Standard | Swedish standard in accordance with ISO 8501 |
| H131-1C / H137 / H147 | Telescopic mirror, illuminated magnifying glass and weld seam gauge |
| Marking pens | 3 solvent-free pens |
| E142 dust test | Test kit for dust contamination |
| E138 Bresle test | Includes 50 × E135-C Bresle patches |
| E138-2 / E124 / E122-B / E122-C | Surface Contamination Test and Testex Profile Test |
| Elcometer C204 | Ultrasonic thickness gauge |
| A121-T Wedge-cut tester | Grid-cut function, 6×1, 6×2 and 6×3 mm cuts, ISO adhesive tape |

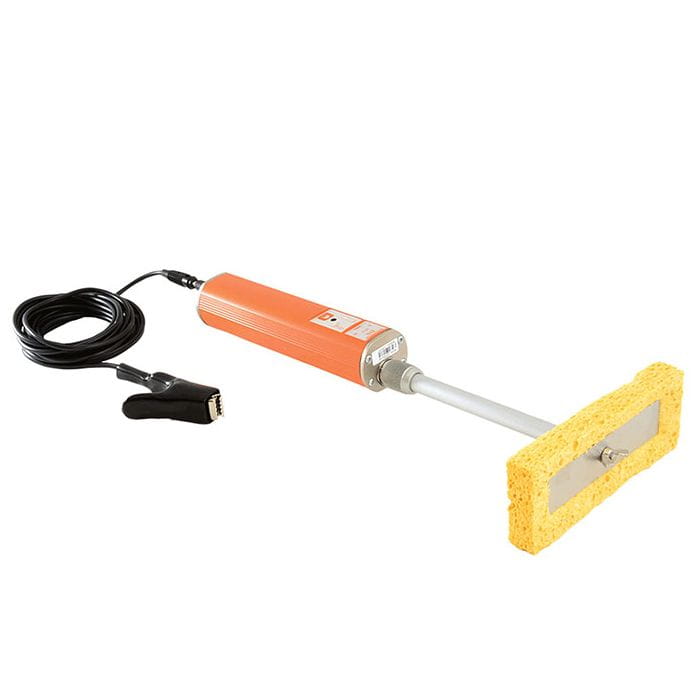

| D270 Wet Sponge Porosity Tester | Low-voltage porosity testing |
| Carry case | Sturdy plastic case |
Key technical data
| Feature | Specification |
| Manufacturer’s No. | YKIT-PROTECTIVE-6M |
| Version | Metric |
| Dimensions | 575 × 475 × 205 mm |
| Customs tariff number | 9017300000 |
| Country of origin | United Kingdom |
Downloads
Selection guidance
We’re happy to help you choose the Elcometer Protective Coating Inspection Kit 6 and answer any questions you may have regarding specifications, compatibility and application.
Get advice now
More information
- Product number: 2209402
- Manufacturer: Elcometer
- Length: 4750 mm
- Width: 5750 mm
- Height: 2050 mm
