Manufacturer no.:
PP30B-CLS-28B28
Elcometer
10 m (36.1 ft) product hose (ID: 12 mm × OD: 21 mm) with 3/4" female thread connection & Sagola Stucco pressure spray gun with 2.8B air cap & 2.80 mm stainless steel needle and nozzle set
€4,211.17*
% €4,679.00* (10% saved)
Also interesting
Product information

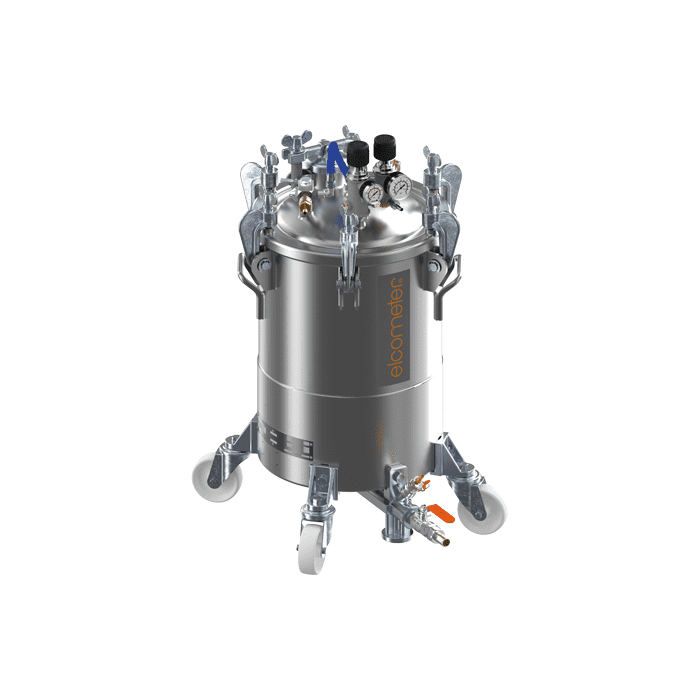

ProLine P30B stainless steel pressure vessel – 30 L with castors and double bottom drain
The ProLine P30B is a high-quality, mobile pressure vessel made of stainless steel with a capacity of 30 litres (7.92 US gallons). Specially designed for industrial applications where a continuous, even flow of material is required – ideal for paints, adhesives, resins and similar media with high or medium viscosity.
Technical features:
- Tank volume: 30 litres (7.92 US gallons)
- Construction: Made entirely of stainless steel – corrosion-resistant and chemical-resistant
- Outlet: Bottom double outlet – ideal for two spray guns
- Max. operating pressure: 7.0 bar (101 psi)
- Pressure gauge: Air and material pressure can be read separately
- Temperature range: 0–50 °C
- Wheels: Integrated industrial castors for easy mobility
- Safetyvalve: factory calibrated
- Connections: 3/8" BSP (product), 1/4" BSP (air)
Special advantages:
- Suitable for water- and solvent-based media
- Double bottom drain: simultaneous connection of two guns possible
- Increased stability and mobility thanks to castors
- Ideal for systems with high material consumption
- Easy to clean & durable thanks to stainless steel construction
Areas of application:
- Vehicle & machine painting
- Metal & plastic coating
- Adhesive and resin processing
- Series production with constant material requirements
Variant overview:
| Model | Capacity | Outlet | Material | Spray guns |
|---|---|---|---|---|
| P30B | 30 | 2x bottom connection | Stainless steel | 2 can be connected simultaneously |
Scope of delivery:
- 1x stainless steel pressure vessel 30 L with lid
- 2x material outlets on the bottom
- 1x pressure regulator with pressure gauge
- 1x safety valve
- 1x pre-assembled mobile castor set
- 1x operating instructions (PDF link)
PDF operating instructions:
Complete instructions for commissioning, use and maintenance:
View/download PDF
More information
- Product number: 2150760
- Manufacturer: Elcometer
