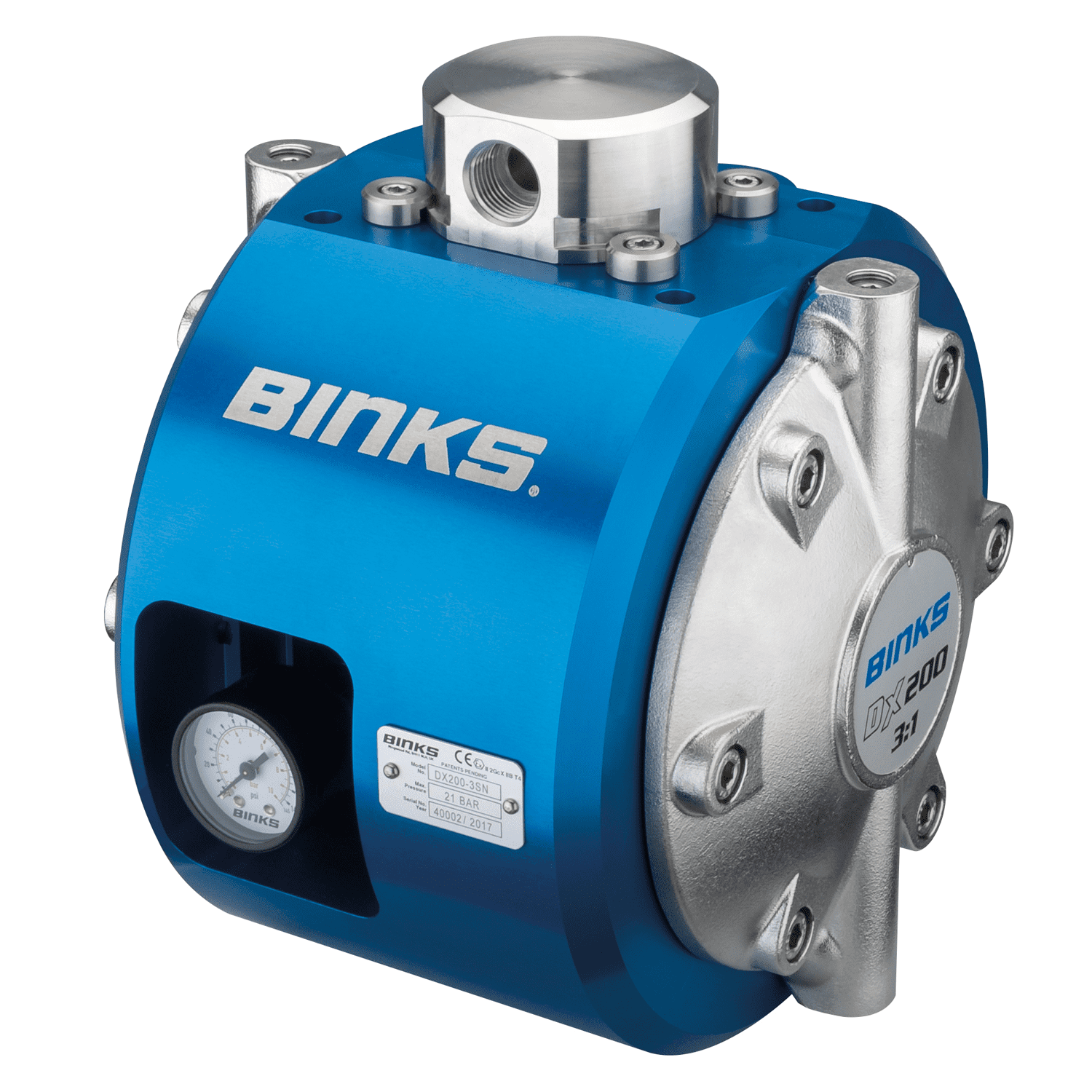

Binks DX200-3 stainless steel diaphragm pump DX200-3SM – base, – large filter Air-operated diaphragm pump with 3:1 ratio
€4,086.46*
% €4,807.60* (15% saved)Fast Shipping
Scope of delivery
Binks DX200-3 stainless steel diaphragm pumps
The Binks DX200-3 is a compressed air-operated double diaphragm pump with a 3:1 transmission ratio. It has been developed for demanding industrial applications with spray guns, systems or application equipment and offers high performance with constant material pressure.
Highlights & advantages
- 3:1 pressure ratio for higher material pressures with constant pulse flows
- High-performance air valve for fast material changes and low air consumption
- Eazi-Swap outlet for flexible mounting of regulators or pulsation dampers
- Wrinkle-free diaphragms for long service life and low shear effect
- Optional active pulsation damper for smooth, even material flow
- Stainless steel housing for universal material compatibility
Areas of application
Suitable for paint shops, industrial coating systems, wood, glass, ceramic and automotive applications (OEM & Tier 1/2). Supports solvent- and water-based materials, primers, UV lacquers, adhesives and fillers.
Models & part numbers
Available models: DX200-3SN, DX200-3SM, DX200-3SP in variants with -W, -C, -WF, -CF (wall, trolley, filter options).
Compatible accessories
- DXK-274 manual fluid pressure regulator
- DXA-SC31P active pulsation damper
- DXA-SCR1.0 air reservoir
- Material filter DXA-F6ME100-200-3
- Suction hose 1/2" DXA-S25-13S-me15
- Filter inserts 30–200 mesh
Why this product?
The DX200-3 combines high performance, modular flexibility and energy efficiency. With a 3:1 ratio, it delivers high pressures with low air consumption – ideal for precise material dosing and long maintenance intervals.
FAQ
- How does the DX200-3 differ from the DX200 1:1?
- The DX200-3 offers triple the output pressure and is designed for more demanding applications.
- Which variants have a pulsation damper?
- Models with the designation SP or SP1 include the active pulsation damper.
- Can the filter be retrofitted?
- Yes, all filters are available as accessories and can be mounted on the wall bracket.
- Which materials are suitable?
- Paints, primers, UV paints, adhesives and fillers, as well as abrasive coatings.
- How loud is the pump during operation?
- The measured sound level is approx. 79.8 dBA.
- Product number: 2180732
- Manufacturer: Binks
- EAN: 5021845095636
- Weight: 19.13 kg
Technical details
| Feature | Value |
|---|---|
| Brand | Binks |
| Series | DX200-3 Stainless steel |
| Transmission ratio | 3 : 1 |
| Volume per double stroke | 0.14 l |
| Max. flow rate | 5.6 l/min |
| Operating pressure (max.) | 21 bar |
| Material | Stainless steel |
| Air inlet | 1/4″ BSPP/NPSM (IG) |
| Material inlet | 1/2″ BSPP (female thread) |
| Material outlet | 1/2″ BSPP (female thread) |
| Weight | 17.9 kg |
| Sound level | 79.8 dBA |
| Temperature range | 0–40 °C |
| Filter sizes | L = large filter, S = small filter |
| Active pulsation damper | Optional for SP/SEP versions |
| Mounting types | Wall bracket, trolley, container mounting |
| Area of application | Spray gun, system and transfer applications |
