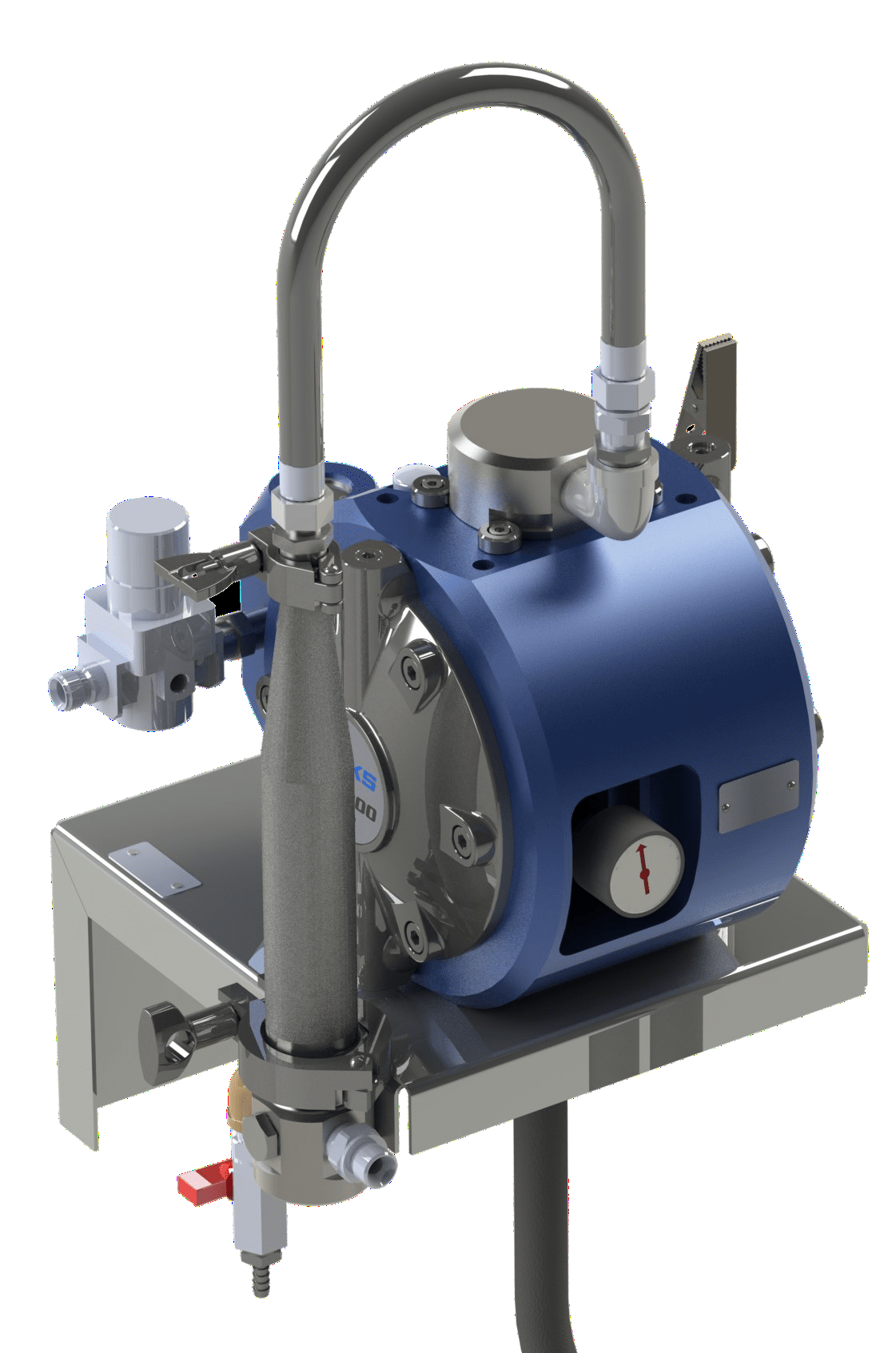

Binks DX200 3:1 wall bracket, outlet type, 1 air regulator pump | Pressure regulator, manual, air-driven diaphragm pump 3:1 ratio
€4,470.83*
% €5,259.80* (15% saved)Prices include VAT plus shipping costs
Price excl. VAT
Fast Shipping
Scope of delivery

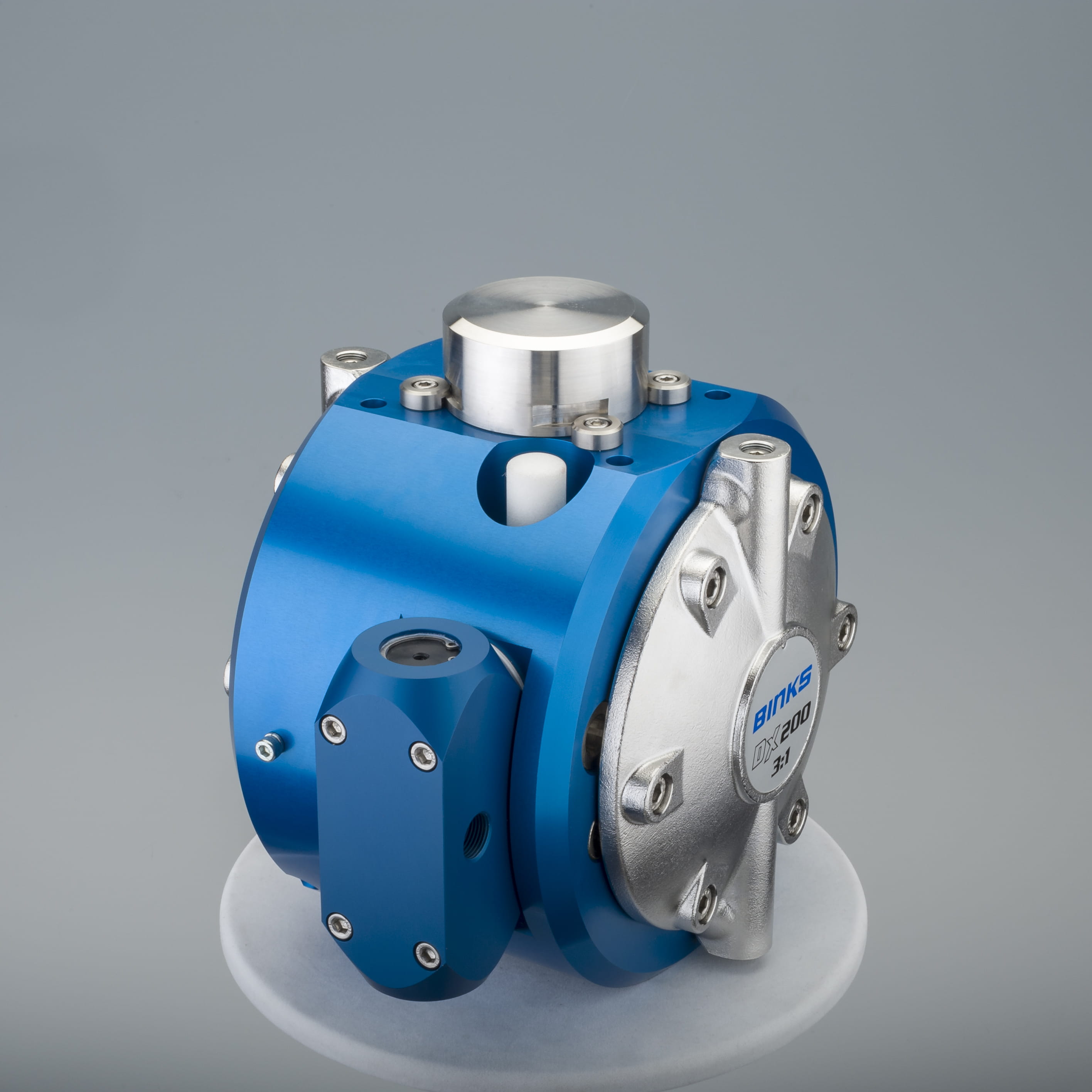

Binks DX200-3 – 3:1 diaphragm pump
The Binks DX200-3 is an air-operated 3:1 double diaphragm pump with a rotatable Eazi-Swap outlet. It can be operated as an unregulated version, with a manual fluid regulator or with an Active Surge Chamber (ASC). Thanks to its stainless steel media paths, it is suitable for a wide range of solvent- and water-based materials.
Highlights & advantages
- Constant material flow with low pulsation; fast changeover stroke thanks to high-performance air valve.
- Eazi-Swap outlet: quickly convertible between unregulated, regulator or ASC; front/rear outlet rotatable.
- Low internal volume – ideal for piggable systems; flushes with less solvent.
- Easy to maintain: good access to air valve, diaphragms and check valves.
- Stainless steel media paths for high material compatibility.
- Non-blocking pilot mechanism, integrated silencer.
Areas of application
Conveying and circulating paints, primers, UV coatings, adhesives and fillers in industry, wood, glass and automotive.
Technical data (brief)
See the two-column table in Technical data (short).
Versions & part numbers
- DX200-3SN – Bare pump, unregulated
- DX200-3SM – Bare pump with manual regulator
- DX200‑3SP – Bare pump with active surge chamber
- DX200‑3SN1‑W / ‑C – Wall/trolley package, unregulated
- DX200‑3SM1‑W / ‑C – Wall/trolley package with manual controller
- DX200‑3SP1‑W / ‑C – Wall/trolley package with ASC
- Option F = Package with inline filter (up to 305 psi)
Compatible accessories (selection)
- Manual fluid regulator (DXK-274)
- Active surge chamber (DXA‑SC31P) + air reservoir (DXA‑SCR1.0)
- Inline filter DXA‑F6ME100‑200‑3; 30/60/100/200 mesh screens (194547‑K3 … 194551‑K3)
- Wall bracket DVX-352; trolley 0115-010186 (additional wall bracket required)
- ½″ suction hose DXA‑S25‑13S‑ME15
Why this product?
- Higher outlet pressures with low pulsation – reliable spraying and conveying.
- Flexible configuration without external components saves installation time and costs.
- Longer maintenance intervals thanks to "no-crease" diaphragm design and slower cycles.
FAQ
- What connections does the pump have?
- 1/2" BSPP fluid inlet/outlet, 1/4" universal BSPP/NPSM air inlet.
- Can a filter be integrated?
- Yes, as package option "F" or retrofittable; various screen sizes from 15 to 1250 mesh available.
- For which media is it suitable?
- For water- and solvent-based coatings, including abrasive and moisture-sensitive materials.
- Is the outlet rotatable?
- Yes, the Eazi-Swap outlet can be rotated for front or rear discharge.
- Product number: 2180649
- Manufacturer: Binks
- EAN: 5021845095681
- Weight: 25 kg
Technical details
Binks DX200-3 – Technische Daten (einfach)
| Merkmal | Wert |
|---|---|
| Verhältnis | 3:1 |
| Max. Luftdruck | 100 psi (7 bar) |
| Max. Fluiddruck | 305 psi (21 bar) |
| Nenndurchsatz pro Zyklus | 0.037 gal (0.14 L) |
| Fördermenge @ 60 Zyklen/min | 2.2 gal/min (8.4 l/min) |
| Empf. Dauer-Zyklusrate | 25 Zyklen/min |
| Empf. intermittierende Zyklusrate | 40 Zyklen/min |
| Fluidanschluss Ein-/Ausgang | 1/2" BSPP Innengewinde |
| Max. Saughöhe trocken/nass | 22.6 ft (6.9 m) / 28.5 ft (8.7 m) |
| Lufteinlass | 1/4" Universal (BSPP/NPSM) Innengewinde |
| Luftvolumen/Zyklus @ 6.9 bar/100 psi | 0.18 SCFM (4.78 L) |
| Luftbedarf @ 10/30 Zyklen/min | 1.69 / 5.54 SCFM |
| Luftqualität | ISO 8573-1 Klasse 3.3.2; nicht geschmiert |
| Schalldruckpegel | 79.8 dBA |
| Gewicht (Bare Pump) | 39.4 lbs (17.9 kg) |
| Temperaturbereich | 32–104 °F (0–40 °C) |
| Abmessungen (B×H×T) | 7.6" × 10.35" × 10.4" (193 × 262 × 264 mm) |
| Materialdurchgänge | Edelstahl |
Quelle: Datenblatt und Installationshandbuch.
