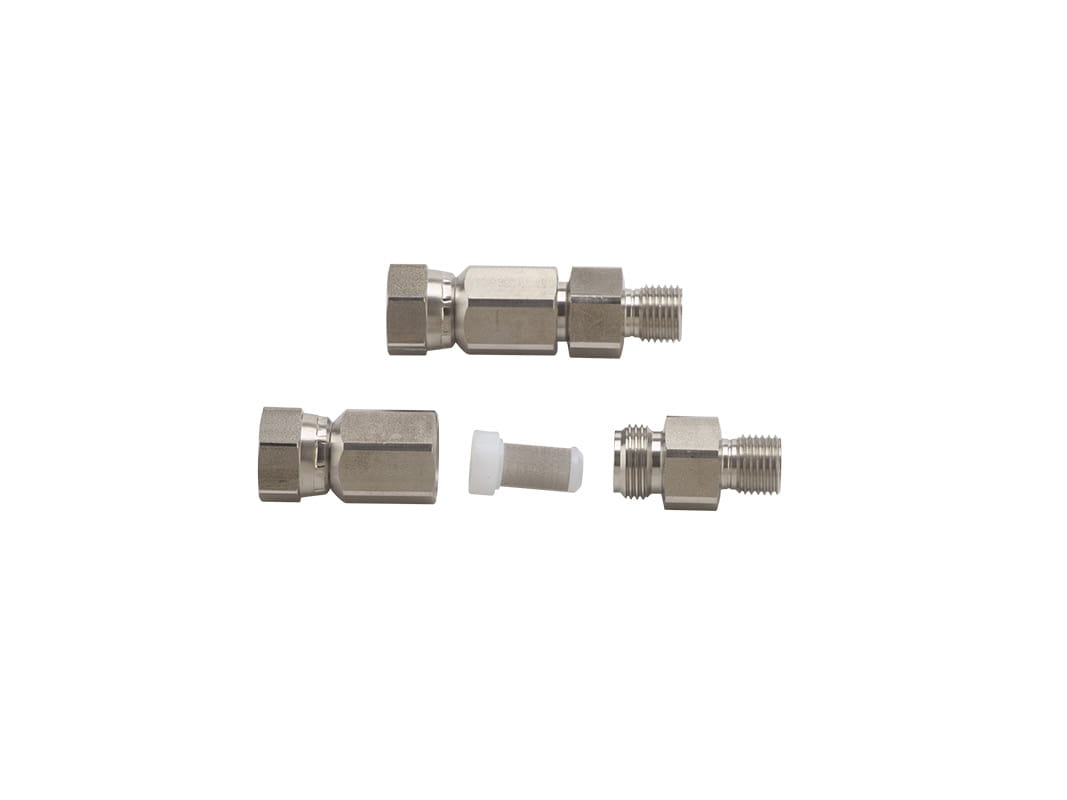

Beschichtpunkt: Inline stainless steel filter housing, 1/4" BSP male x 1/4" BSP female
| Number | Unit price |
|---|---|
| Until 3 |
€34.76*
€29.21*
(Price excl. VAT)
|
| Away 4 |
€29.55*
€34.00*
(13.09% saved)
|
Scope of delivery
The stainless steel inline filter housings have been developed for the filtration of coating materials in high-pressure and airless systems. They are integrated directly into the material line and help to reliably trap particles and contaminants. This protects nozzles, spray guns and other system components, whilst also ensuring a consistent flow of material. The filter housings are supplied complete with an FM2802N filter (100 mesh) and are designed for operating pressures of up to 500 bar (7250 psi). :contentReference[oaicite:0]{index=0}
Applications
The in-line filter housings are suitable for professional airless and high-pressure coating systems. Direct integration into the material line enables continuous filtration of the coating material. This reduces the risk of nozzle blockages and helps maintain consistent surface quality during painting and coating processes. :contentReference[oaicite:1]{index=1}
Available versions
107300 – Inline filter housing made of stainless steel, 1/4" NPS male × 1/4" NPS female
107320 – Inline filter housing made of stainless steel, male 1/4" BSP × female 1/4" BSP
107325 – Stainless steel inline filter housing, male 3/8" NPS × female 3/8" NPS :contentReference[oaicite:2]{index=2}
Technical Specifications
Product type: Inline filter housing for high-pressure coating systems
Material: Stainless steel
Filter element included: FM2802N
Filter fineness: 100 mesh
Max. operating pressure: 500 bar (7250 psi)
Connection options: NPS and BSP threaded versions
107300: Male 1/4" NPS × Female 1/4" NPS
107320: 1/4" BSP male × 1/4" BSP female
107325: Male 3/8" NPS × Female 3/8" NPS
Application: Filtration of coating materials in airless and high-pressure systems :contentReference[oaicite:3]{index=3}
| Connection Thread Size: | 1/4" BSP |
|---|---|
| Item type: | Filtergehäuse |
| Type of material: | Edelstahl |
- Product number: 2202142
- Manufacturer: beschichtpunkt
