3nh T60+ Colour Light Cabinet – Light source (number): 5 — D65, TL84, F/A, UV, CWF

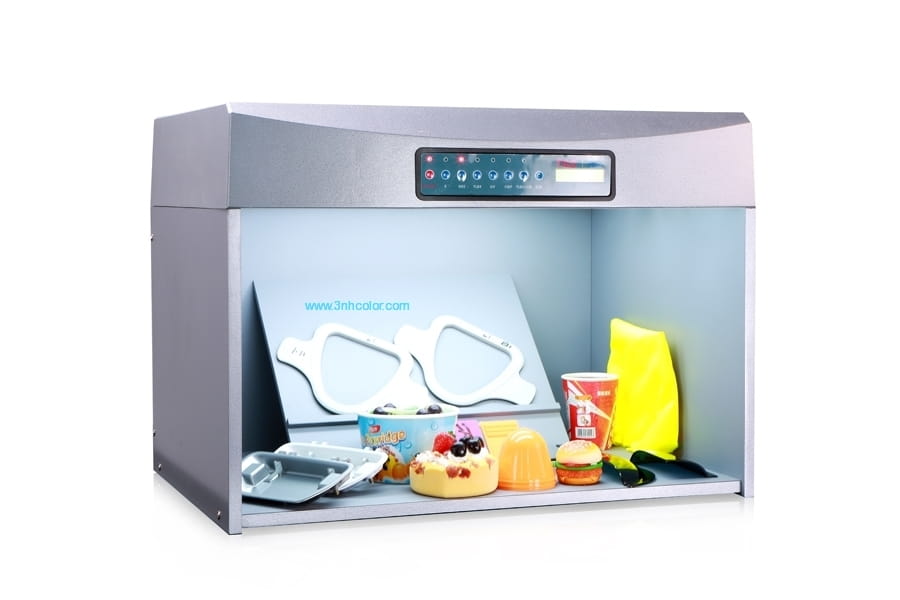

The T60+ and P60+ colour inspection booths enable professional, standards-compliant visual colour assessment under standardised lighting conditions. The units have been specially developed for precise colour comparisons, metamerism testing and quality control in industry, laboratories and production.

Thanks to several integrated standard light sources, colour deviations can be reliably detected under different lighting conditions. The light booths are ideal for applications in the printing industry, textile production, paint finishing, plastics processing, the automotive industry, packaging, ceramics and quality control.

The models differ mainly in the number of integrated light sources:

T60+: 5 light sources
P60+: 6 light sources including an additional TL83/U30 light source

Professional standard lighting conditions

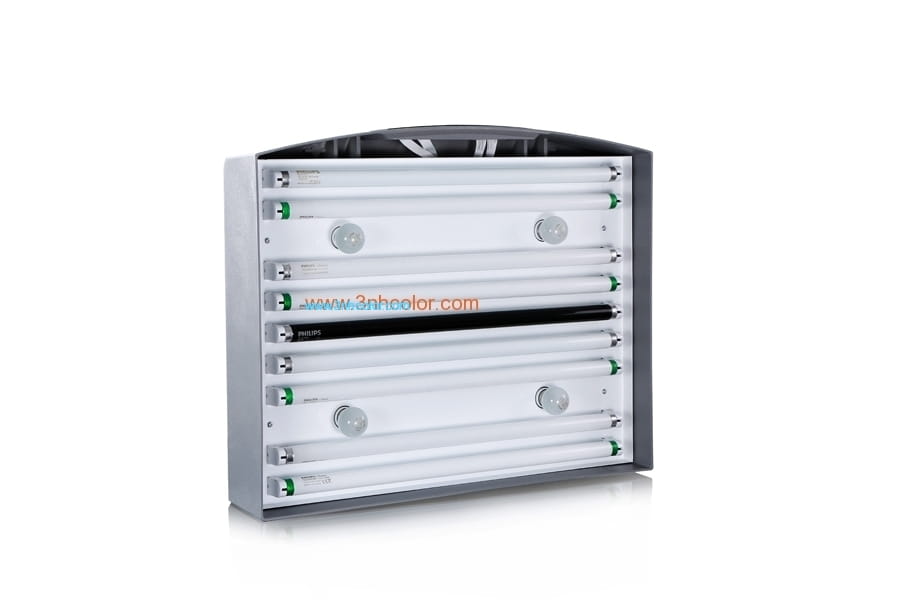

The light booths support international standard illuminants for precise visual colour inspections and metamerism checks:

D65 – Standard daylight
TL84 – Shop lighting Europe/Asia
F/A – Incandescent light
UV – UV light for detecting optical brighteners
CWF – Cool white fluorescent
TL83/U30 – Warm white light (P60+ only)

The lighting complies with numerous international standards such as ASTM, ISO, DIN, ANSI and BSI and ensures reproducible colour decisions under controlled conditions.

Precise colour inspection and metamerism detection

The various light sources enable colour differences and metamerism effects to be reliably detected. The booths allow for consistent visual assessments regardless of ambient light or time of day.

The flicker-free lighting ensures comfortable working conditions and reliable colour decisions without any warm-up time. Automatic light switching and operating time display support efficient inspection processes and maintenance planning.

Robust and durable construction

The housings of the T60+ and P60+ colour inspection booths are made from durable composite materials and a sturdy metal base. The seamless construction prevents light leakage and prevents the light sources from interfering with one another.

The modern design offers:

High stability
Low heat generation
Energy-efficient lighting
Durable materials
Glare-free light distribution
High light stability
Reliable industrial use

Technical specifications

The colour inspection booths feature:

Several standardised light sources
Separate light source control
Automatic light switching
Display of operating time and switching cycles
Flicker-free lighting
Standard-compliant colour assessment
Sturdy metal construction
Large test chamber

External dimensions: 695 × 555 × 500 mm
Internal dimensions: 665 × 490 × 360 mm

Typical applications

The T60+ and P60+ light boxes are suitable for:

Printing industry
Textile and dyeing industry
Paint and coating industry
Plastics processing
Packaging industry
Leather processing
Automotive industry
Ceramics industry
Quality control
Laboratory applications

The standardised lighting conditions enable consistent colour decisions throughout the entire production and supply chain.
