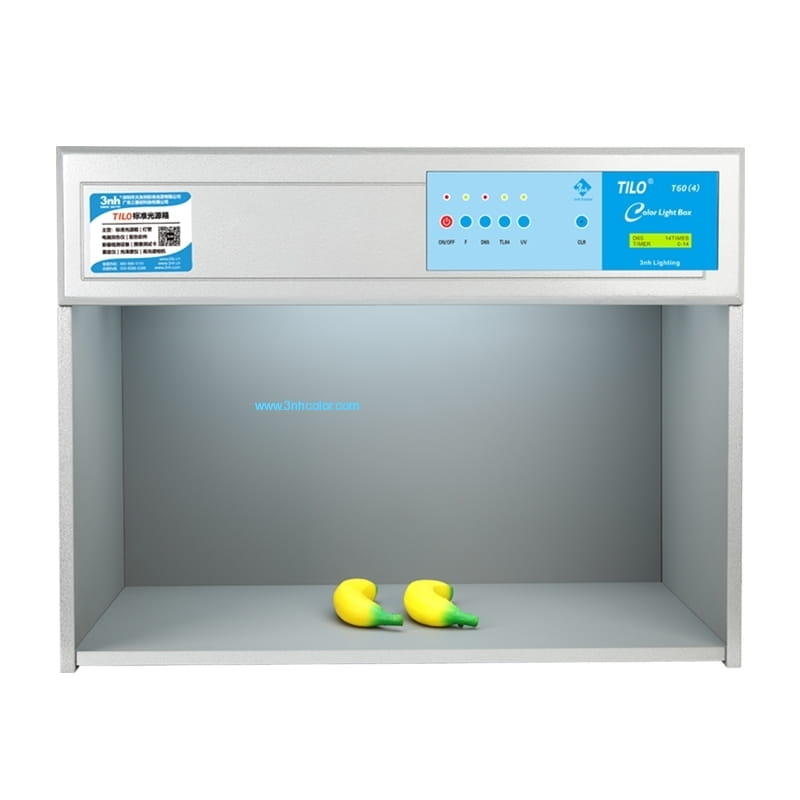

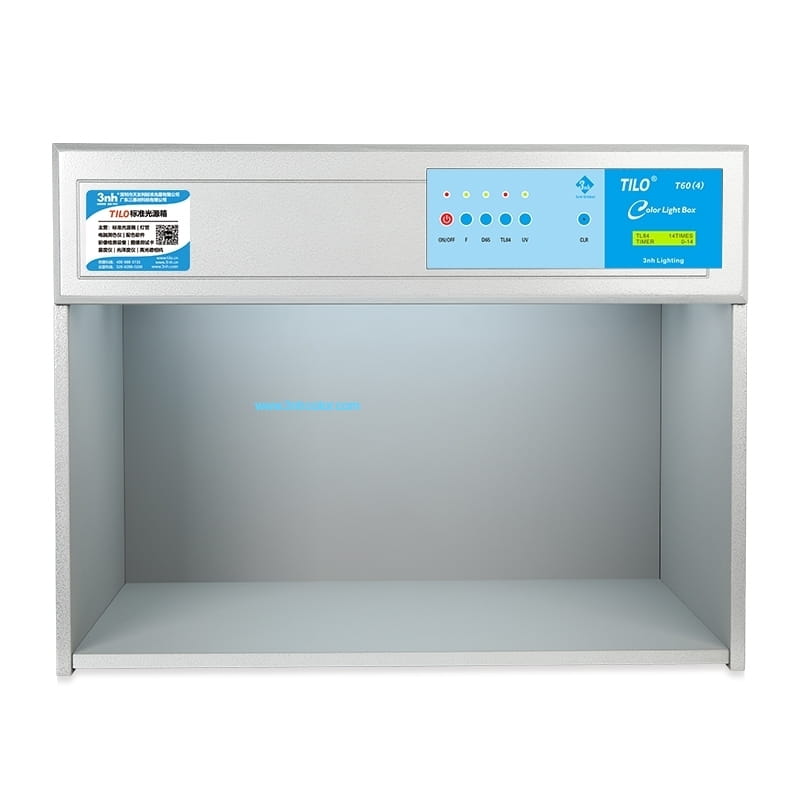

3nh T60(4) colour light cabinet – Light source (number): 4 — D65, TL84, F/A, UV

The T60(4), T60(5) and P60(6) colour inspection booths enable professional, standards-compliant visual colour assessment under standardised lighting conditions. They have been specially developed for precise colour comparisons, metamerism testing and quality control in industry, laboratories and production.

Thanks to several integrated standard illuminants, colour deviations can be reliably detected under different lighting conditions. The devices are ideal for applications in the printing industry, textile production, paint finishing, plastics processing, packaging, the leather industry, the automotive industry, as well as in laboratory and quality control environments.

The models differ mainly in the number of integrated light sources:

T60(4): 4 light sources
T60(5): 5 light sources including CWF
P60(6): 6 light sources including CWF and TL83/U30

Professional standard lighting conditions

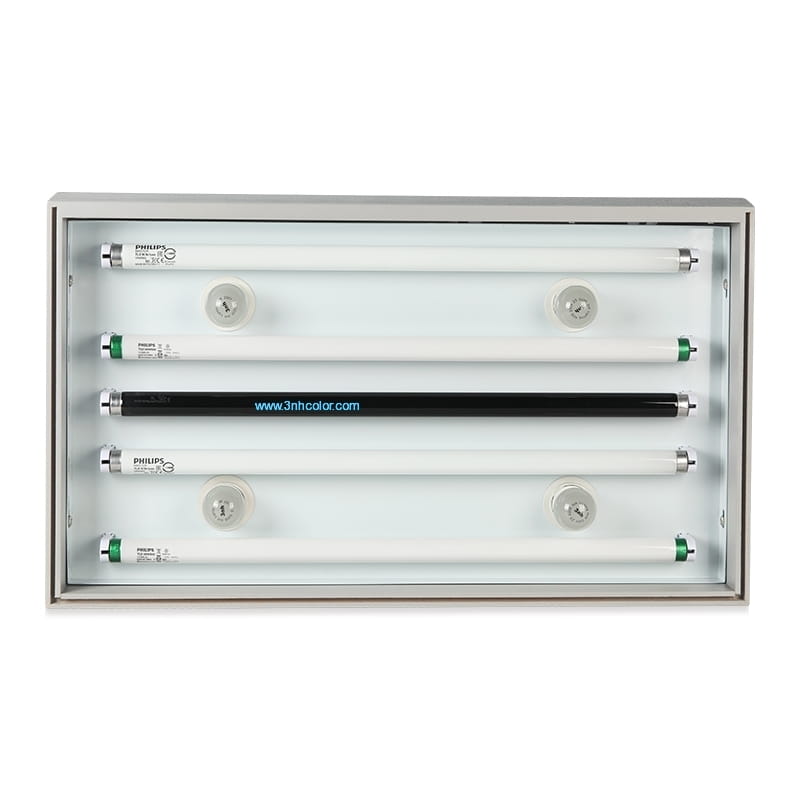

The colour inspection booths support several internationally standardised light types for precise visual colour inspections and metamerism checks:

D65 – Standard daylight
TL84 – Shop lighting Europe/Asia
F/A – Incandescent light / Sunset light
UV – UV light for detecting optical brighteners
CWF – Cool White Fluorescent (for T60(5) and P60(6))
TL83/U30 – Warm white light (P60(6) only)

The light booths comply with numerous international standards such as ASTM D1729, ISO 3664, DIN, ANSI and BSI, and enable reproducible colour decisions under controlled lighting conditions.

Reliable colour inspection and metamerism detection

The various light sources enable colour deviations and metamerism effects to be reliably detected. The booths ensure consistent visual assessments regardless of the time of day or ambient light.

The flicker-free lighting ensures fast and comfortable working without any warm-up time. Separate light source control and automatic light switching support efficient testing procedures and precise quality control.

Robust and energy-efficient design

The sturdy construction of the T60 and P60 series ensures long-lasting and reliable use in everyday industrial applications. The booths offer uniform light distribution with low heat generation and energy-efficient operation.

Further advantages:

High light stability
Low heat generation
Energy-efficient lighting
Long lamp life
Glare-free light distribution
Reliable industrial use
Optional customised dimensions

Technical specifications

The colour inspection booths feature:

Several standardised light sources
Separate light source control
Automatic light switching
Operating hour counter for lamp replacement
Flicker-free lighting
Standard-compliant colour assessment
Large test areas
Robust metal construction

Dimensions T60(4) / T60(5): 710 × 405 × 570 mm
Internal dimensions: 680 × 385 × 355 mm

Dimensions P60(6): 710 × 530 × 570 mm
Internal dimensions: 680 × 515 × 355 mm

Typical applications

The colour inspection booths are ideal for:

Printing industry
Textile and dyeing industry
Paint and coating industry
Plastics processing
Packaging industry
Leather processing
Automotive industry
Ceramics industry
Graphic arts industry
Quality control
Laboratory applications

The standardised lighting conditions enable consistent colour decisions throughout the entire production and supply chain.
