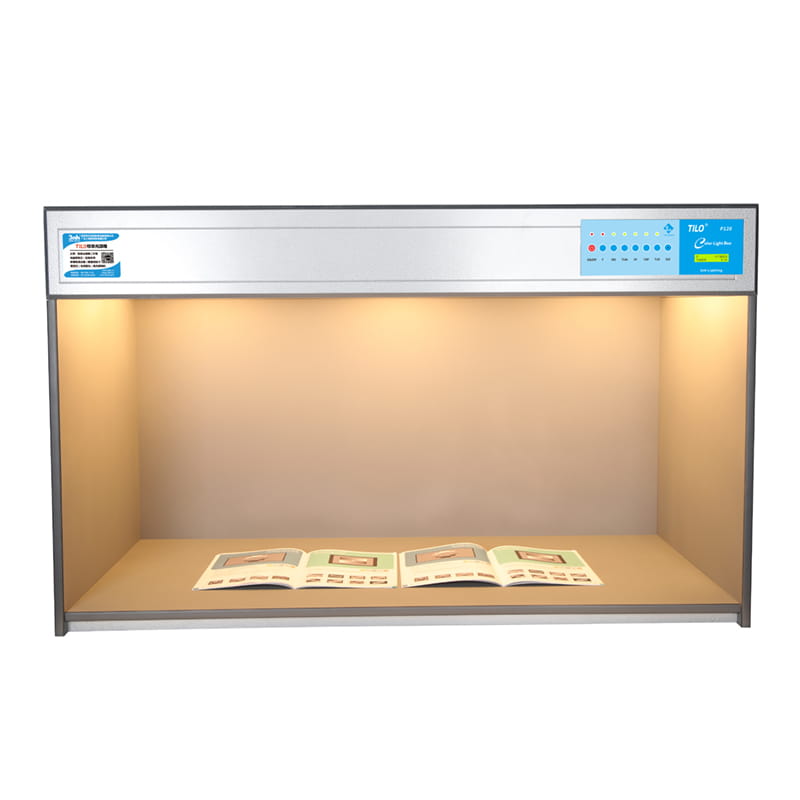

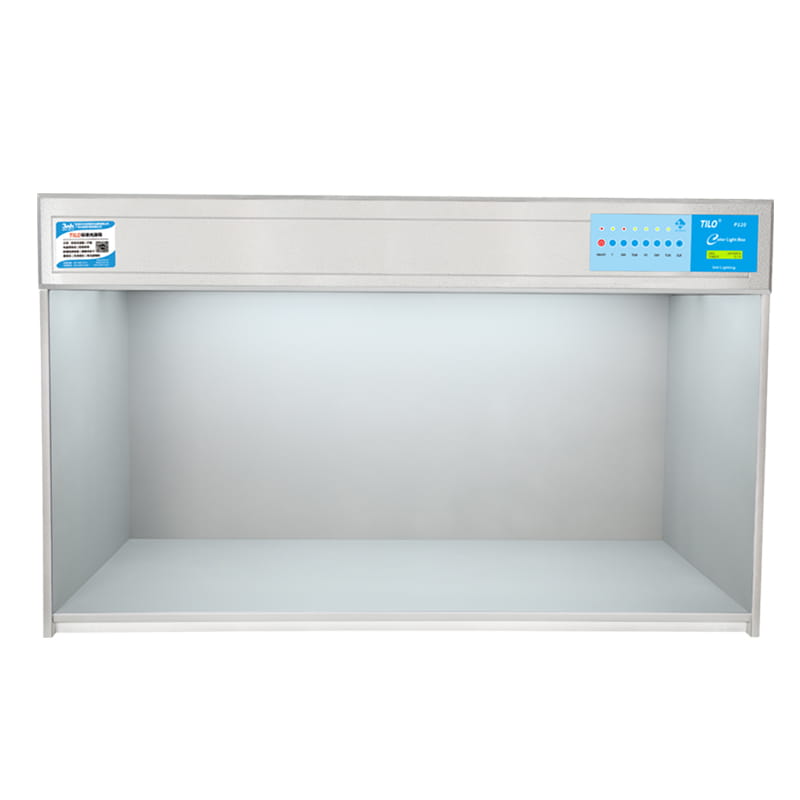

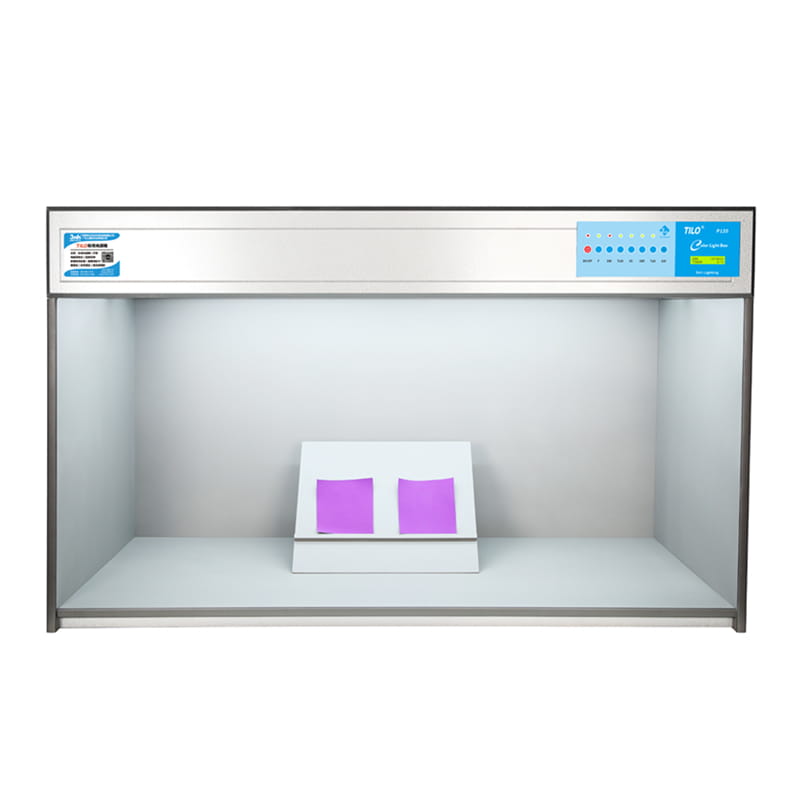

3nh P120 Colour Light Box (Oversized) – Light source (number): 6 — D65, TL84, F/A, UV, CWF, TL83/U30

The P120 Oversize Colour Inspection Booth has been specially developed for professional colour checks on large components, samples and materials. Thanks to its spacious interior and six integrated standard light sources, it enables precise and standard-compliant visual colour assessment under standardised lighting conditions.

The P120 is ideal for industrial quality control, metamerism testing and precise colour comparisons in sectors such as the printing industry, textile production, paint finishing, plastics processing, packaging, the leather industry, the automotive industry and ceramics production.

Six integrated standard light sources

The P120 colour inspection booth features six standardised light sources for professional colour evaluation and reliable metamerism detection:

D65 – Standard daylight
TL84 – Shop lighting Europe/Asia
F/A – Incandescent light / Sunset light
UV – UV light for detecting optical brighteners
CWF – Cool White Fluorescent (US standard)
TL83 – Warm white light

The integrated light types enable realistic colour assessment under various lighting conditions and ensure reproducible quality control throughout the entire production chain.

Spacious interior for large test samples

The P120 has been specially designed for inspecting large-format materials and components. The extra-large interior allows for comfortable working even with large samples, sheets, textiles or vehicle parts.

External dimensions: 1310 × 600 × 800 mm

Internal dimensions: 1280 × 590 × 590 mm

The robust construction and large viewing area create optimal conditions for professional visual colour inspections.

Reliable colour inspection and metamerism control

The standard-compliant lighting enables precise colour decisions under controlled conditions. The ability to switch quickly between light types allows colour deviations and metamerism effects to be reliably detected.

The flicker-free lighting ensures comfortable working without a warm-up time and guarantees fast, reliable colour assessments in daily industrial use.

Modern control system and high user-friendliness

The P120 offers numerous functions for efficient and professional colour checks:

Display of operating hours for each light source
Display of switching cycles
Automatic light switching
Flicker-free lighting
No warm-up time required
High light stability
Energy-efficient operation
Low heat generation
Flexible addition of further light types
User-friendly operation

The light source designations can be customised, allowing the chamber to be flexibly adapted to international test standards and customer-specific requirements.

International standards

The P120 complies with numerous international standards for professional visual colour assessment:

ASTM D1729
ISO 3664
ISO 3668
ISO 13076
ISO 23603
DIN 6173
BS 950 Pt. 2
CIE S025/E
AATCC EP9

This makes the colour testing booth ideal for standard-compliant quality control in international production and supply chains.

Typical applications

The P120 Oversize Colour Testing Booth is particularly suitable for:

Printing industry
Textile and dyeing industry
Paint and coatings industry
Plastics processing
Packaging industry
Leather industry
Automotive industry
Ceramics production
Graphic arts industry
Quality control
Laboratory applications

The P120 offers optimal conditions for precise visual colour inspections, particularly for large-format or bulky test parts.
