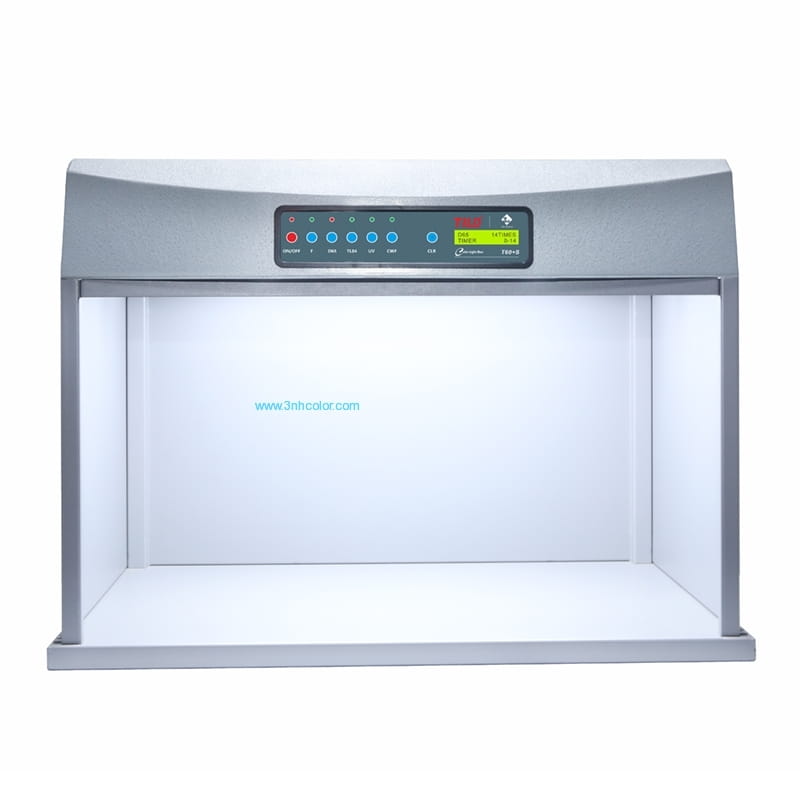

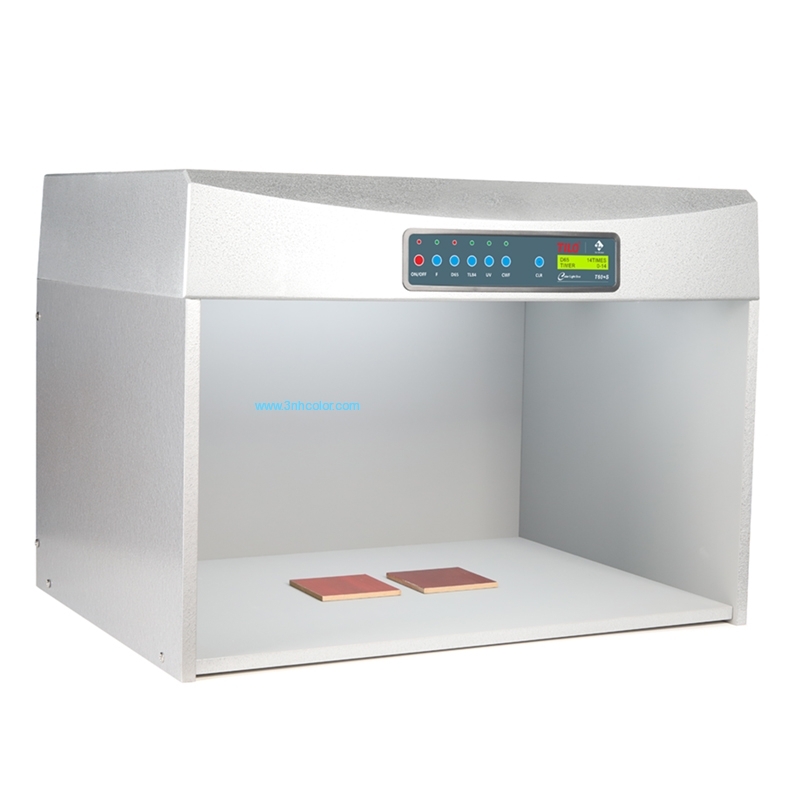

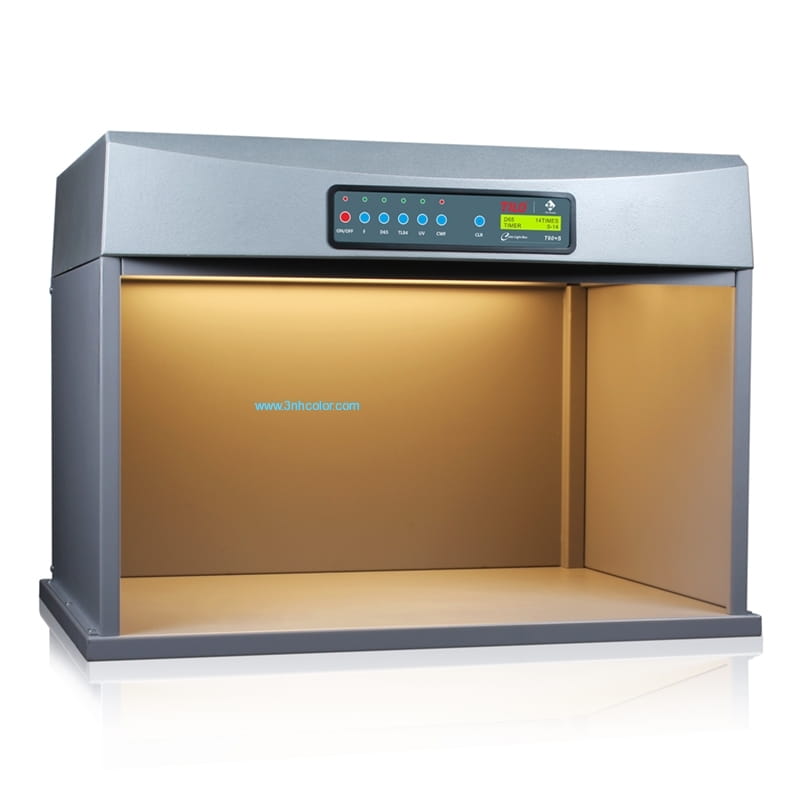

3nh Metal Colour Light Cabinet – Model T60+S – Light source: D65, TL84, F, UV, CWF
€511.70*
Scope of delivery
The T60+S metal colour assessment booth with 5 light sources combines precise visual colour assessment with a particularly robust steel construction. Compared to the standard T60+, the T60+S features a durable metal housing designed for long-term professional use in laboratories, production and quality control.
System & Application
The T60+S simulates various standard-compliant lighting conditions for the objective evaluation of colours and colour deviations. This allows metamerism effects to be reliably identified and reproducible colour decisions to be made.
The colour inspection booth is ideal for applications in the printing, packaging, textile, plastics, leather, coatings, automotive, ceramics and graphics industries.
Light sources
D65 – International standard daylight, 6500 K
TL84 – Retail lighting (Europe/Asia), 4000 K
CWF – Cool white fluorescent light (US standard), 4150 K
F – Warm light / sunset light, 2700 K
UV – UV light for detecting optical brighteners and fluorescent pigments, 365 nm
Standards
The T60+S meets international requirements for visual colour assessment in accordance with, amongst others: ISO 3664, ISO 3668, ISO 13076, ISO 23603, ASTM D1729, DIN 6173, CIE S025/E and BS 950 Pt.2.
Technical specifications
Model: T60+S
Light sources: D65, TL84, UV, F, CWF
Dimensions (W × D × H): 695 × 552 × 502 mm
Internal chamber (W × D × H): 665 × 490 × 360 mm
Voltage: 220 V
Weight: 28.9 kg
Special features
Robust metal housing for high stability and a long service life
High-quality engineering plastics that do not yellow or warp
Seamless construction with no light leakage
Optional anti-glare screen to reduce visual fatigue
Optionally available with rubber feet to protect the work surface
Display of operating time, light source name and switching cycles
Automatic switching between light sources
Flicker-free operation with no warm-up time
Energy-efficient with low heat generation
Optionally expandable with D50, D75, U30, U35 or light type A
- Product number: 2200086
- Manufacturer: 3nh
