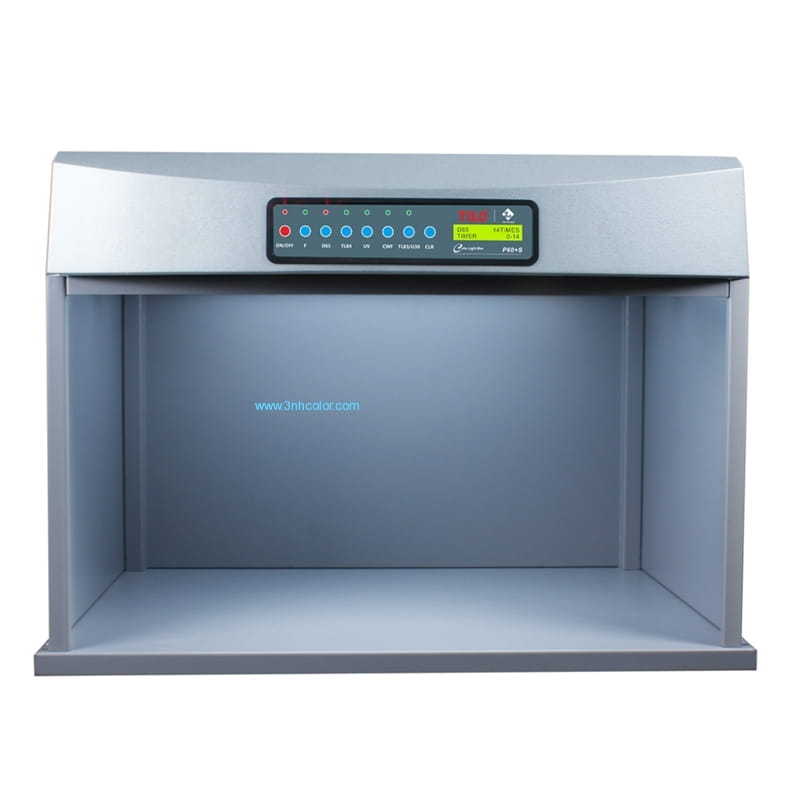

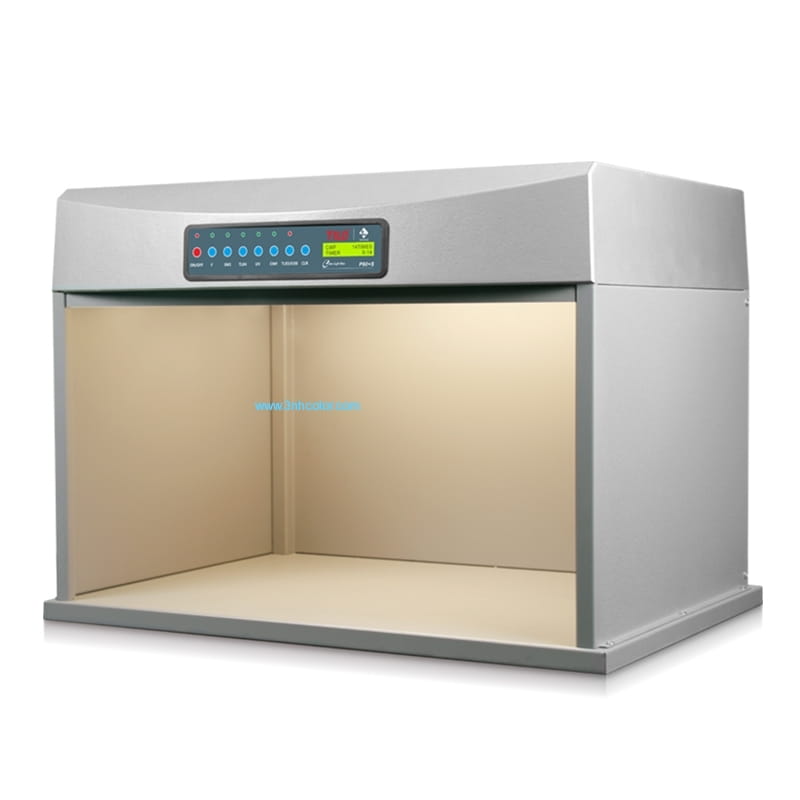

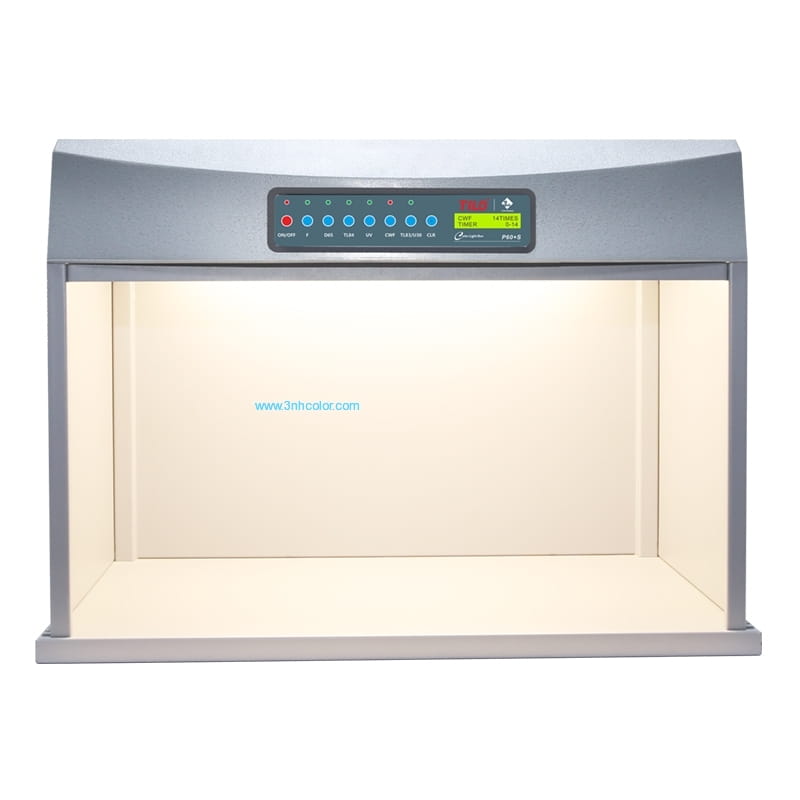

3nh Metal Colour Light Cabinet – Model P60+S – Light source: D65, TL84, F, UV, CWF, TL83

The P60+S metal colour assessment booth with 6 light sources combines precise, standards-compliant colour assessment with a particularly robust steel construction. Compared to the standard P60+, the P60+S features a durable metal housing designed for long-term industrial use in laboratories, production and quality assurance.

System & Application

The P60+S simulates different lighting conditions for the objective evaluation of colours and colour deviations. This enables metamerism effects to be reliably detected and reproducible colour decisions to be made.

The colour inspection booth is ideally suited for applications in the printing, packaging, textile, plastics, leather, coatings, automotive, ceramics and graphics industries.

Light sources

D65 – International standard daylight, 6500 K
TL84 – Retail lighting (Europe/Asia), 4000 K
CWF – Cool white fluorescent light (US standard), 4150 K
TL83 – Warm white retail lighting (Europe), 3000 K
F – Warm light / sunset light, 2700 K
UV – UV light for detecting optical brighteners and fluorescent pigments, 365 nm

Standards

The P60+S meets international requirements for visual colour assessment in accordance with, amongst others: ISO 3664, ISO 3668, ISO 13076, ISO 23603, ASTM D1729, DIN 6173, CIE S025/E and BS 950 Pt.2.

Technical specifications

Model: P60+S
Light sources: D65, TL84, UV, F, CWF, TL83
Dimensions (W × D × H): 695 × 552 × 502 mm
Internal chamber (W × D × H): 665 × 490 × 360 mm
Voltage: 220 V
Weight: 28.9 kg

Special features

Robust metal housing for high stability and a long service life
High-quality engineering plastics that do not yellow or warp
Seamless construction with no light leakage
Optional anti-glare screen to reduce visual fatigue
Optionally available with rubber feet to protect the work surface
Display of operating time, light source name and switching cycles
Automatic switching between light sources
Flicker-free operation with no warm-up time
Energy-efficient with low heat generation
Optionally expandable with D50, D75, U30, U35 or light type A
