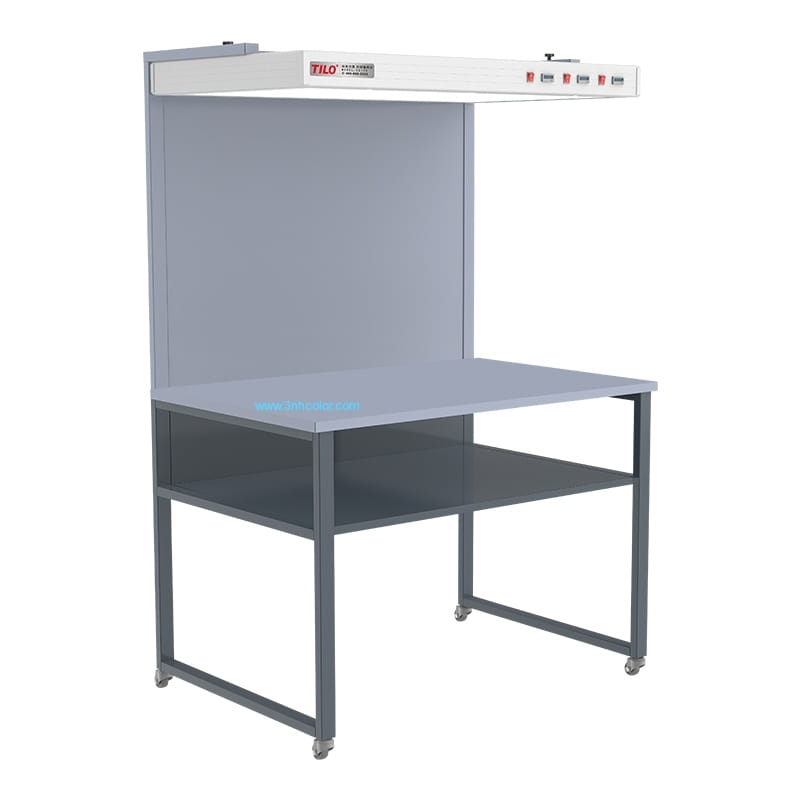

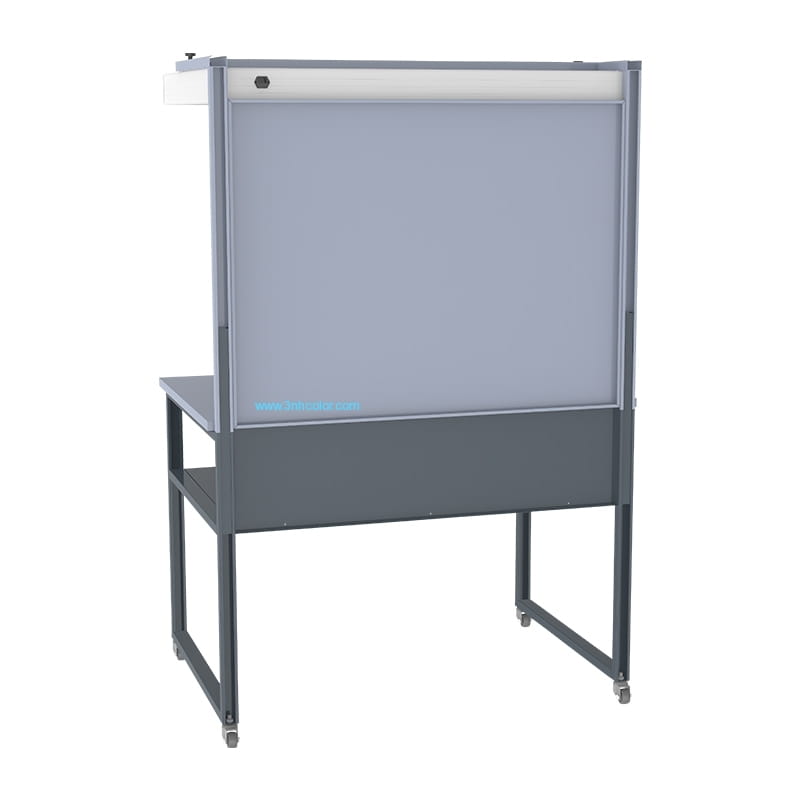

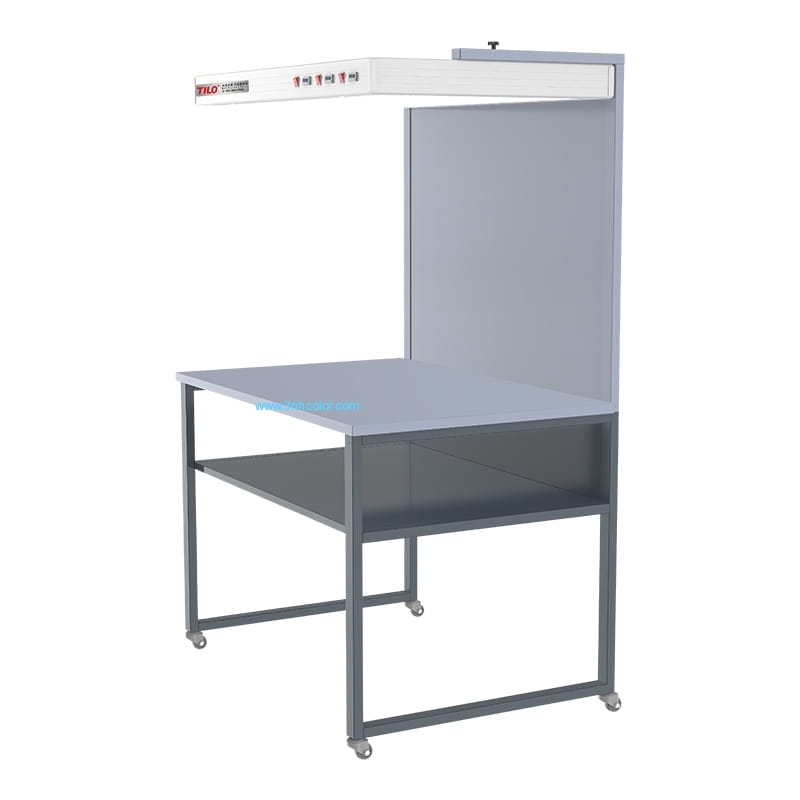

3nh Horizontal Colour Light Table CC120-K-2 (D65 & D50) – Model + Light Source: Horizontal table (similar to Type A) — D65 & D50
€1,105.51*
Scope of delivery
The CC120-K Horizontal Colour Proof Station Light Box has been developed for professional colour checks and proofing applications in the printing industry. The horizontal proofing system enables precise visual assessment of print samples and colour deviations under standardised lighting conditions.
System & Application
The CC120-K simulates various standardised lighting conditions for the objective evaluation of proofs, print samples and reflective originals. Controlled lighting conditions enable colour deviations to be reliably detected and production approvals to be carried out with precision.
The Horizontal Colour Proof Station is ideally suited for applications in offset printing, flexographic printing, gravure printing, as well as in the packaging, graphic design, plastics, textile and quality control industries.
Light sources
D65 – International standard daylight, 6500 K
D50 – Standard light for the printing and graphic arts industry, 5000 K
TL84 – Retail lighting Europe / Asia, 4000 K
Optional: CWF, U30, U35, UV, A
Standards
The CC120-K meets the requirements of ISO 3664:2009 for professional printing and colour management applications and provides standard-compliant viewing conditions for proofing and quality control.
Technical specifications
Model: CC120-K
Light sources: D65, D50, TL84
Colour temperatures: 6500 K / 5000 K / 4000 K
Working area: 1350 × 900 mm
Dimensions: 1350 × 900 × 2174 mm
Weight: 103 kg
Power supply: AC 220 V / 50 Hz
Construction: Robust metal design
Special features
Professional horizontal proofing station for print and colour management
Compliant with ISO 3664:2009 printing standards
3 separately switchable light sources in the overhead lighting system
Uniform illumination for precise colour assessment
Suitable for detecting metamerism and colour deviations
Robust metal construction with a large work surface
Ideal for print shops, proofing centres and quality control
Easy to clean and low-maintenance design
Can be optionally expanded with additional light sources
- Product number: 2200137
- Manufacturer: 3nh
