3nh Colour Light Cabinet – Model T60(4) – Light source: D65, TL84, F, UV
€273.70*
Scope of delivery

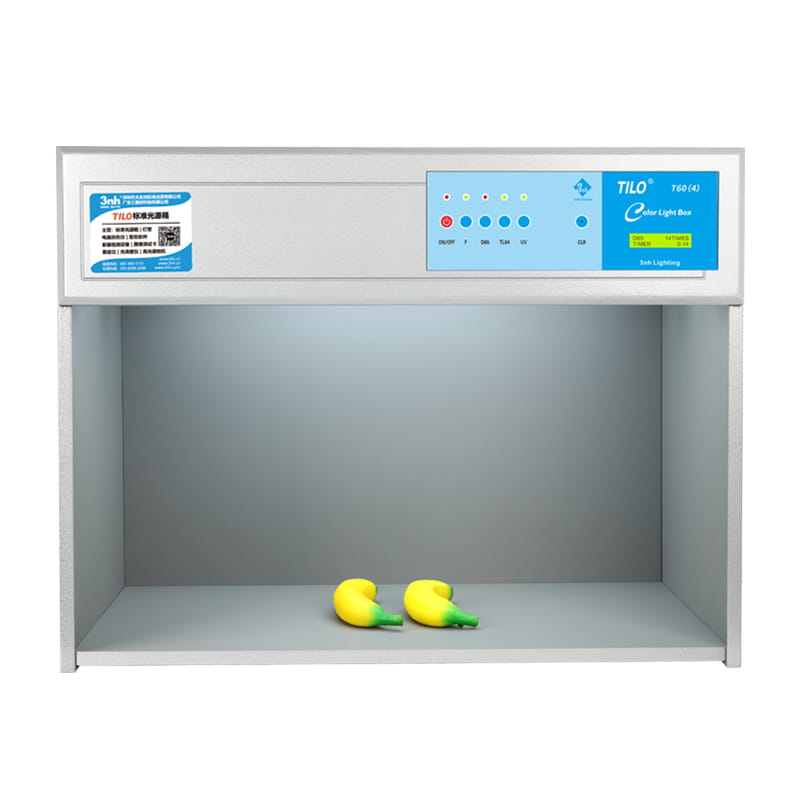

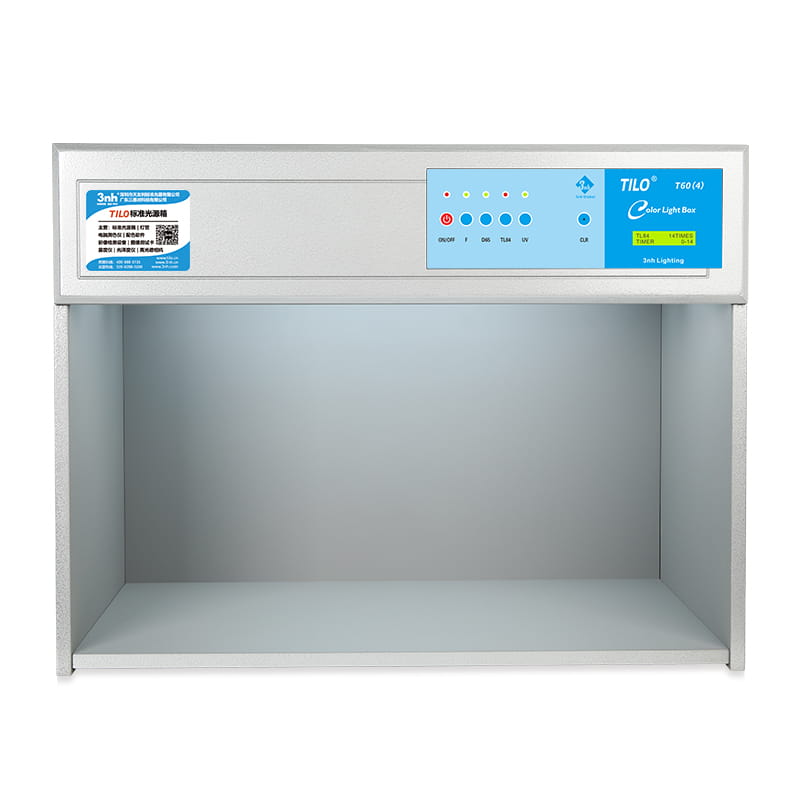

The T60(4) colour inspection booth, featuring four light sources, enables precise visual colour assessment under standardised lighting conditions. By combining multiple light sources, colour deviations and metamerism effects can be reliably detected.
System & Application
The T60(4) simulates various standard-compliant lighting conditions for the objective evaluation of colours and colour differences. The uniform illumination ensures reproducible results in visual quality control.
The colour inspection booth is ideally suited for applications in the printing, packaging, textile, plastics, leather, coatings, automotive, ceramics and graphics industries.

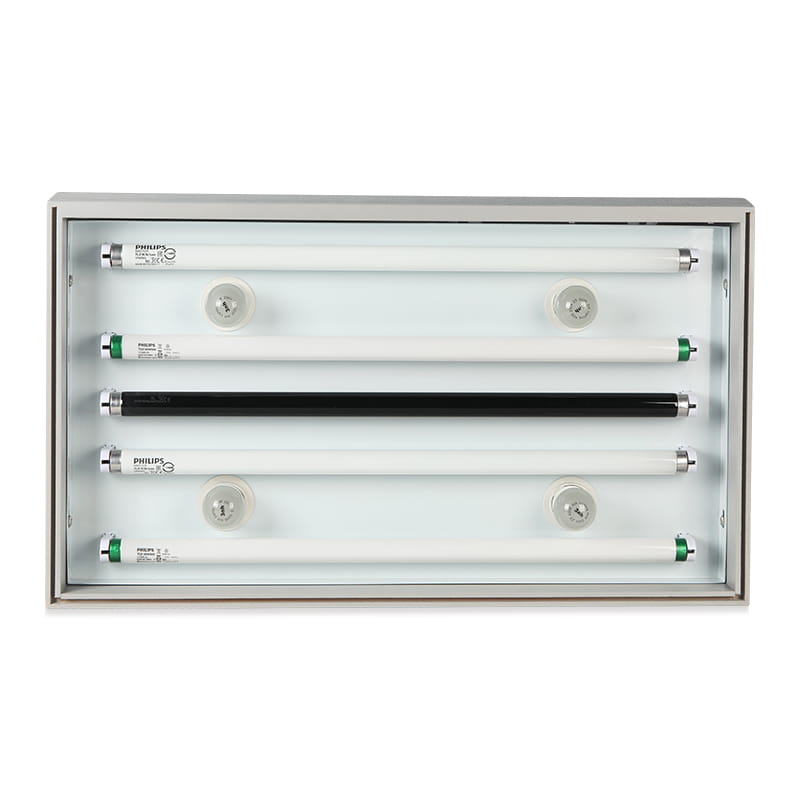

Light sources
D65 – International standard daylight, 6500 K
TL84 – Retail lighting Europe / Asia, 4000 K
F – Warm light / sunset light, 2700 K
UV – UV light for detecting optical brighteners and fluorescent pigments, 365 nm
Standards
The T60(4) meets international requirements for visual colour assessment in accordance with, amongst others: ASTM D1729, ISO 3664, DIN, ANSI and BSI.
Technical specifications
Model: T60(4)
Light sources: D65, TL84, UV, F
Dimensions (W × D × H): 710 × 405 × 570 mm
Internal dimensions (W × D × H): 680 × 385 × 355 mm
Voltage: 220 V
Weight: 28 kg
Special features
4 different light sources for detecting metamerism
Separate switches for each light source
Automatic switching between light types
Operating hours counter to monitor when lamps need changing
Flicker-free operation with no warm-up time
Energy-efficient with low heat generation
Reliable and rapid colour assessment
Optionally expandable with D50, D75, TL83, CWF, U30, U35 or light type A
- Product number: 2200087
- Manufacturer: 3nh
