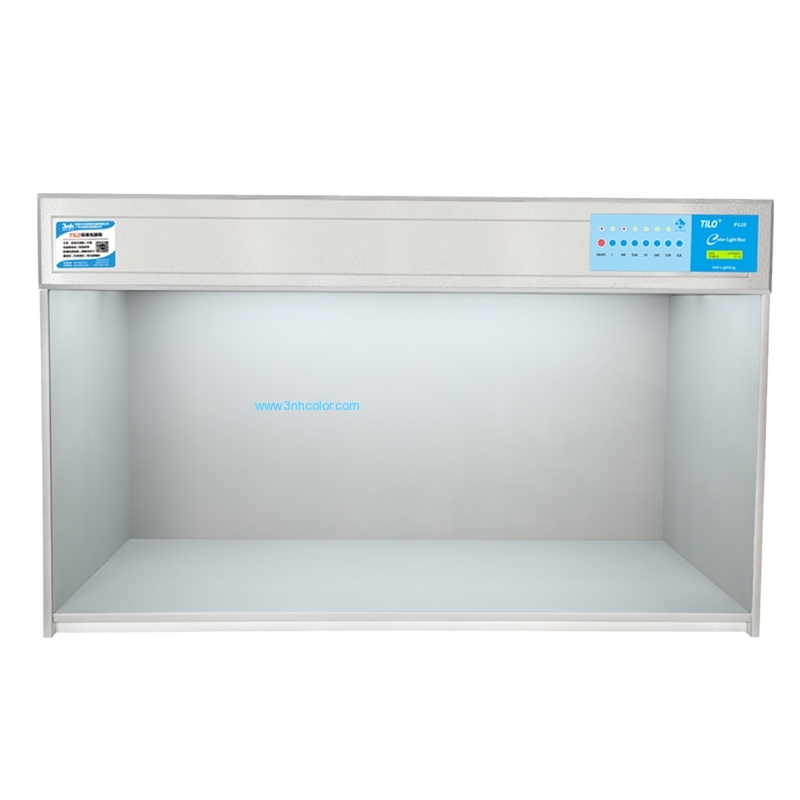

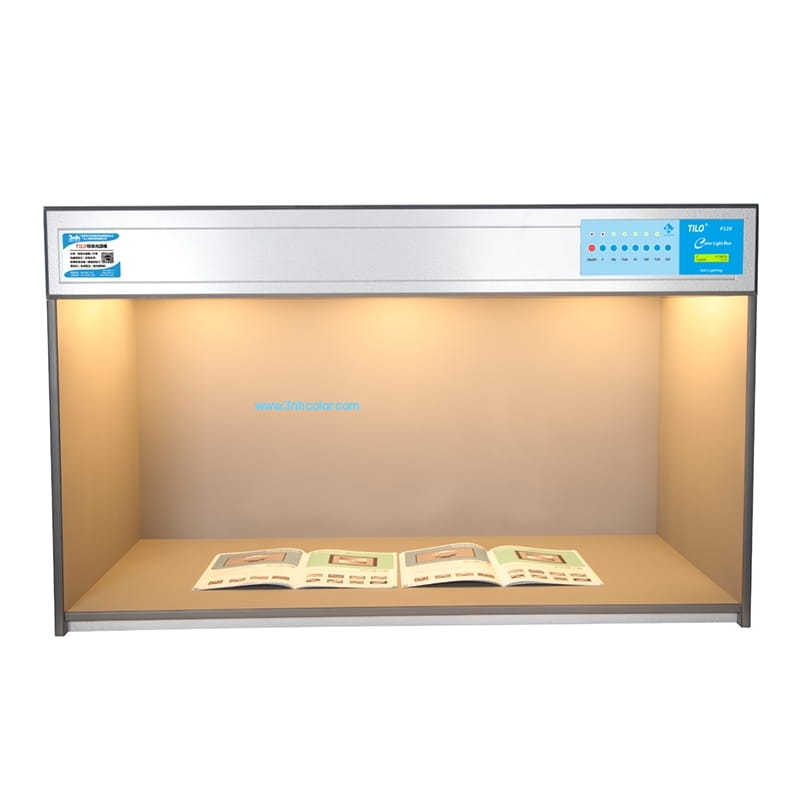

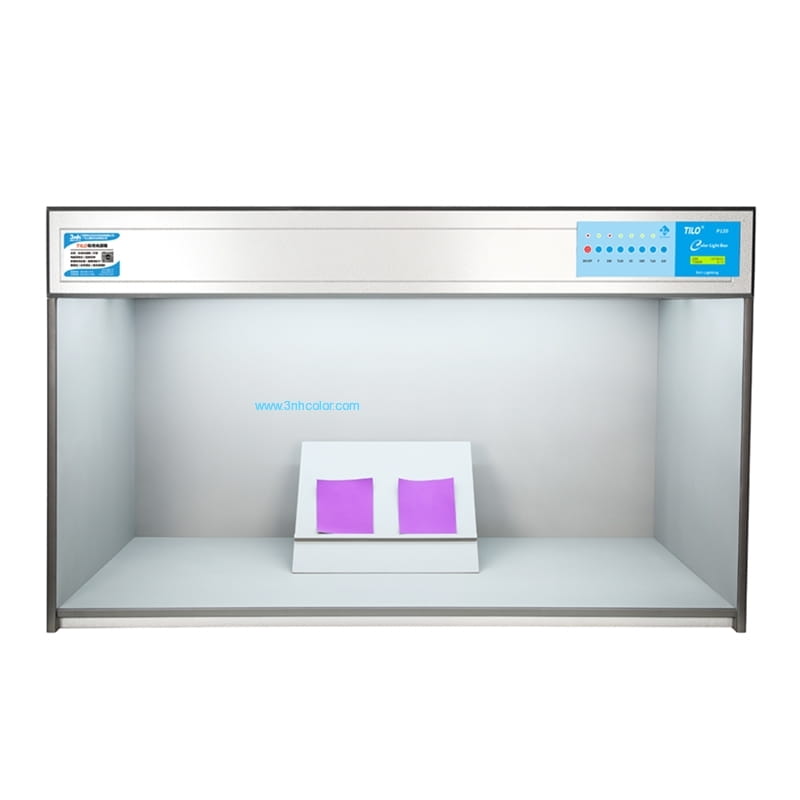

3nh Colour Light Cabinet – Model P120 – Light source: D65, TL84, F, UV, CWF, TL83

The P120 colour inspection booth with 6 light sources has been developed for the professional visual assessment of colour on large samples and components under standardised lighting conditions. By combining several types of light, colour deviations and metamerism effects can be reliably detected.

System & Application

The P120 simulates various standard-compliant lighting conditions for the objective evaluation of colours and colour differences. The spacious interior allows for the convenient inspection of larger products, print samples and materials.

The colour inspection booth is ideally suited for applications in the printing, packaging, textile, plastics, leather, coatings, automotive, ceramics and graphics industries.

Light sources

D65 – International standard daylight, 6500 K
TL84 – Retail lighting (Europe/Asia), 4000 K
CWF – Cool white fluorescent light (US standard), 4150 K
TL83 – Warm white retail lighting (Europe), 3000 K
F – Warm light / sunset light, 2700 K
UV – UV light for detecting optical brighteners and fluorescent pigments, 365 nm

Standards

The P120 meets international requirements for visual colour assessment in accordance with, amongst others: ASTM D1729, ISO 3664, DIN, ANSI and BSI.

Technical specifications

Model: P120
Light sources: D65, TL84, UV, F, CWF, TL83
Dimensions (W × D × H): 1310 × 600 × 800 mm
Internal dimensions (W × D × H): 1280 × 590 × 590 mm
Voltage: 220 V
Weight: 60 kg

Special features

6 different light sources for detecting metamerism
Separate switches for each light source
Automatic switching between light types
Operating hours counter for monitoring lamp replacement
Flicker-free operation with no warm-up time
Energy-efficient with low heat generation
Reliable and rapid colour assessment
Customisable sizes available
Optionally expandable with D50, D75, U30, U35 or light type A
