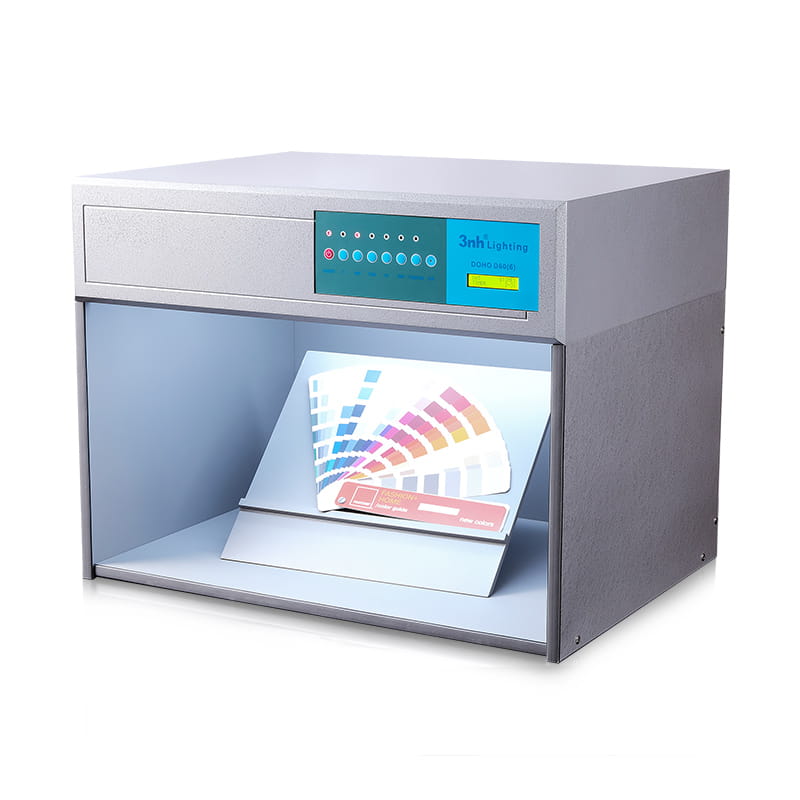

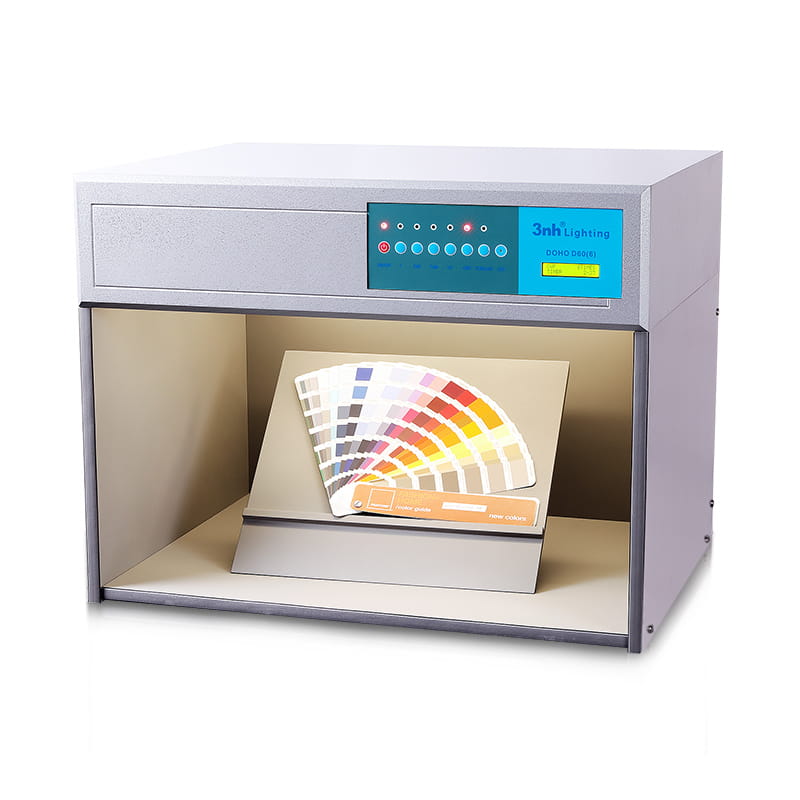

3nh Colour Light Cabinet – Model D60(6) – Light source: D65, TL84, F, UV, CWF, TL83

The DOHO D60(6) colour evaluation booth with 6 light sources has been developed for professional visual colour assessment under standardised lighting conditions. By combining several types of light, the system enables reliable detection of colour deviations and metamerism effects.

System & Application

The D60(6) simulates various standard-compliant lighting conditions for the objective evaluation of colours and colour differences. The uniform illumination ensures reproducible results in laboratories, production and quality control.

The colour inspection booth is ideally suited for applications in the printing, packaging, textile, plastics, leather, coatings, automotive, ceramics and graphics industries.

Light sources

D65 – International standard daylight, 6500 K
TL84 – Retail lighting (Europe/Asia), 4000 K
CWF – Cool white fluorescent light (US standard), 4150 K
TL83 – Warm white fluorescent light, 3000 K
F – Warm light / sunset light, 2700 K
UV – UV light for detecting optical brighteners and fluorescent pigments, 365 nm

Standards

The D60(6) meets international requirements for visual colour evaluation in accordance with, amongst others: ASTM D1729, ISO 3664, DIN, ANSI and BSI.

Technical specifications

Model: D60(6)
Light sources: D65, TL84, F, UV, CWF, TL83
Dimensions (W × D × H): 710 × 530 × 570 mm
Weight: 28 kg
Power supply: 220 V / 50 Hz or 115 V / 60 Hz
Optional accessories: Light diffuser, 45° standard mount

Special features

6 different light sources for precise metamerism detection
Operating time display for optimal lamp replacement monitoring
Separate switches for each light source
Automatic switching between light types
Flicker-free operation with no warm-up time
Energy-efficient with low heat generation
Fast and reliable colour assessment
Customisable sizes available
