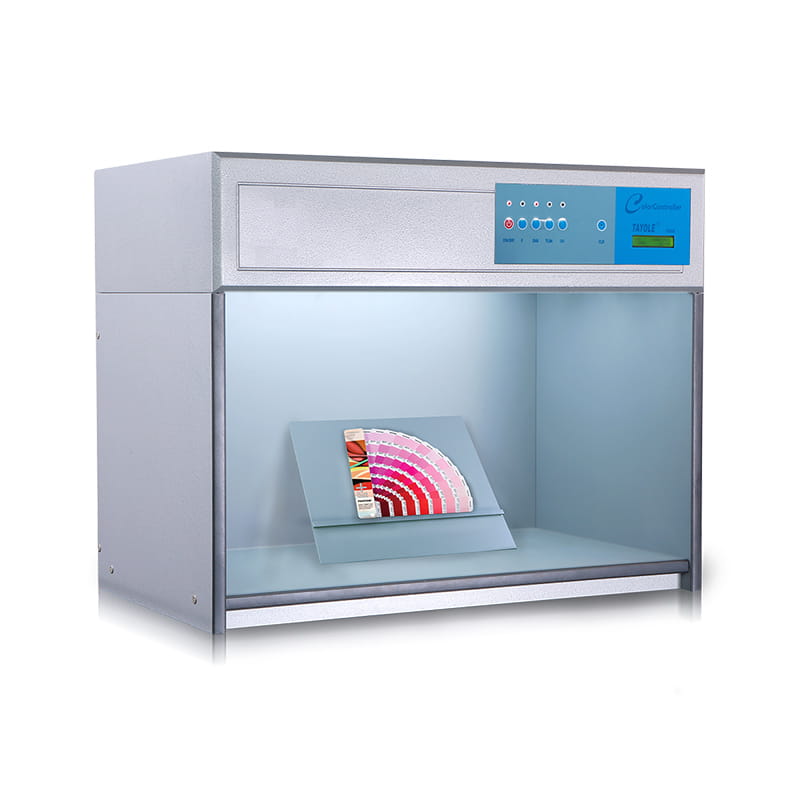

3nh Colour Light Cabinet (British-style) – Model T60B – Light source: D65, TL84, F, UV

The T60B British colour inspection booth with 4 light sources has been specially developed for professional visual colour assessment under standardised lighting conditions. The system is based on the same light source configuration as the well-known VeriVide CAC60 colour inspection booth and offers reliable detection of colour deviations and metamerism effects.

System & Application

The T60B simulates various standardised lighting conditions for the objective evaluation of colours and colour differences. Precise light control enables reproducible results in laboratories, production and quality control.

The colour inspection booth is ideally suited for applications in the printing, packaging, textile, plastics, leather, coatings, automotive, ceramics and graphics industries.

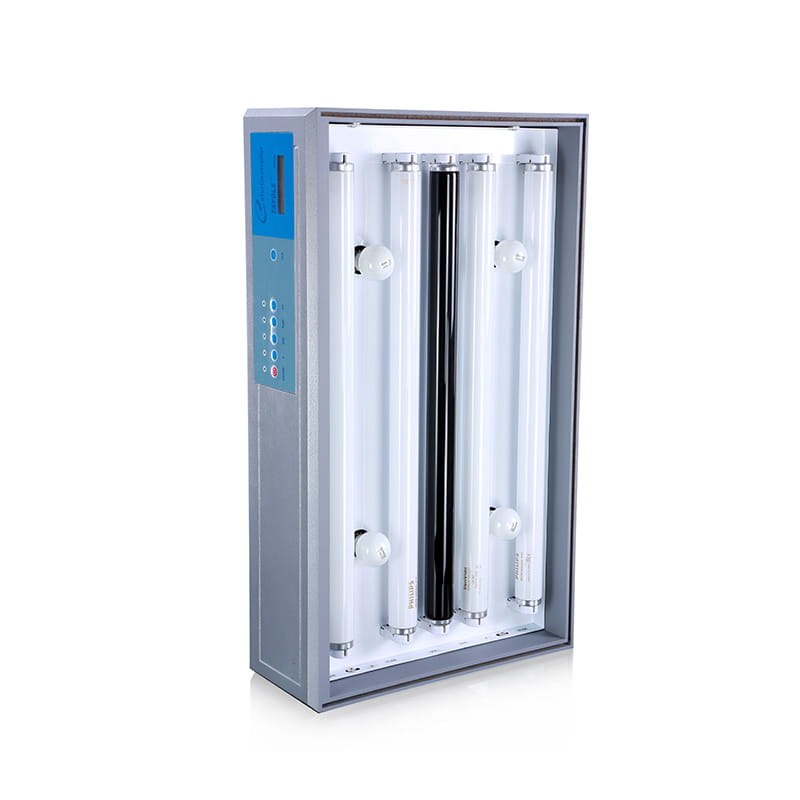

Light sources

D65 – International standard daylight, 6500 K
TL84 – Retail lighting Europe / Asia, 4000 K
F – Warm light / sunset light, 2700 K
UV – UV light for detecting optical brighteners and fluorescent pigments, 365 nm

Standards

The T60B meets international requirements for visual colour assessment in accordance with, amongst others: ISO 3664, ISO 3668, ISO 13076, ISO 23603, ASTM D1729, DIN 6173, CIE S025/E and BS 950 Pt.2.

Technical Specifications

Model: T60B
Light sources: D65, TL84, UV, F
Dimensions (W × D × H): 710 × 405 × 570 mm
Internal chamber (W × D × H): 680 × 385 × 355 mm
Voltage: 220 V
Weight: 28 kg

Special features

Same light source configuration as VeriVide CAC60
Display of operating time, light source name and switching cycles
Automatic switching of light modes for metamerism detection
Flicker-free operation with no warm-up time
Energy-efficient with low heat generation
Original British CAC60 lamps for maximum compatibility
N5 professional grey interior coating to reduce reflections
Reliable and rapid colour assessment
