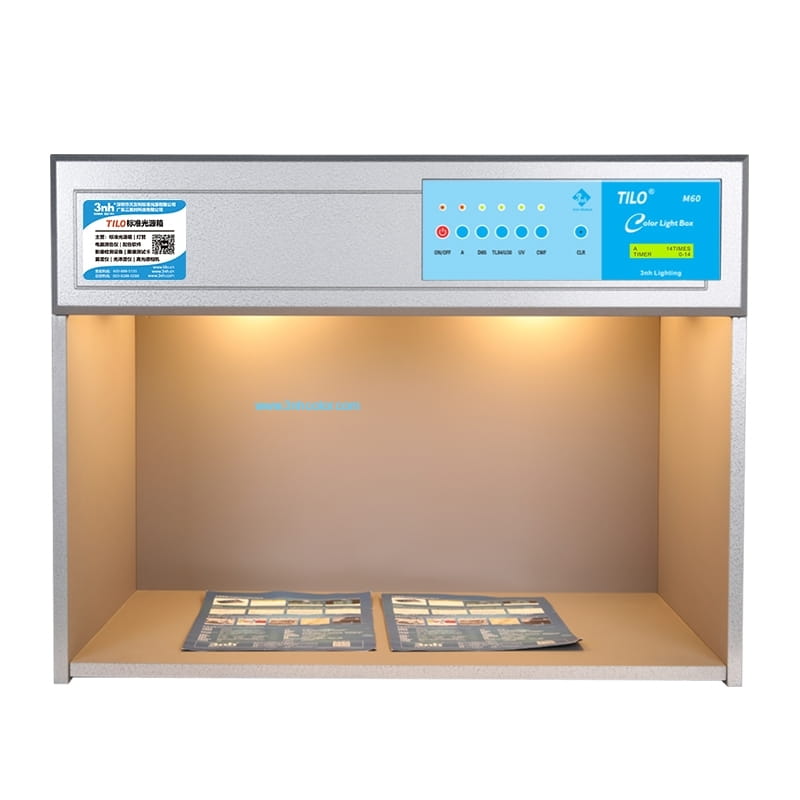

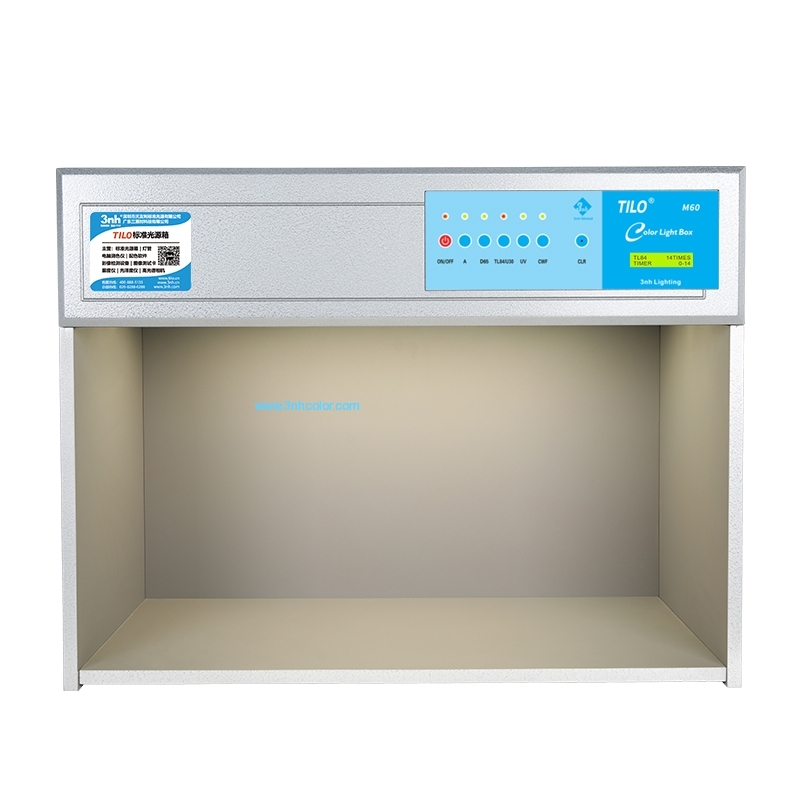

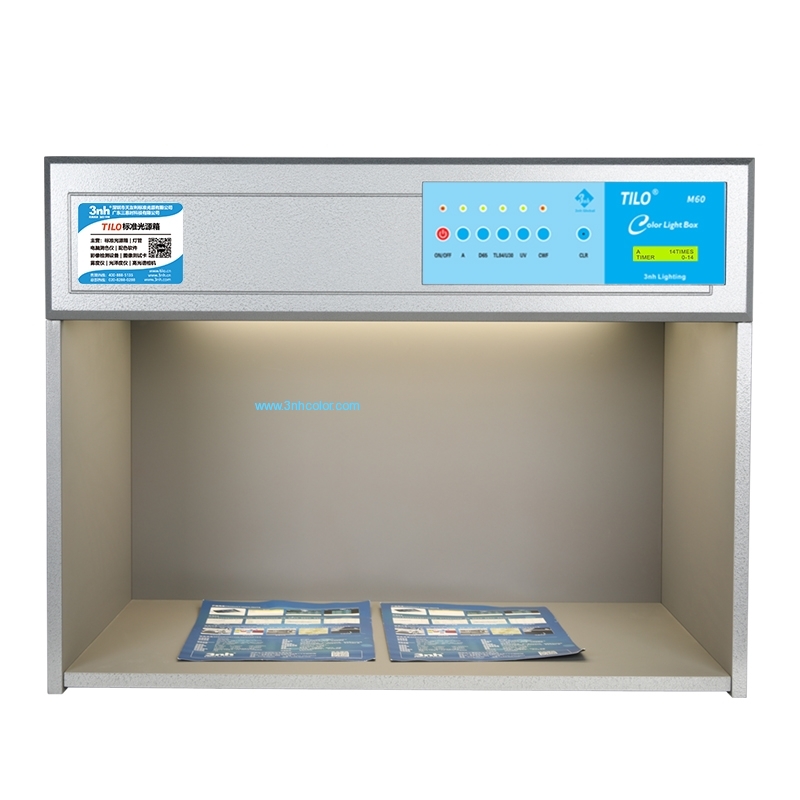

3nh American-style colour light booth – Model M60 – Light source: D65, TL84, A, UV, CWF

The M60 American colour inspection booth, featuring an N7 grey interior and 5 light sources, has been developed for professional visual colour assessment under standardised lighting conditions. The system is based on the configuration of the well-known Judge QC colour inspection booths and enables the reliable detection of colour deviations and metamerism effects.

System & Application

The M60 simulates various standardised lighting conditions for the objective evaluation of colours and colour differences. The professional N7 grey interior minimises reflections and ensures optimal viewing conditions.

The colour inspection booth is ideally suited for applications in the printing, packaging, textile, plastics, leather, coatings, automotive, ceramics and graphics industries.

Light sources

D65 – International standard daylight, 6500 K
TL84 – Retail lighting Europe / Asia, 4000 K
CWF – Cool white fluorescent light (US standard), 4150 K
A – American shop window lighting, 2700 K
UV – UV light for detecting optical brighteners and fluorescent pigments, 365 nm

Standards

The M60 meets international requirements for visual colour assessment in accordance with, amongst others: ISO 3664, ISO 3668, ISO 13076, ISO 23603, ASTM D1729, DIN 6173, CIE S025/E and BS 950 Pt.2.

Technical specifications

Model: M60
Light sources: D65, TL84, UV, A, CWF
Dimensions (W × D × H): 710 × 530 × 570 mm
Internal chamber (W × D × H): 680 × 515 × 355 mm
Voltage: 220 V
Weight: 35 kg

Special features

N7 professional grey interior coating to reduce reflections
Configuration comparable to Judge QC colour inspection booths
Display of operating time, light source name and switching cycles
Automatic switching between light types for metamerism detection
Flicker-free operation with no warm-up time
Energy-efficient with low heat generation
Optional accessories: light diffuser and 45° standard mount
Reliable and rapid colour assessment
