DeVilbiss DV1 Clearcoat: The Tool for Perfect Clear Coat Applications
The demands on clear coat applications are constantly increasing: a crystal-clear, mirror-like finish with the highest gloss level (DOI) is the goal. The DV1 Clearcoat spray gun from DeVilbiss was developed specifically for this task. In this practical guide, you will learn how to achieve top results with this tool, save time and material, and optimize your workflow.
Product Overview & Advantages in Comparison

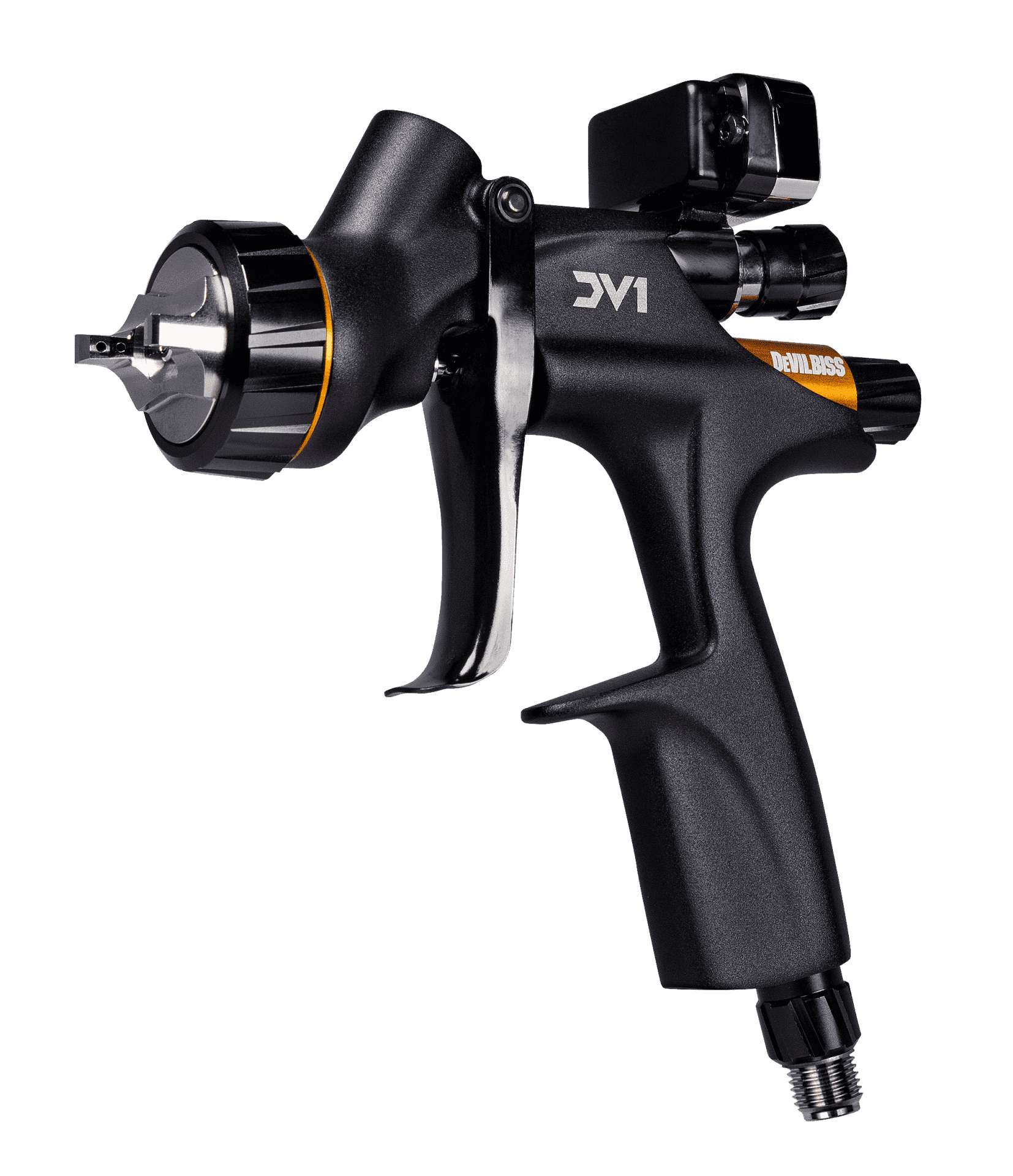

The DV1 Clearcoat is the specialized sister of the well-known DV1 Basecoat gun and part of the revolutionary DV1 platform. Its centerpiece is the newly developed DVI-C1 PLUS Clearcoat air cap.
| Feature | Practical Advantage |
|---|---|
| Optimized air/material management | Delivers a homogeneous, full-surface spray film for a pore-free, glass-like finish – ideal for high-solid, low-VOC, and all common clear coats. |
| Silent-action trigger & ergonomic body | Reduces fatigue, offers precise control, and provides a soft, play-free trigger feel for consistent results. |
| Integrated digital pressure gauge | Real-time monitoring of inlet pressure at eye level for reproducible, optimal settings. |
| Improved spray pattern control | Sharp edges, flat sides, and even distribution minimize overlaps and work passes. |
+20% Efficiency
Higher application speed at lower pressure significantly increases productivity.
Up to 15% material savings
Superior atomization and high transfer efficiency reduce overspray and rework.
Perfect gloss (DOI)
Uniform, fine particles create a mirror-like, brilliant finish with excellent image clarity.
Ready for the perfect clear coat application?
See for yourself the precision and performance of the DeVilbiss DV1 Clearcoat spray gun.
Buy DV1 Clearcoat now at beschicht.comView all spray guns
Recommended Base Settings (Guideline Values)
The following values are based on the manufacturer’s technical data and serve as an optimal starting point. Adjust them according to paint manufacturer, viscosity, and ambient conditions.
| Parameter | Guideline Value | Note |
|---|---|---|
| Inlet pressure (at gauge) | 1.5 bar / 22 psi | For DVI-C1 PLUS air cap. Set before testing. |
| Material flow | 140 – 190 g/min | Varies depending on nozzle size (1.0 – 1.4 mm). |
| Air consumption | ~285 l/min | Ensure your compressor can supply this volume. |
| Fan height (at 20 cm distance) | ~325 mm / 12.8 inches | Ideal, flat oval for efficient coverage. |
Professional Workflow in 7 Steps
- Preparation: Adjust paint viscosity according to manufacturer specifications, filter well, and stir thoroughly. Prepare the workspace and workpiece dust-free.
- Gun setup: Install the appropriate nozzle/needle (e.g. 1.3 for standard clear coat). Regulate pressure at the main filter to 1.5 bar (at the gun gauge).
- Test spray pattern: Spray onto a test panel. The spray pattern should show an oval, homogeneous shape with sharp edges. Fine-tune material and fan air.
- Application technique: Maintain a constant distance of 15–20 cm and move the gun parallel to the surface at a consistent speed.
- Overlap: Use the sharp spray pattern and overlap each pass by approximately 50%. This creates an even, pore-free layer.
- Layer build-up: Apply 2–3 wet, glossy coats. Ensure sufficient but not excessive flash-off times between coats.
- Final inspection: Check the finish under grazing light for runs, dust, or orange peel. The DV1 Clearcoat minimizes such defects.
Quick Troubleshooting
| Problem | Possible Solution |
|---|---|
| Irregular / torn spray pattern | 1) Check air cap/nozzle for contamination and clean. 2) Check inlet pressure (guideline: 1.5 bar). 3) Increase material pressure/flow. |
| Excessive material consumption / overspray | 1) Reduce material flow (adjustment knob). 2) Reduce working distance to 15–20 cm. 3) Adjust spray width (fan air) if necessary. |
| Runs or visible passes | 1) Use a more consistent movement speed. 2) Maintain constant distance. 3) Slightly increase viscosity if necessary (if too thin). |
| Low gloss performance (DOI) | 1) Slightly increase material flow for better leveling. 2) Ensure sufficient wet film thickness. 3> Check air pressure and air quality at the compressor. |
Maintenance for Longevity
- Immediate cleaning: Flush the gun immediately after each use with a suitable solvent. The quick-release air cap makes access easy.
- Seal maintenance: Regularly check needle packing and O-rings for wear. Use original service kits (e.g. No. 704430 / 704431).
- Air cap & nozzle: Place these components in a cleaning bath; do not scratch with metal tools. Ensure precise seating.
- External filter: Regularly drain and maintain the main air filter upstream of the gun. This prevents water/dirt from entering the DV1.
- Dry storage: Store the gun completely cleaned and disassembled in a dust-free, dry place.
Frequently Asked Questions (FAQ)
According to the manufacturer, it is optimized specifically for the full range of modern clear coats: high-solid, low-to-medium-solid, and low-solvent (low-VOC) clear coats.
The most common sizes for clear coat are 1.2 mm, 1.3 mm, and 1.4 mm. For thinner low-VOC paints, 1.2 mm may be sufficient; for high-solid paints, 1.3 / 1.4 mm is often used. The matching needle is included in each set.
In North America, no cup is included in the kit. In other regions, a gravity cup (plastic or aluminum, e.g. GFC-501) may be included. Please check the exact order number.
It is specifically optimized for clear coat. For basecoat, the DV1 Basecoat gun is recommended, as its air cap and nozzle set are designed for metallic and solid color application.
Thanks to the optimized design and efficient atomization, the DV1 Clearcoat operates more quietly than many conventional HVLP guns (“soft-spraying gun”), increasing user comfort.
Conclusion
The DeVilbiss DV1 Clearcoat spray gun is not a generic tool, but a specialized solution for demanding clear coat applications. Thanks to its technology tailored to high-end clear coats – led by the DVI-C1 PLUS air cap – it delivers consistently brilliant results, saves material and time, and makes application more comfortable through its ergonomics. For any professional who values a perfect, mirror-like finish with a high gloss level, this gun is a worthwhile investment in quality and efficiency.
